Our continuous waste plastic pyrolysis plant can continuously process plastic into crude oil and carbon blacks without stop. All the continuous waste plastic pyrolysis plant is controlled by PLC(programmable logic controller), so it is very easy to operate it and our customers can save much cost of time and labor.
For our continuous waste plastic pyrolysis plant,the applicable raw materials can be polythene,polypropylene,polystyrene,ABS...

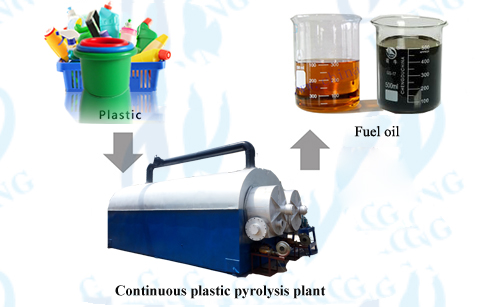

The final products from plastics continuous pyrolysis process will be fuel oil and carbon black.

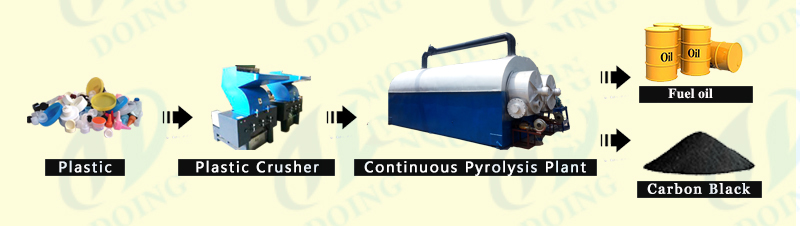

Feedstock & product of continuous waste plastic pyrolysis plant
2.Our feeding door is with screw inside, so it can help you easily convey the plastic granules into our reactor No 1, then all the plastic can be decomposed under the high temperature through reactor No 1 to reactor No 2,then to reactor No 3...Until all the plastic fully pyrolysed, then all the carbon black powder will be discharged automatically to the carbon black tank.
3. All the available oil gas will be cooled by circulation water and the extra pyrolysis gas will be recycled through pipes into the burners for heating again. In our continuous waste plastic pyrolysis plant,the water circulation system and extra pyrolysis gas recycling system will help you save much fuel and water resource,in this way, so our plastic continuous pyrolysis plant can minimize your cost and maximize your profits.
1: Fully automatic with low labour cost
Our conitnuous waste plastics pyrolysis plant is controlled by PLC system with automatic feeding and discharge system, which only need 1-2 worker for operating the PLC or computer.
2:Fully pyrolysis for high oil output
Our continuous waste plastics pyrolysis plant adapts to multiple reactor design which can make fully pyrolysis of waste plastics, thus to get high oil output.
Also due to continuous feeding and discharge system, and unique multiple reactor design, our fully automatic continuous waste plastics pyrolysis plant can process at least 10 tons waste plastics per day, up to 100T/D.
4: Internal rotating for continuous operation
For external rotating system, you have to change the sealing material every three days, thus cannot achieve the real sense of continuous process. But our continuous waste plastics pyrolysis reactor adapts internal rotating method, which no need to worry about the sealing of the external rotating system.
Continuous working save time and energy
5:Long working life
During the continuous pyrolysis process, reactor is heated by indirect hot air heating, which will not damage reactor so much, thus to keep long usage life of the reactor.
|5||Reactor deisgn||Mutiple reactors (The quantity and size depends on the raw material condition)|
|7||Cooling system||Recycled waster cooling|
|8||Reactor material||Q245R/Q345R boiler plate|
|9||Heating method||Indireact hot air heating|
|10||Heating fuel||Fuel oil/gas|
|12||Output||Fuel oil, carbon black|
