Copper wire granulator machine

Copper wire recycling machine

Copper wire granulator machine of Doing is to separated waste copper wire to re cycle copper and plastic particles .The separator of the copper wire grnaulator machine is suitable for processing all kinds of cables. It can separate copper from plastic effectively by crushing, vibrating screening separation and vibration separation so as to achieve comprehensive utilization. It features good cost effectiveness, dust-free producing progress and second pollution-free property. ibrating screening separation and vibration separation so as to achieve comprehensive utilization. It features good cost effectiveness, dust-free producing progress and second pollution-free property.

• Ms. Bonnie Zhao
• +86-371-5677 1821
• +86 158 9380 0169
• Skype:bonniezhao2
• oilmachine@doinggroup.com

• Features
• Technical Data
• Application

Copper wire granulator machine

Copper wire granulator machine

Copper wire granulator machine of Doing is to separated  waste copper wire to re cycle copper and plastic particles .The separator of the copper wire grnaulator machine is suitable for processing all kinds of cables. It can separate copper from plastic effectively by crushing, vibrating screening separation and vibration separation so as to achieve comprehensive utilization. It features good cost effectiveness, dust-free producing progress and second pollution-free property.

Copper wire granulator machine tech data

Model	Voltage	Power	Capacity	Dimension	Weight
DYTM-400	380V	22.45 kw	150-200kg/H	2700*1900*2300(mm)	1200kg
DYTM-600	380V	36 kw	300-400kg/H	3500*1900*2700(mm)	3000kg
DYTM-800	380V	75 kw	500-600kg/H	5500*4500*3300(mm)	8000k

Copper wire granulator machine working principle
Our copper wire granulator machien is mainly used to make the double recycling use of metals and plastics from scrap cables and wires.
The general process is as below:

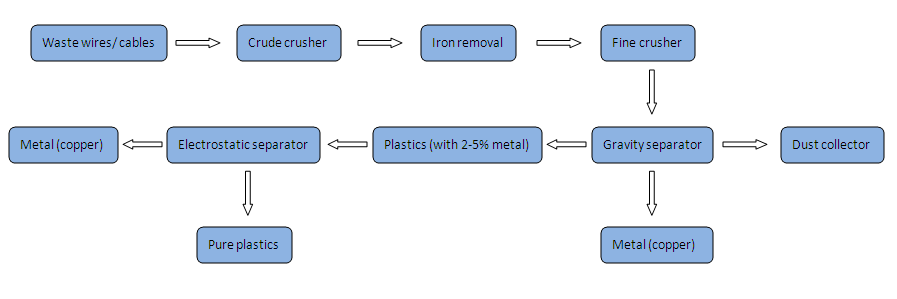

Copper wire granulator machine working process
