Waste tyre oil to diesel oil plant

Oil Refining Machine

To convert tyre oil to diesel, out plant has applied one kind of advanced technology called distillation or refining. With this technology, the plant can effectively remove the particles, colloidal matter, acid and odour from tyre oil by acid-treatment and filtration. Finally we can get diesel oil with clean and transparent color and qualified smell

Chat Online Leave A Message

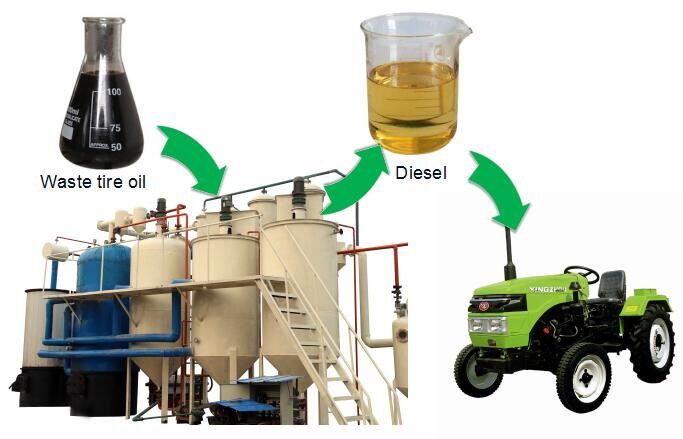

tyre to diesel fuel
Waste tyre oil to diesel oil plant
Generally, the tyre oil from waste tyres can’t be directly used in engines and generators. So we need to use Waste tyre oil to diesel oil plant to convert tyre oil into diesel, which has more applications and higher price.

To convert tyre oil to diesel, out plant has applied one kind of advanced technology called distillation or refining. With this technology, the plant can effectively remove the particles, colloidal matter, acid and odour from tyre oil by acid-treatment and filtration. Finally we can get diesel oil with clean and transparent color and qualified smell.


crude oil to diesel distillation machine

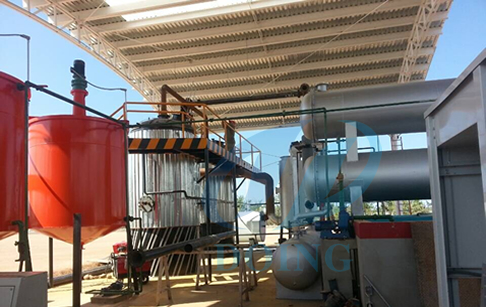

Waste tyre oil to diesel oil plant

Waste tyre oil to diesel oil plant process:

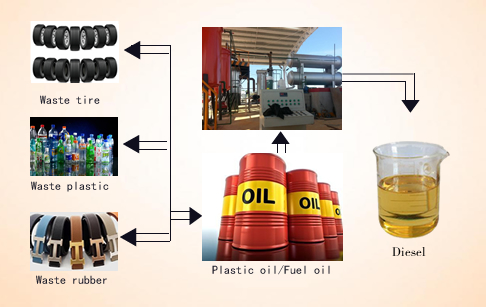

waste tyre to diesel

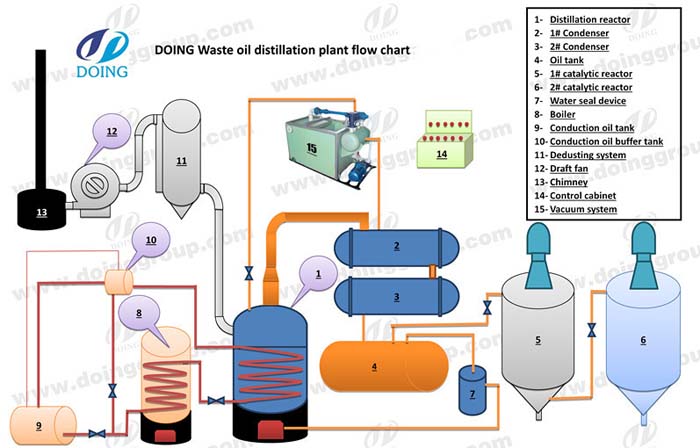

Waste tyre oil to diesel oil plant working process
1. Pump the waste oil into reactor by oil pump.
2. Use coal/wood/natural gas/fuel oil/electricity heating the reactor.
3. After heating some time, the liquid oil will become oil gas, oil gas will be liquefied by the cooling pipe and condensers then will go into oil tank. Here we get mixed oil, or u can also call it fuel oil. If you wanna get a different quality diesel separately, through temperature control could separate it and collected into two different oil tanks.
4. Some gases (syngas) like Methane, Ethane, Propane, Butane, and Hydrogen cannot be liquefied under normal pressure and normal temperature will be recycled to fire furnace heating the reactor.
5. When use burning material heating the reactor, will produce some smoke. These smokes will go into our de-dusting system, the inside we design some high pressure nozzles, these nozzles will spraying some chemical water, the dust will be absorbed by the chemical water and flowing into the de-dusting pool. In the pool we will put some chemical which could remove the sulfur.
6. The exhaust gas will go into the chimney sucked by draft fan, when emission the exhaust gas will become steam, no pollution.
Technical parameter of waste tyre oil to diesel oil plant
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material  waste tire oil, plastic oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡

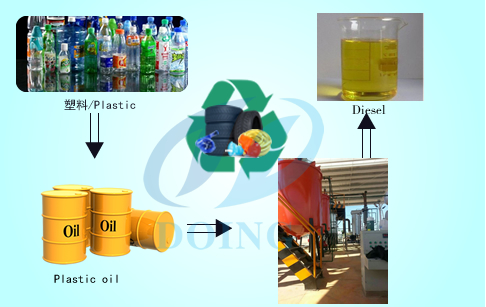

waste tyre oil  to diesel
 Diesel oil application

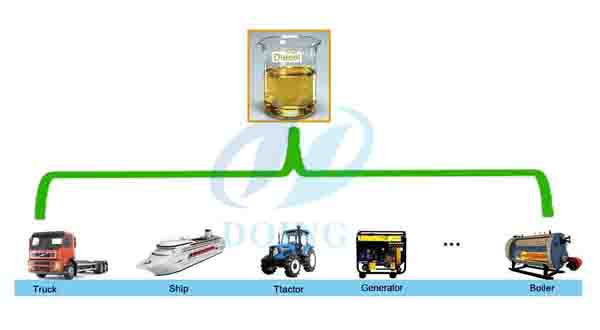

Waste tyre oil to diesel oil plant can purify waste tire oil, plastic oil; waste engine oil to diesel, the final product-diesel can be used for tractors, trucks, and diesel oil generators, ships etc.
