Plastic oil to diesel process machine
Plastic products has been used widely, and waste plastic can be seen everywhere. It has seriously affected our environment on two aspects, such as visual pollution and potential hazards. Visual pollution means that aesthetic perception on living city affected by scrap plastic in everywhere. Potential hazards mainly refers to degradation-resistant of waste plastic affecting on absorbing of nutrients and water by crop, reducing the production; and otherwise, animals will be die if eats it unconscious. Recycling and utilization of waste plastic is increasingly becoming an important aspect for environmental protection. Waste plastic pyrolysis plant has supplied a new solution on disposal of waste plastic.

Plastic oil to diesel process machine

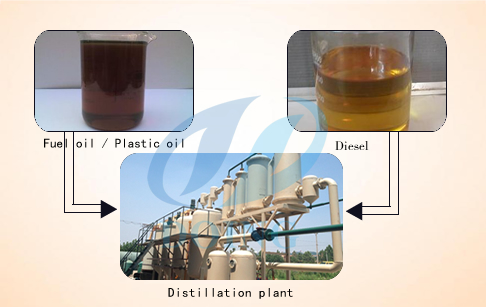

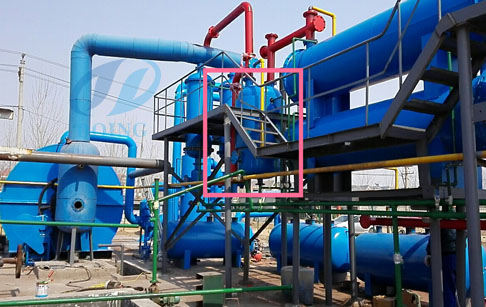

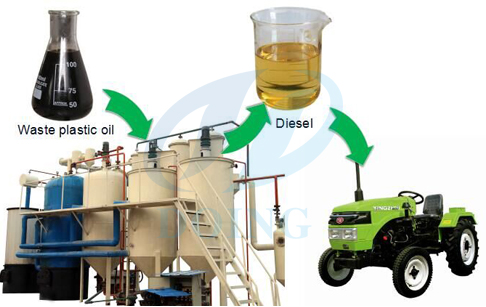

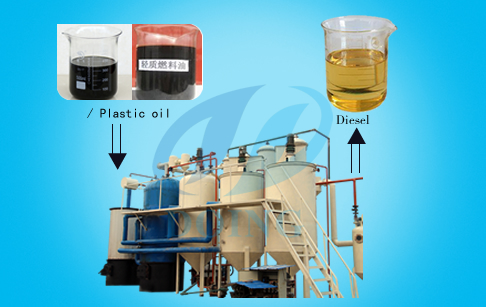

Doing plastic oil to diesel process machine can convert plastic oil to diesel .Our waste plastic oil to diesel process machine can be operated in normal pressure condition and vacuum pressure condition. The oil gas from reactor has already been purified by distillation tower before it gets into condensers and liquefied into light fuel oil. This kind of oil will then be piped into deep purifying with acidity and alkaline cleaning devices as well as pressure filtering system. Then we get qualified diesel oil that can be used in engine and power generators. The feeding and discharging systems of our plants are both automatic, which makes it very convenient to operate for workers. Totally sealed distillation reactor and distillation tower have guaranteed the whole recycling process is very environmental. What’s more, the latest hot air heating system can increase the reactor’s life time for 1-2 years.

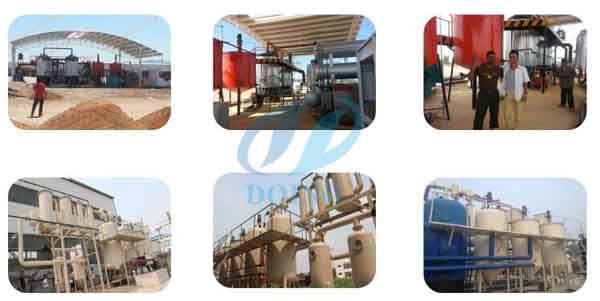

Plastic oil to diesel process machine successful installation in Mexico

Plastic oil to diesel process machine successful installation in Mexico

Previous：Waste oil to diesel

Next：Used motor oil recycling dispose equipment

More Products

View All

Combination tire cutter...

Steel wire packer...

Plastics shredder ...

Plastic oil to diesel process m...

Leave a Message

Technical parameter of plastic oil to diesel process machine
Items	Contents
Model	DY-5t, DY-10t, DY-20t, DY-50t…
Raw material	motor oil, waste tire crude oil, plastic crude oil
Structure form	Vertical (easy cleaning and maintenance)
Heating method	Indirect heating to prolong the machine service life
Operating pressure	Constant pressure
Heating material	Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate	95%
Material of reactor	4 reactor with different material
Thickness of reactor	18mm
Mode of cooling	Recycled water cooling
Power in total	20 Kw
Service life	average 7 years
Land area	180㎡
