Waste plastic oil to diesel oil machine

Oil Refining Machine

The waste plastic oil to diesel oil machine is a great progress in the field of plastic recycling. It adopts the latest refining or distillation technology, which can convert waste plastic oil into diesel.

Chat Online Leave A Message
waste plastic to diesel
Waste plastic oil to diesel oil machine
The waste plastic oil to diesel oil machine is a great progress in the field of plastic recycling. It adopts the latest refining or distillation technology, which can convert waste plastic oil into diesel.

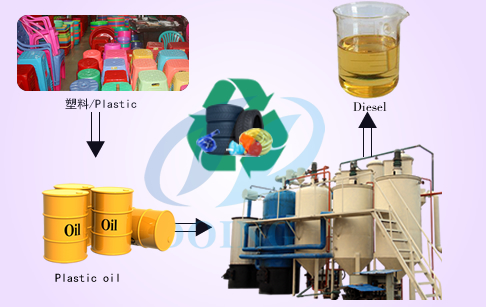

Generally, we can make plastic oil from plastic waste by the pyrolysis plant. If you want to make more profits, the Waste plastic oil to diesel oil machine can help you. It can effectively remove the particles, colloidal matter, acid and odour from plastic oil by acid-treatment and filtration. Finally you can get diesel oil with clean and transparent color and qualified smell.


tyre pyrolysis oil to diesel distillation machine

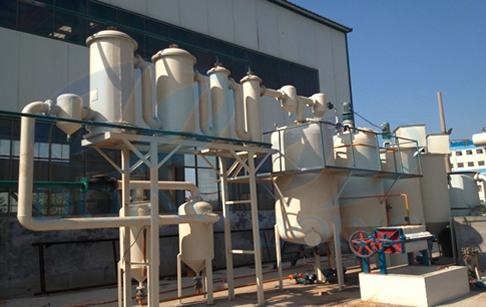

 Waste plastic oil to diesel oil machine

Configuration of Waste plastic oil to diesel oil machine:

1. Reactor: 4 reactor, each reactor has a different materials.
2. Heating way: wood, coal, crude oil, gas
3. Dust Removing System: water removing
4. Condenser: vertical condensers (water cooling function, improve the oil quality)
5.Safety device: Vacuum system
There advantage of DOING Waste plastic oil to diesel oil machine:
1. There are four reactors for theWaste plastic oil to diesel oil machine. We heat the reactor indirectly by using the Boiler heating system to lengthen the life span of reactor.
2. OurWaste plastic oil to diesel oil machine operates in the vacuum environment to promote the rate of the oil yield and quality of oil.
3. There three steps to purify the oil to convert plastic oil to diesel that can be used to the tractors, trucks and diesel generator etc.


Technical parameters of waste plastic oil to diesel oil machine

Technical parameter of waste plastic oil to diesel oil machine
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material motor oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡


waste engine oil to diesel oil application
Diesel application

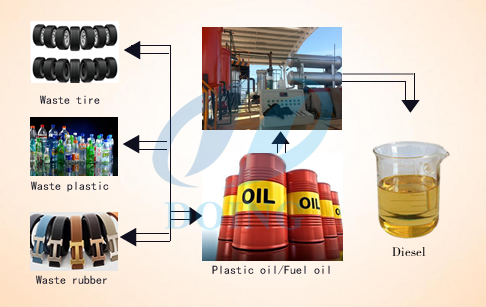

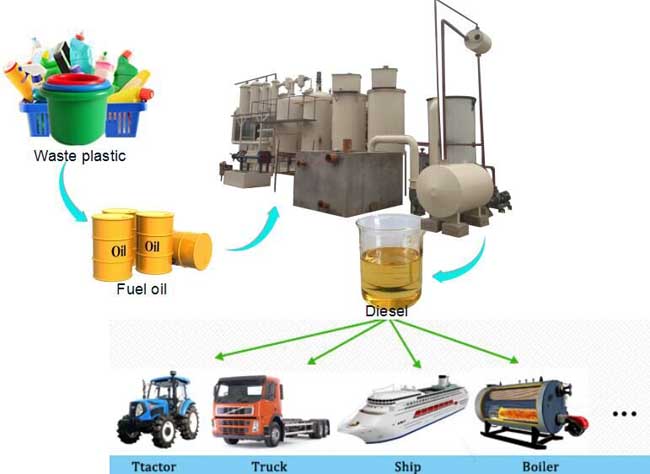

Diesel from Waste plastic oil to diesel oil machine can be used for tractors, trucks, ships and diesel oil generators etc. below is the different waste oil with its oil rate.
Oil yield of different material:
No. Name Oil yield
1 Waste tire oil 85%-90%
2 Waste plastic oil 95%
3 Waste engine oil 85%-90%
