Waste oil to diesel plant distillation plant

Oil refining machine

Here we mainly introduce our waste oil to diesel plant distillation plant, taking the 5D/T waste oil to diesel plant distillation plant as example. DOING 5T/D waste oil to diesel plant distillation plant is mainly composed of 4 reactors, cooling system, vacuum system, filtering system and de-dusting system. Our waste oil to diesel plant distillation plant can refine waste tire oil into diesel very efficiently, and at the moment it is the most energy-saving refinery equipment in the market.

Chat Online Leave A Message
waste oil disitillation machine

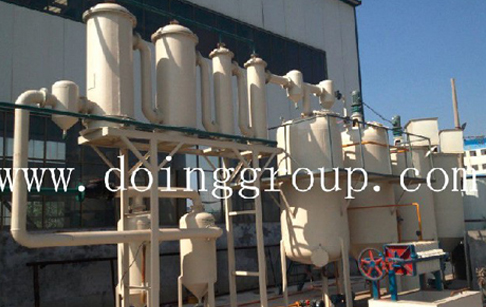

Waste oil to diesel plant distillation plant
Here we mainly introduce our waste oil to diesel plant distillation plant, taking the 5D/T waste oil to diesel plant distillation plant as example.
DOING 5T/D waste oil to diesel plant distillation plant is mainly composed of 4 reactors, cooling system, vacuum system, filtering system and de-dusting system. Our waste oil to diesel plant distillation plant can refine waste tire oil into diesel very efficiently, and at the moment it is the most energy-saving refinery equipment in the market.
Doing waste oil to diesel plant distillation plant have below characteristics:
1. After 2 years’ research and development, our distillation technology is already mature.
2. Can refine 3 kinds of oil--waste tire oil, plastic oil and waste motor oil.
3. The final oil can be directly used for diesel oil generator, trucks and vans, etc.
4. Indirect heating by boiler heating system can greatly increase the service life of our waste oil to diesel plant distillation plant.
5. Three steps purifying process ensure final diesel pure and high quality

Technical parameter of  waste oil to diesel plant distillation plant
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material Waste oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡
diesel oil application

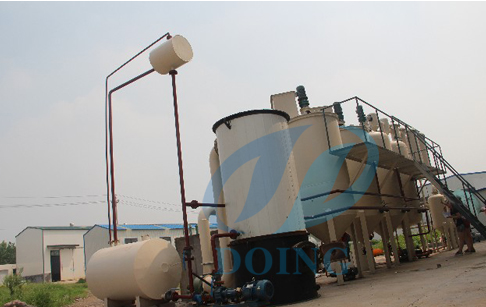

Waste oil to diesel plant distillation plant


DOING waste oil to diesel plant distillation plant  can purify waste tire oil, plastic oil, waste engine oil, the final diesel can be used for tractors, trucks, and diesel oil generators, ships etc.

plastic oil to diesel


oil test report
Oil test report
