Waste oil distillation machine

Waste Oil Distillation

DOING is use green technology distillation of crude/waste oil to diesel. We use the pyrolysis technology to get fuel oil from waste tire, and then refine the crude oil into diesel oil with the distillation technology, which could better solve the oil resources decreasing problem while disposing of the waste. DOING company is doing a very meaningful thing.

  • Ms. Bonnie Zhao
  • +86-371-5677 1821
  • +86 158 9380 0169
  • Skype:bonniezhao2
Chat Online Leave A Message
waste oil disitillation machine
Waste oil disitillation machine
Here we mainly introduce our waste tire oil distillation machine, taking the 5D/T oil distillation machine as example.

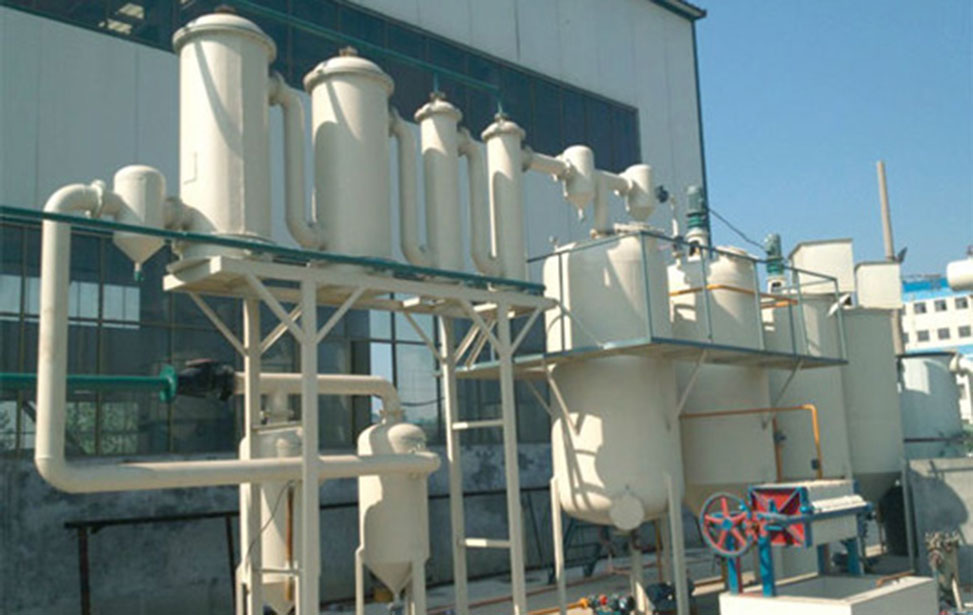

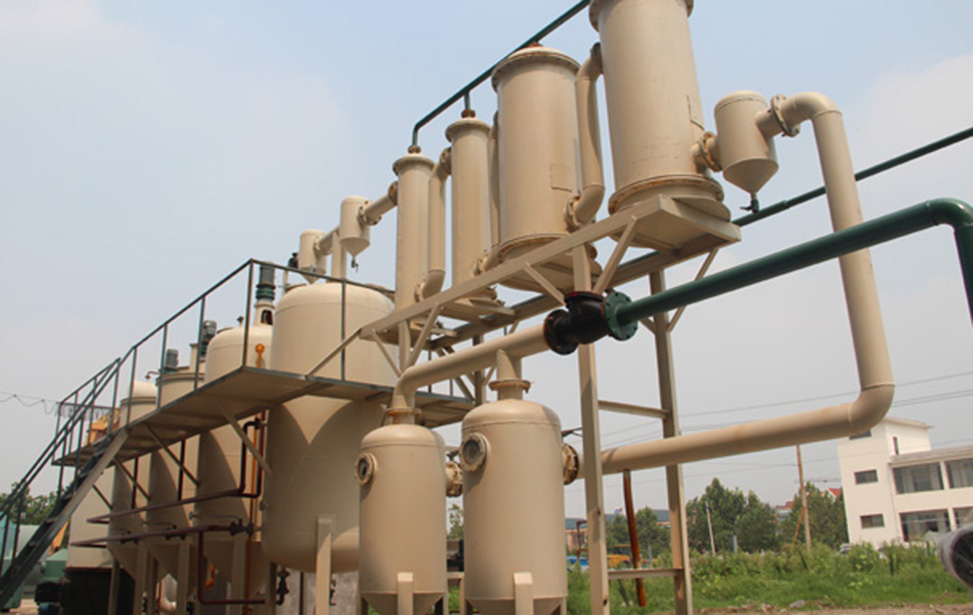

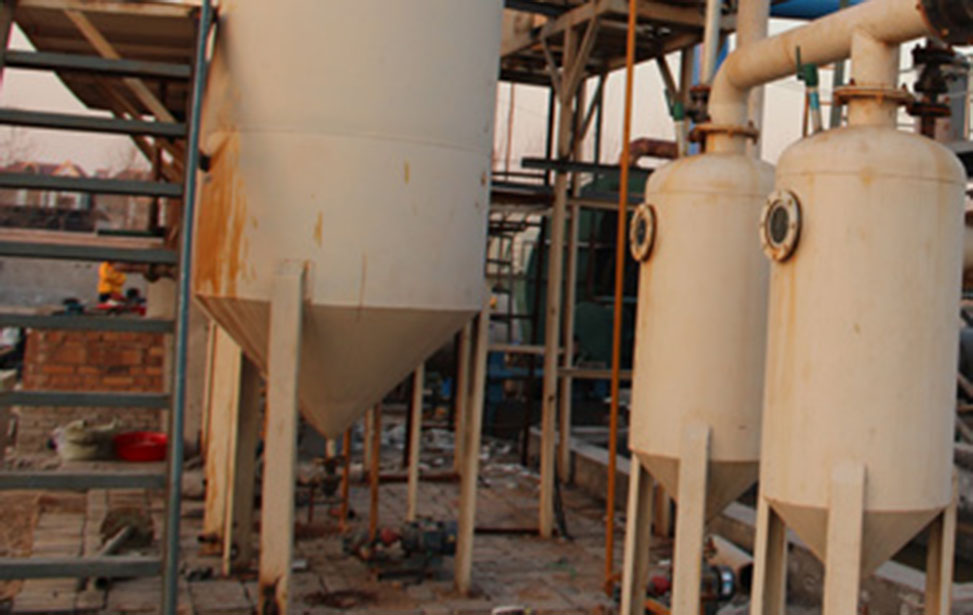

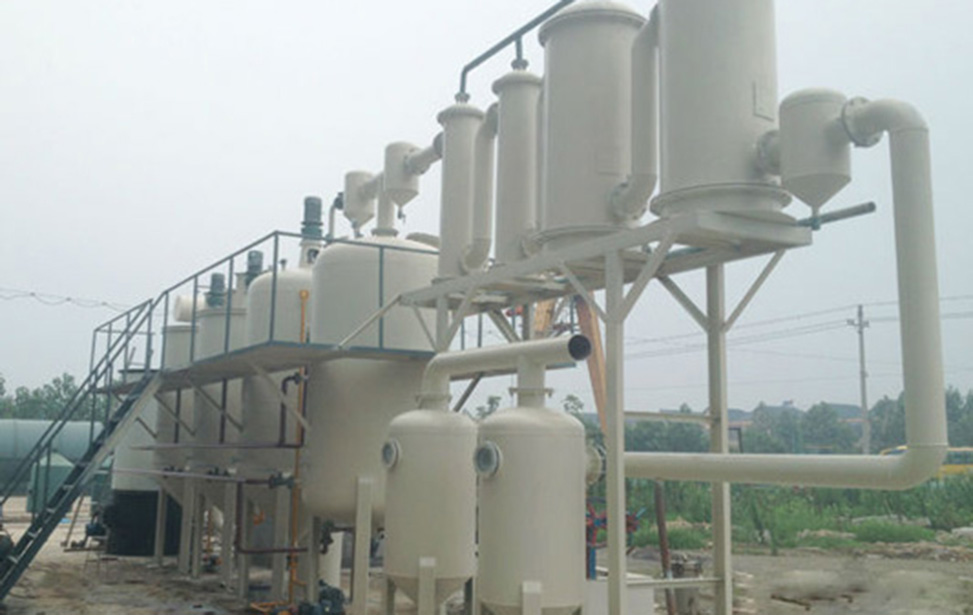

DOING 5T/D waste tire oil distillation machine is mainly composed of 4 reactors, cooling system, vacuum system, filtering system and de-dusting system. Our oil distillation machine can refine waste tire oil into diesel very efficiently, and at the moment it is the most energy-saving refinery equipment in the market.
Doing waste oil distillation machine have below characteristics:
1. After 2 years’ research and development, our distillation technology is already mature.
2. Can refine 3 kinds of oil--waste tire oil, plastic oil and waste motor oil.
3. The final oil can be directly used for diesel oil generator, trucks and vans, etc.
4. Indirect heating by boiler heating system can greatly increase the service life of our waste tire oil distillation machine.
5. Three steps purifying process ensure final diesel pure and high quality

Technical parameter of  waste oil distillation machine
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material Waste engine oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡
diesel oil application
Waste oil distillation & refining  machine


DOING waste oil distillation machine can purify waste tire oil, plastic oil, waste engine oil, the final diesel can be used for tractors, trucks, and diesel oil generators, ships etc.

plastic oil to diesel


oil test report
Oil test report
