Waste tyre recycling plant

1. Products / Recycling Machines

2. Products / Recycling Machines

Waste tyre recycling plant

3. Products / Recycling Machines

Waste tyre recycling plant

4. Products / Recycling Machines

Waste tyre recycling plant

Recycling Machines

Provided by DOING is a world class array of Tyre Recycling Plants, which is manufactured in compliance with the set industry norms. These are extensively used in various industries. In addition, these are known for their longer service life, excellent corrosion resistance and negligible maintenance. Doing waste tire recycling plant that can pyrolysis waste tires, waste rubber and waste plastic to fuel oil, crude carbon black and steel wires without pollution.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2

Chat Online Leave A Message

tyre oil ,tire oil ,tyre recycling to oil machine

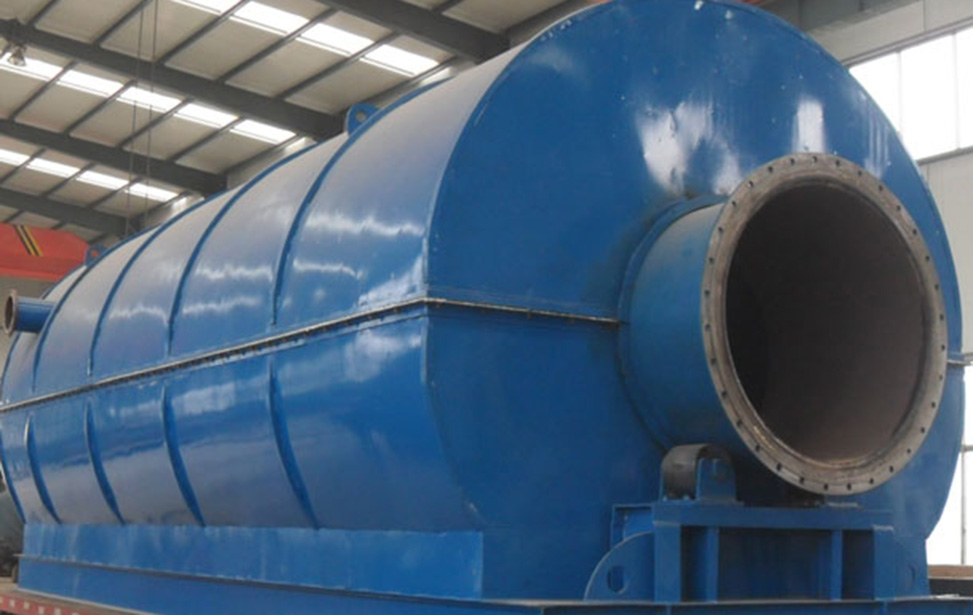

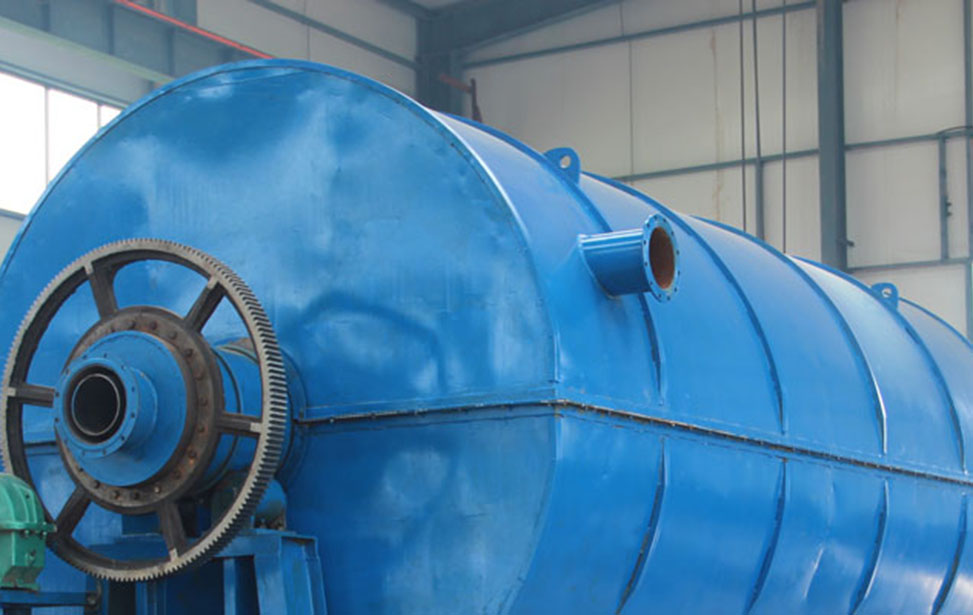

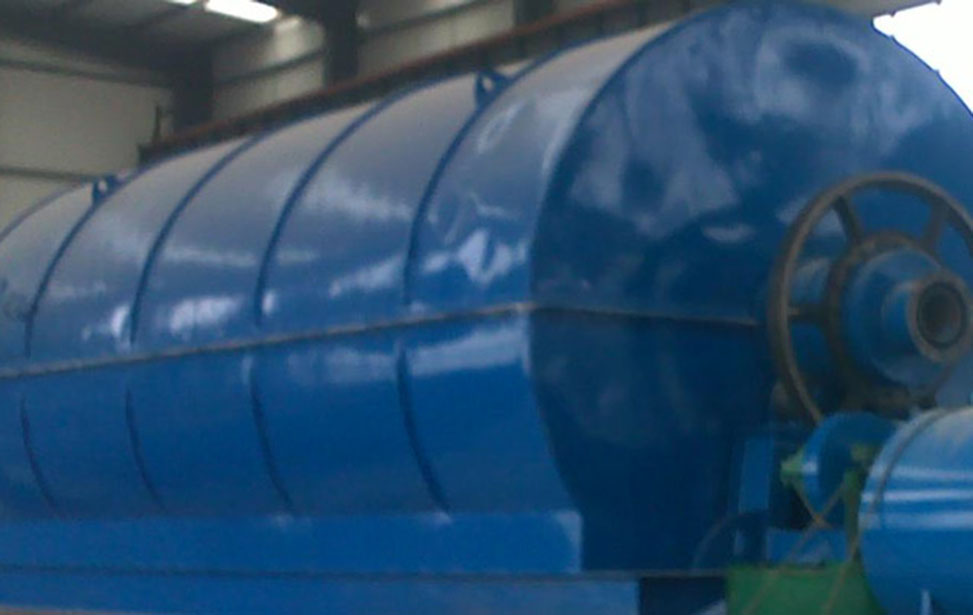

Waste tire recycling plant

Configuration:
1. Reactor: Q245R boiler plate, 16mm thickness.
2. Heating way: wood, coal, crude oil, gas
3. Cooling System: Recycled water cooling way.
4. Negative pressure device: guarantee the machine safety, no gas running outside
5. Safety device: automatic alarm, automatic valves
6. Slagging device: Auto slagging system.
7. Final product: crude oil(45%-52%), carbon black(30％-35％）, steel wire(10％-15％).
Customer Service:
Our service including:12months warranty; Erecting the plant; Commissioning the plant; Training the operator; Providing of spare parts; whole life’s technical consultant of the plant.

Technical Data

Technical parameter of waste tire recycling plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tire	Waste tire	Waste tire
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about waste tire recycling plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Application

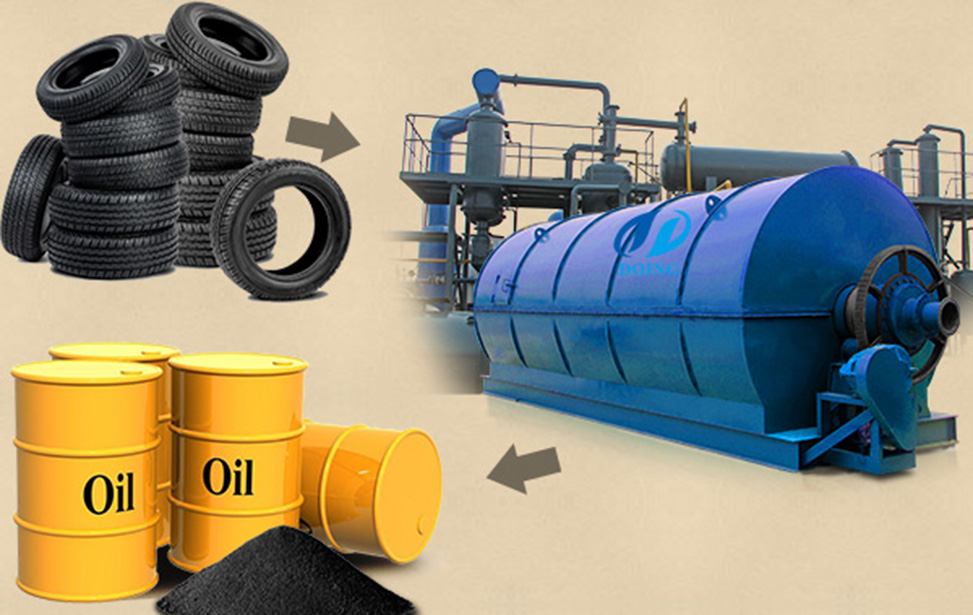

waste tire recycling to oil plant ,tyre to oil plant

Tire oil application range

Now, more and more people know this project, and DOING GROUP waste tire recycling plant used by waste tyre and plastic recycling companies with owned a good reputation around the world.
Project Case:
Albania, Italy, Poland, Romania, Pakistan, Mexico, Haiti, Iran, Malaysia, Ecuador, India, etc.
