waste plastic recycling to fuel oil plant

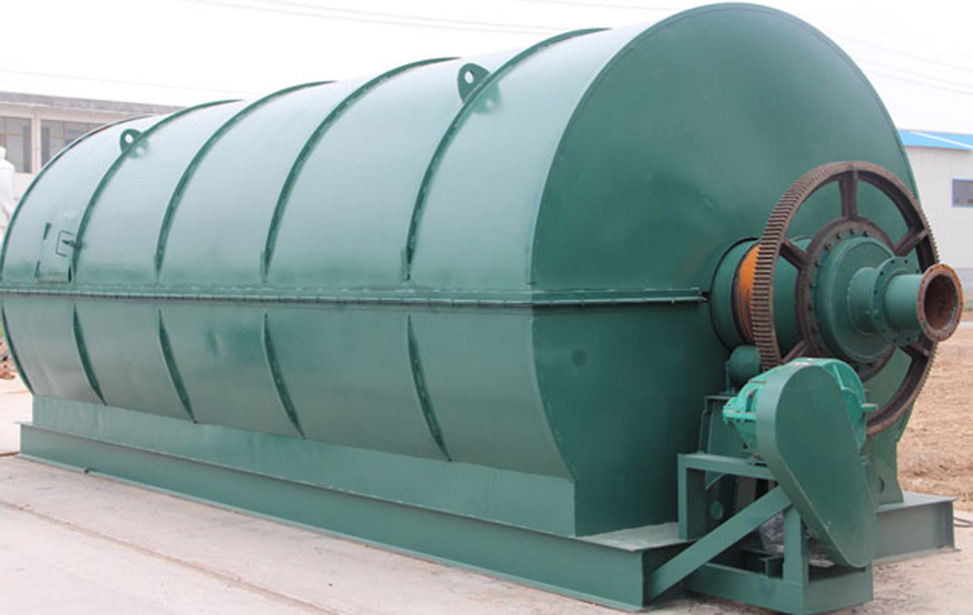

Waste plastic recycling to fuel oil plant

Henan DOING Mechanical Equipment Co.ltd is a leading manufacturer specialized in large and medium-sized oil-related machineries, including waste plastic recycling to fuel oil plant, and waste tire recycling pyrolysis machine to get fuel oil, waste oil/black oil refinery machine to get diesel oil.

1. End product percentage: plastic oil 85%-90% for PP, PE, PS, ABS.
2. Delivery time: the delivery time shall be 25days more or less after get the advance payment.
3. Warranty and machine life: We guarantee the complete machine 1 year, the reactor service life can be 6-8 years.
4. The machine Raw material: Q245R Boiler plate with 16mm thickness.
5. The machine installation: we will send engineer to buyer’s place when getting the machine. The engineer mainly installs the machine and training your workers. Until the machine can running well.
6. Port (China): Qingdao port or shanghai port
.
Technical parameter of waste plastic recycling to fuel oil plant
  No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about waste plastic recycling to fuel oil plant
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m
Profitable business: The cost of waste plastic is quite low, even you can get subsidy by processing them. Meanwhile the fuel oil can bring you considerable profit.

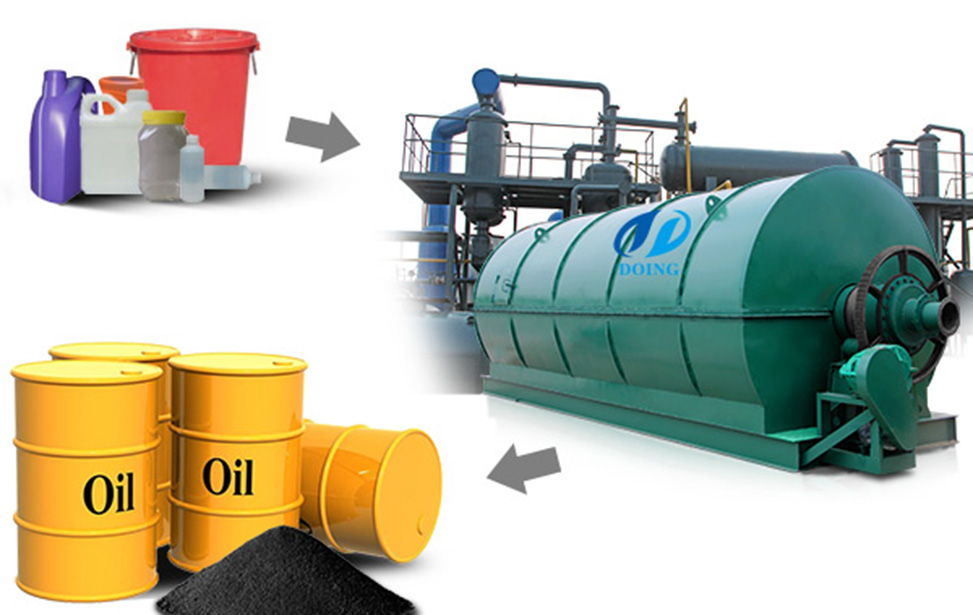

plastic into oil,plastic oil application
plastic oil from recycling oil plant widely used in above factories
