Convert waste plastic to oil machine

Converting waste plastic to oil is a new technology. By the technology, we can convert the plastic, which is seen as waste to oil. With years researching and developing,we have manufactured the latest generation convert plastic to oil machine.According to the feedback of customers, we consistently improve the quality of this machine. Finally, we manufactured the latest generation machine.

• Technical Data

Compared with the old plastic to oil machine,there have some advantages with the latest generation machine:
1. The latest generation convert plastic to oil machine adopt the newest technology toreduce the pollution to the environment, it produce nearly no pollution to theenvironment. It absolutely meets the stand of the environmental protection. And meet the command of the notion of sustainable development.

2. The latest generation convert plastic to oil machine is more effective. With fewer raw materials it can produce crude oil as many as it can. And the time is shorter compared with old machine. What is worse, 2 workers are enough tooperation the machine.
3. The traditional way to convert plastic to oil is to heat the plastic when the temperature reached its boiling point,let it vaporize and then condense the vapor. Finallywe will get liquid oil. The latest generation convert plastic to oil machine adopts chemical process which breaks long chains into shorter ones.This allows a refinery to turn diesel fuel into gasoline depending on the demand for gasoline. So we can get higher quality oil.
4. The latest generation convert plastic to oil machine is the cheapest during the history of my company. And it is cost-effective.it can maximize save the prime cost, and create more  economics profits.

Convert waste plastic to oil machine technical parameter:

Technical parameter of convert plastic to oil machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste plastic	waste plastic	waste plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about convert plastic to oil machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

• Application

Convert waste plastic to oil machine can disposal tires and rubber to fuel oil. Usually plastic oil yield is about 20%-95% (according to plastic type).

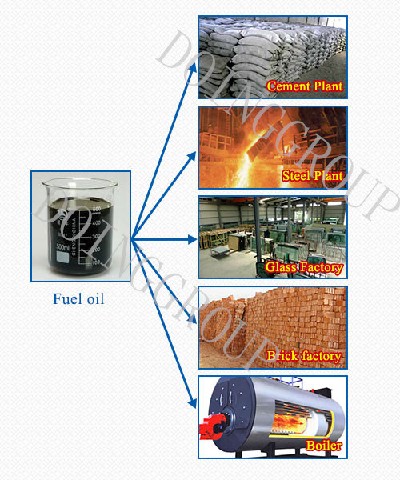

Fuel oil can be using as heating material into cement factory, glass making factory, steel factory, brick factory boiler etc.

We put out heart and soul into servingour customers. It is a wisdom choice to have a corporation with us. We are Henan DOING Mechanical Equipment Co,Ltd. Welcome your visit!
