Tyre oil refining machine
Tyre oil refining machine
Tyre oil refining machine can convert tire oil, plastic oil, and waste engine oil to diesel. In some country, tyre oil refining machine also named waste oil refining machine, distillation equipment, it just name different, but have a same function.
Tyre oil refining machine not only applied to tyre oil also can use for plastic oil and wste engine oil .The final oil of tyre oil refining machine can used for tractors ,trucks,ships and generator
Tyre oil refining machine technical data
Technical parameter of tyre oil refining machine |
No. |
Items |
Contents |
1 |
Equipment type |
DY-1-6 |
DY-1-8 |
DY-1-10 |
2 |
Raw material |
Tyre oil |
Tyre oil |
Tyre oil |
3 |
Structural form |
Horizontal rotation |
Horizontal rotation |
Horizontal rotation |
4 |
24-hour Capacity |
6 ton |
8 ton |
10 ton |
5 |
Oil yield |
2.7-3.3ton |
3.6 -4.4ton |
4.5 -5.5ton |
6 |
Operating pressure |
Normal |
Normal |
Normal |
7 |
Material of pyrolysis Reactor |
Q245R |
Q245R |
Q245R |
8 |
Thickness of pyrolysis Reactor |
16mm |
16mm |
16mm |
9 |
Rotate speed of pyrolysis Reactor |
0.4turn/minute |
0.4turn/minute |
0.4turn/minute |
10 |
Total power |
19KW |
19KW |
19KW |
11 |
Mode of cooling |
Water cooling |
Water cooling |
Water cooling |
12 |
Cooling area of condenser |
100sqm |
100sqm |
100sqm |
13 |
Kind of transmission |
Internal gear drive |
Internal gear drive |
Internal gear drive |
14 |
Noise dB(A) |
≤85 |
≤85 |
≤85 |
15 |
Size of Reactor(D×L) |
2200×6000 |
2200×6600 |
2600×6600 |
16 |
Working form |
Intermittent operation |
Intermittent operation |
Intermittent operation |
17 |
Delivery time |
20days |
20days |
20days |
18 |
Weight |
27T |
30T |
35T |
Prepared by customer about tyre oil refining machine |
No. |
Item |
Consumption |
1 |
Coal(for choice) |
500kg/day |
2 |
Wood(for choice) |
800kg/day |
3 |
Natural gas(for choice) |
100-150kg/day |
4 |
Oil(for choice) |
300-350kg/day |
5 |
Electricity |
244kwh/day |
6 |
Water(recycled) |
60㎥ /month |
7 |
Total power |
19kw |
8 |
Land area |
35m*15m |

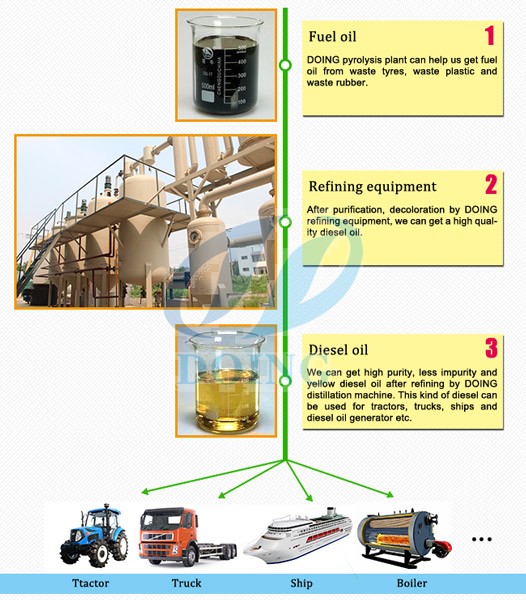

Tyre oil refining machine final product and application
Tyre oil of tyre oil refining machine can used for tractors ,trucks,ships and generator :
