Grinding machine

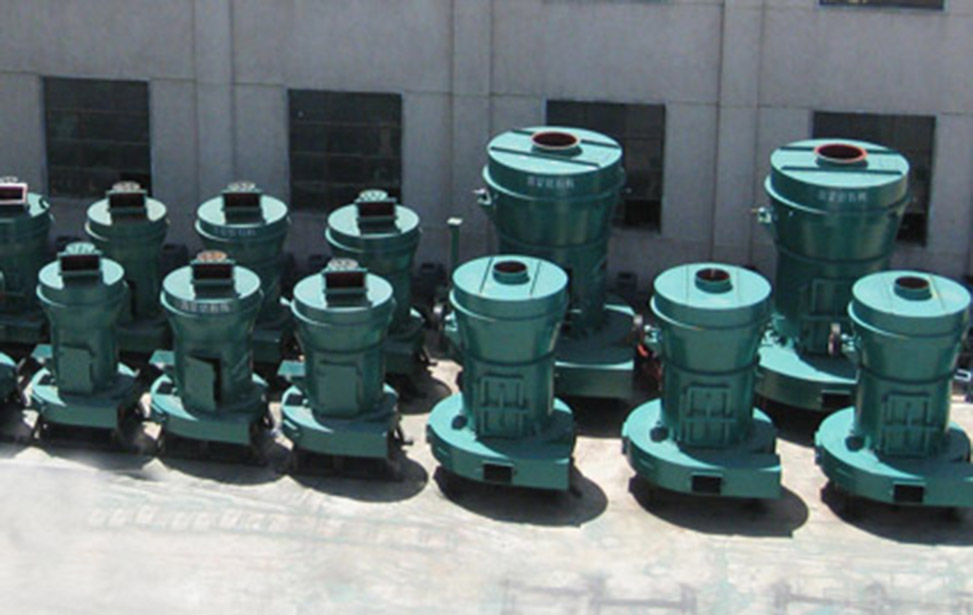

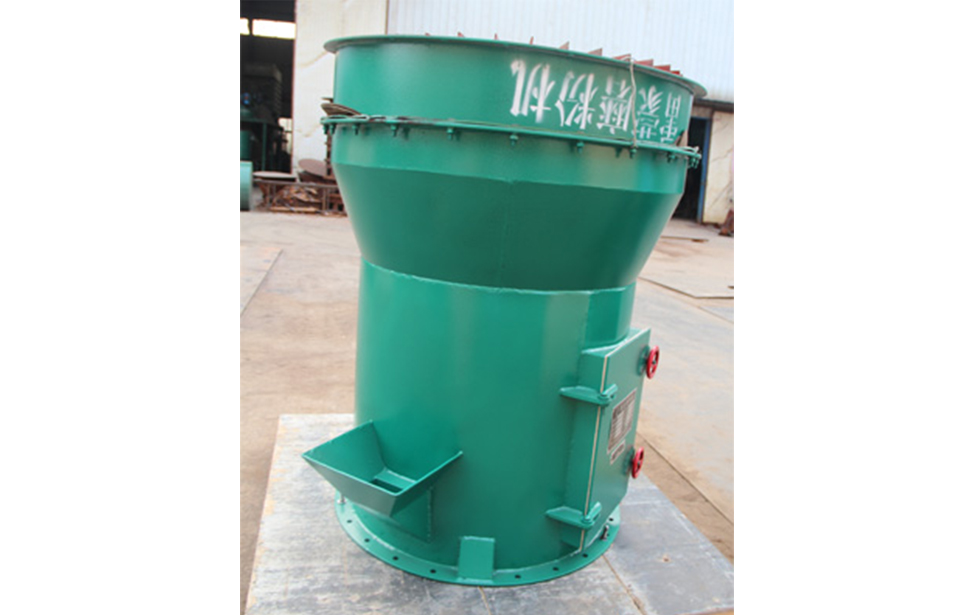

Raymond Mill is widely used for flour milling industry. As an accessory equipment of waste tyres/plastics pyrolysis fuel oil platn, Raymond mill is used to process the carbon black which is a kind of product from pyrolysis machine. It mills the carbon black into smaller granule, which should meets the different demands of the market.Doing help clients purchasing the Raymond Mill when needed.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2
oilmachine@doinggroup.com

Chat Online Leave A Message

Professional skill and meets the industry demands.
The carbon black should be sold as a higher price after milling.

Model	3R1410	3R1815	3R2115	3R2615	3R2715	3R3016	4R2715	4R3016	4R3216	5R4119	6R4427
（mm）Max Feeding Size	10-15	10-15	10-15	15-20	15-20	20-25	15-20	20-25	20-25	20-30	20-50
（mm）Output Size	0.250-0.045mm/60-325mesh
（T）Capacity	1-10	1.3-14	1.5-16	41694	2-29	3-34	2-31	3-35	3-39	5-66	10-140
（r/min） Centre Axis Speed	280	195	160	162	162	160	162	160	140	103	82
（mm）Grinding ring Outer Dia.	500	630	725	861	915	975	915	975	1073	1400	1750
(mm)Grinding roller Dia.	140	180	210	260	270	300	270	300	320	410	420
（mm）Roller and ring height	100	150	150	150	150	160	150	160	160	190	270
（kw）Main Motor	7.5	11	15	18.5	22	30	22	30	37	75	132
（kw）Blower Motor Power	5.5	7.5	11	18.5	18.5	22	18.5	22	30	75	132
(kw)Analyzer Motor Power	1.1	1.5	2.2	2.2	2.2	2.2	2.2	2.2	5.5	7.5	11

Working principle

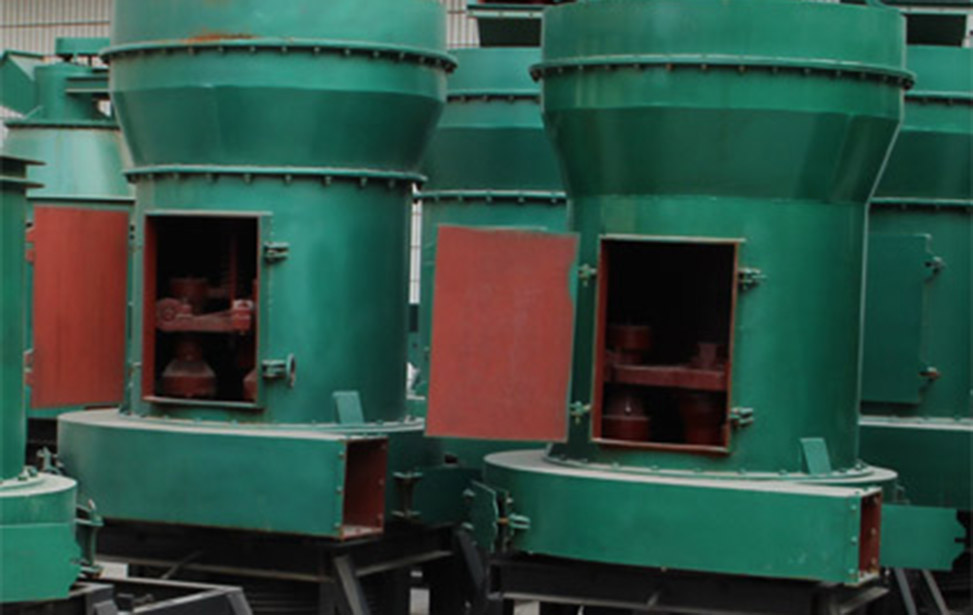

Firstly, raw material is crushed by jaw crusher to the size required, then elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between the ring and rollers to accomplish the grinding. After grinding, the rough materials will be recycled by the air from the fan back into the grinding chamber for regrinding and the fine powders are blew into the cyclone and poured out through the output-powder pipe as the final products.

Raymond mill is used cooperatively with waste tyre pyrolysis to fuel oil plant could processes the carbon black deeply and raise the value of the carbon black.
