With the development of social modernization, on the one hand, the rubber industry has been vigorously developing, and the rubber products have been widely used in all works of life, especially in the tire manufacture; On the other hand, more scrap articles, such as tires, are generated and accumulated to such huge amount. Because of the erode-resistant characteristic of tires, the big pollution hazard was posed to the environment and hygiene. People vividly described it as black pollution.How to solve the problems?

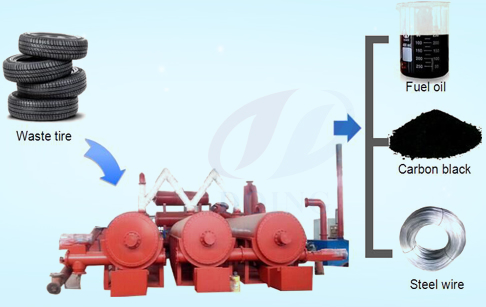

fully automatic continuous tire pyrolysis equipment
 Fully automatic conintuous tire pyrolysis equipment
Doing manufactures and offers the leading eco-friendly and cost-effective automatic and  fully automatic conintuous tire pyrolysis equipment with the world class design and technology.Doing group has never stop to develop the pyrolysis plant and experienced a lot of researches and experiment.

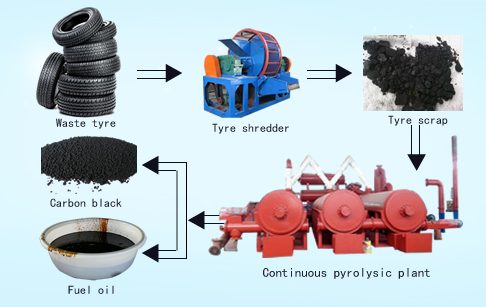

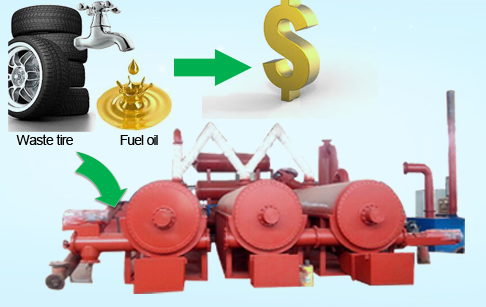

Fully automatic conintuous tire pyrolysis equipment can transfer the waste tires into oil in normal pressure.In general 2.5 ton waste tire can get 1 ton oil ,and the oil through the distillation can get diesel and gasoline . Fully automatic conintuous tire pyrolysis equipment of Doing is no pollution to the air ,the  fully automatic conintuous tire pyrolysis equipment not only can solve the waste tire pollution in your country but also can take much profit for you.

Fully automatic conintuous tire pyrolysis equipment raw material
Fully automatic conintuous tire pyrolysis equipment raw material is waste tire /tyre ,waste plastic ,waste rubber .
continuous pyrolysis equipment
Fully automatic conintuous tire pyrolysis equipment raw material



 Fully automatic conintuous tire pyrolysis equipment main advantage
Compared with the batch operating plant and semi-continuous plant, fully automatic conintuous tire pyrolysis equipment have such advantages.


fully automatic continuous tire pyrolysis equipment

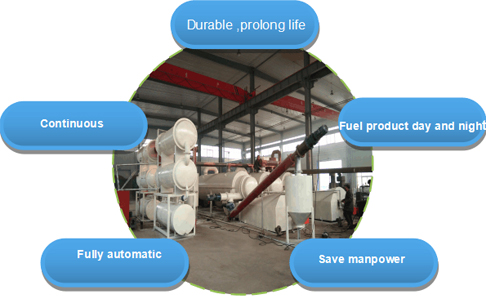

The advantage of fully automatic continuous tire pyrolysis equipment
1.Fully automatic with low labour cost
Our fully automatic conintuous tire pyrolysis equipment  is controled by PLC system with automatic feeding and discharge system, which only need 1-2 worker for operating the PLC or computer is ok.
2.Fully pyrolysis for high oil output
Our fully automatic conintuous tire pyrolysis equipment  adopts mutiple reactor design which can make fully pyrolysis of waste tires, thus to get high oil output.
3.Big capacity
Also due to continuous feeding and discharge system, and unique mutiple reactor design, our fully automatic conintuous tire pyrolysis equipment  can process at least 10 tons waste tires per day, up to 100T/D.
4.Internal rotating for conitnuous operation
For external rotating system, you have to change the sealing material every three days, thus cannot achieve the real sense of continuous process. But our continuous waste tire pyrolysis reactor adopts internal rotating method, which no need to worry about the sealing of the external rotating system.
5.Continuous working save time and energy
6.Long working life
Fully automatic conintuous tire pyrolysis equipment technical data

No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black

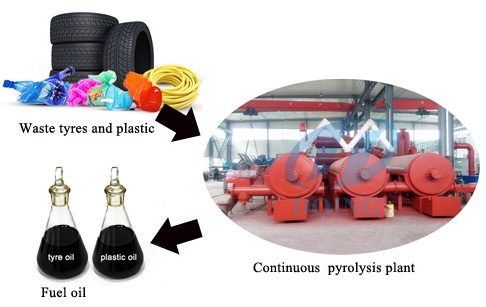

 Fully automatic conintuous tire pyrolysis equipment final product and application

fully automatic pyrolysis equipment

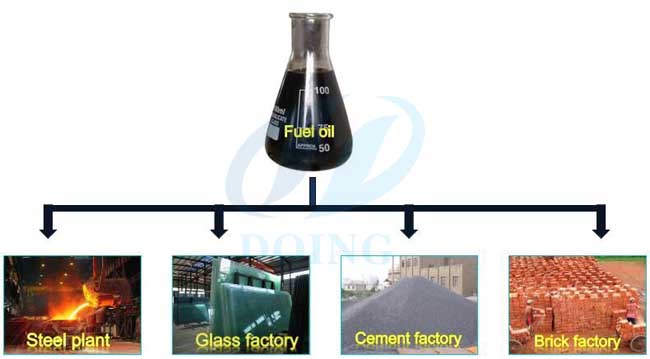

Fuel oil application
Fuel oil: Nearly 45% of the end products are fuel oil which can be used in various manners like selling it directly, converting it into gasoline or diesel by using oil distillation machines or burns it like fuel material.
continuous pyrolysis equipment

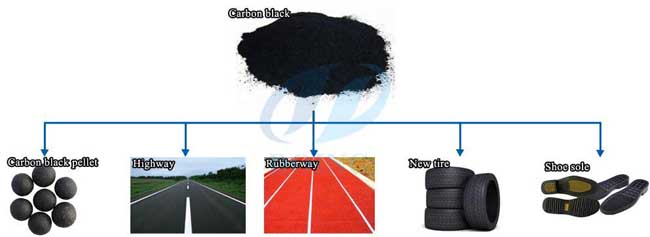

Carbon black application

Carbon black: Second main end product has 30% share in the total end products which can be sold directly or refined in machines to form fine carbon.

Steel wire (if waste tires are fed into reactor): Steel wires can be 15% of the total end products. It can either be sold directly or processed to make various other items.

Flammable oil gas: Last but not the least important end product is flammable oil gas which can either be used as fuel to heat the reactor of the fully automatic continuous tire pyrolysis equipment or can be stored as fuel material to be used in various other industrial units for heating purpose.
