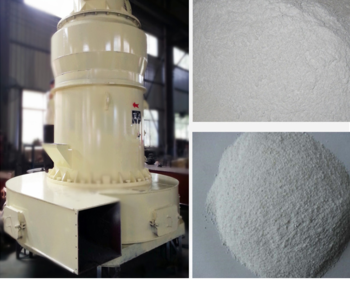

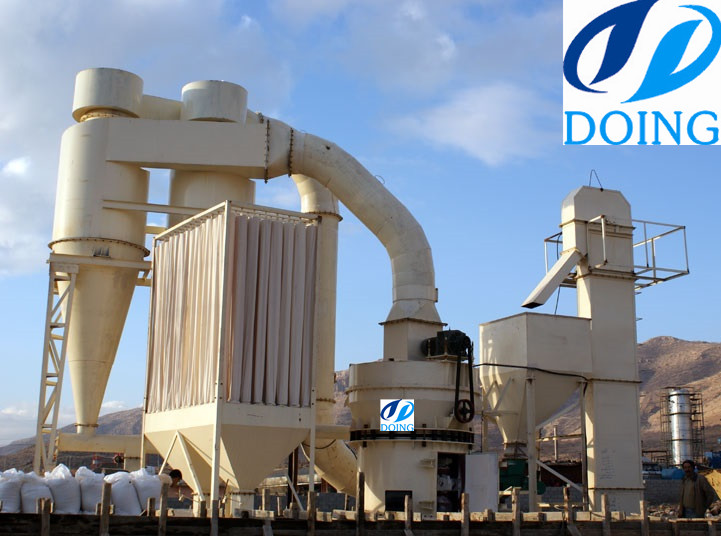

Grinding Mill is mainly used to pulverize various nonflammable and unexplosive materials less than 9.3-scale Mohs hardness and 6% humidity, in the industries of glass, rubber, pesticide, ceramic, paint, phosphate fertilizer and paper-making etc. These materials include pencil stone, barite calcite, limestone, marble, manganese ore, iron ore, clay, feldspar, bolus alba, bentonite and so on.
Model |
Grinding Roller |
Grinding Ring |
Feeding |
Output size (mm) |
Capacity |
Motor |
Overall |
|||
Numbers |
Diameter |
Height |
Outside |
Height |
||||||
3R1410 |
3 |
140 |
100 |
495 |
100 |
<8 |
0.613-0.044 |
0.15-1.2 |
14.1 |
3340*2200*3200 |
3R2115 |
3 |
210 |
150 |
726 |
150 |
<15 |
0.613-0.044 |
0.28-1.8 |
28.2 |
4480*3100*3970 |
3R2615 |
3 |
260 |
150 |
865 |
150 |
<15 |
0.613-0.044 |
0.35-2.8 |
35.7 |
5000*4100*4850 |
3R2715 |
3 |
270 |
150 |
884 |
150 |
<15 |
0.613-0.044 |
0.40-3.4 |
42.7 |
5050*4150*4900 |
3R3015 |
3 |
300 |
150 |
965 |
150 |
<15 |
0.613-0.044 |
0.45-3.7 |
55 |
5200*4200*4950 |
4R3016 |
4 |
300 |
160 |
990 |
160 |
<20 |
0.613-0.044 |
0.6-4.5 |
55 |
5250*5000*5500 |
4R3216 |
4 |
320 |
160 |
1073 |
160 |
<25 |
0.613-0.044 |
1.0-5.2 |
72.5 |
7700*7200*8800 |
5R4119 |
5 |
410 |
190 |
1400 |
190 |
<30 |
0.613-0.044 |
2.0-9.0 |
157.5 |
7900*8800*9650 |
