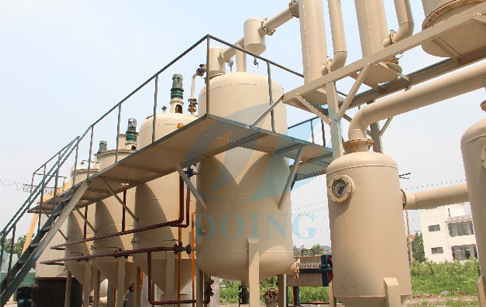

Plastic to oil or diesel fuel distillation plant

Oil Refining Machine

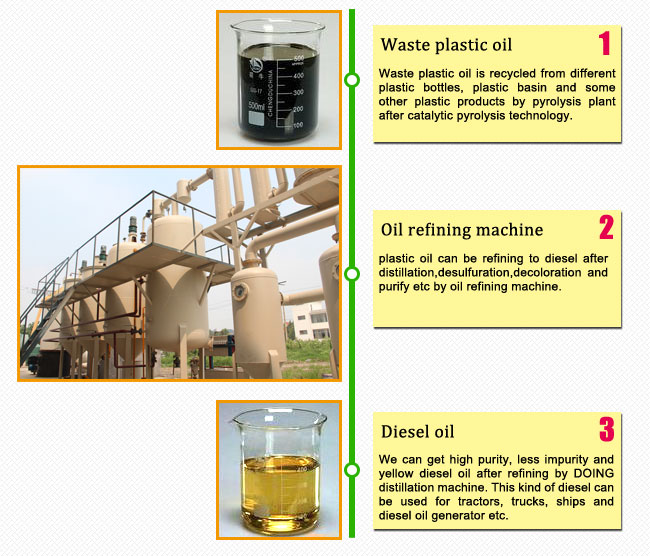

We use green technology (pyrolysis and distillation) to recycle waste plastic to oil resources. We use the pyrolysis technology to get fuel oil from waste plastic, and then refine the plasitc oil into diesel oil with the distillation technology, which could better solve the oil resources decreasing problem while disposing of the waste.

Chat Online Leave A Message
plastic oil to  diesel oil plant
Plastic to oil or diesel fuel  distillation plant
We use green technology (pyrolysis and distillation) to recycle waste plastic  to oil resources. We use the pyrolysis technology to get fuel oil from waste plastic, and then refine the plasitc oil into diesel oil with the distillation technology, which could better solve the oil resources decreasing problem while disposing of the waste.
Technical parameter of  plastic to oil or diesel fuel  distillation plant
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material Waste plastic to oil or diesel fuel
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡

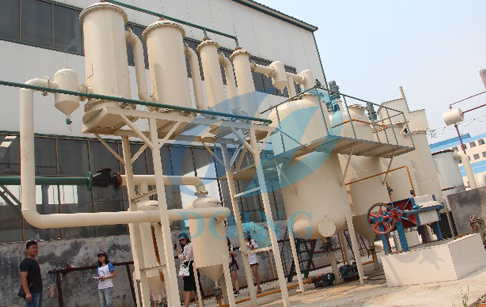

 waste plastic oil refining to diesel plant


Advantage of our plastic to oil or diesel fuel  distillation plant

Safety is the most important factor in the whole process. We had successfully researched some safety devices which ensure the machine can work safely. Such as, the safety valves, alarming device and the pressure gauge etc.


Leave A Message About Plastic to oil or diesel fuel distillation plant

Continuous Pyrolysis Plant Products

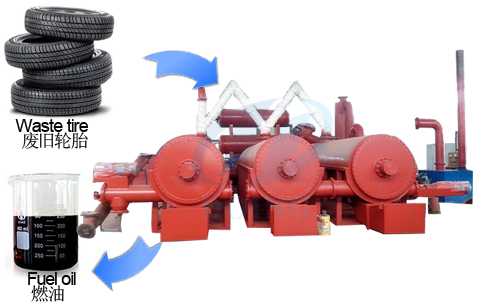

Refined tyre oil can be directly used in tractor
