Continuous tyre pyrolysis system
Continuous tyre pyrolysis system
Continuous tyre pyrolysis system
Continuous tyre pyrolysis system

Continuous tyre pyrolysis system

The continuous tyre pyrolysis system is equipped with automatic feeding and discharging system, which can realize feedin...

Get Price
Online Chat

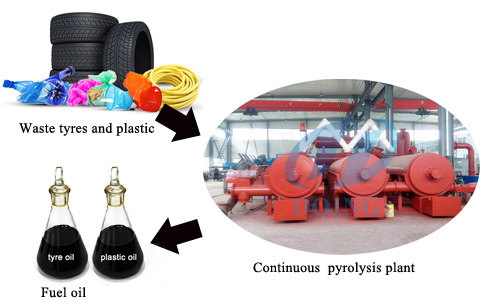

continuous pyrolysis plant

Continuous tyre pyrolysis system

The continuous tyre pyrolysis system is equipped with automatic feeding and discharging system, which can realize feeding materials on one side and discharging the slag continuously from the other side. It not only can dispose 10-100 tons waste tyres per day but also can work continuously for 24 hours without a stop.


tyre pyrolysis

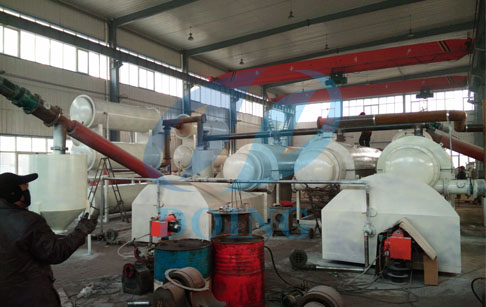

Continuous tyre pyrolysis system
When using the continuous tyre pyrolysis system to dispose waste tyres, the pre-treated tyres will first be conveyed to the moving horizontal pyrolysis reactor through the automatic feeder. In the reactor, the tyres will take a series of pyrolysis reactions under the action of catalyst. When the whole pyrolysis process ends, we can get pyrolysis oil, carbon black and steel wire.

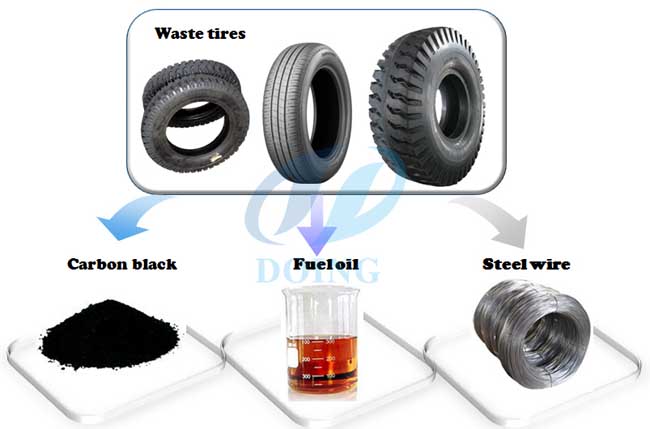

Continuous tyre pyrolysis system raw material  and final product
pyrolysis system


Continuous tyre pyrolysis system raw material  and final product

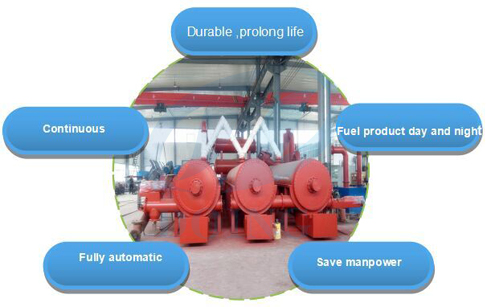

Continuous tyre pyrolysis system advantage
continuous tyre pyrolysis system
                                                                             Continuous tyre pyrolysis system advantage
1.We can get tyre oil,carbon black,and steel from continuous tyre pyrolysis system
2. High oil output rate 45%-55%, the rubber up to 60%.
3. Rapid condenser, we have 5 condensers, the cooling area up to 53 square meters, the area larger, the more oil u can get.
4. Large capacity: 10tons / 20ons / 30tons
5. Safety device, we have automatic alarm bells with pressure gauge, If pressure gauge more than the pressure, bells will ring.
6. Environmental protection, no pollution, no smell.
7. 6—8 years life, 3 years warranty


Continuous tyre pyrolysis system technical data

No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black


Continuous tyre pyrolysis system final product application

Continuous tyre pyrolysis system of Doing can get Fuel oil (45% to 52%) ,Carbon black (30% to 35%) ,steel wire (12%-15%),this product can use widely in inductries.
tire recycling plant

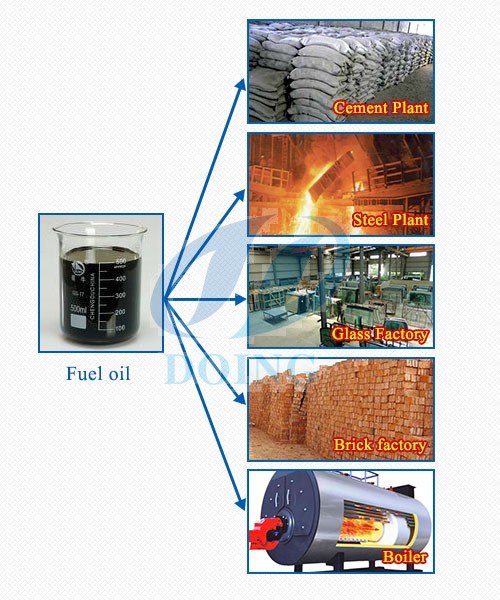

Fuel oil application
