 Continuous model waste tyre pyrolysis plant
 Continuous model waste tyre pyrolysis plant
 Continuous model waste tyre pyrolysis plant
 Continuous model waste tyre pyrolysis plant

Continuous model waste tyre pyrolysis plant

The continuous model waste tyre pyrolysis plantis a green technology to solve tyre and other environment pollution which...

The waste tire pyrolysis plant provided by Doing Group mainly has two types, batch pyrolysis plant and continuous pyrolysis plant. Continuous waste tire pyrolysis plant is defined relative to batch pyrolysis plant. The continuous model waste tyre pyrolysis plantis a green technology to solve tyre and other environment pollution which are becoming the serious issues nowadays and it is the meaningful industry.

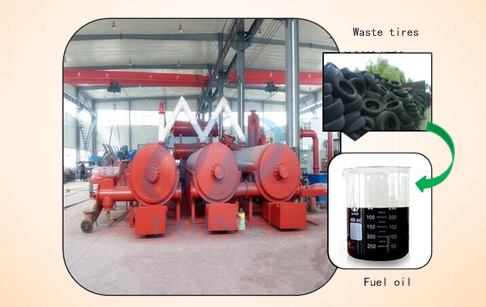

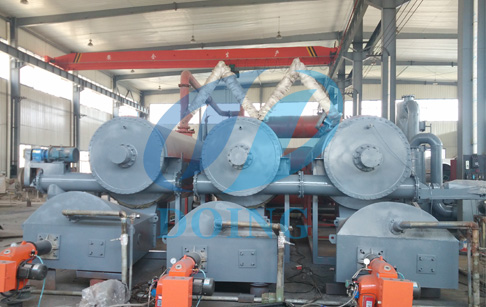

Continuous waste tire pyrolysis plantContinuous waste tire pyrolysis plant

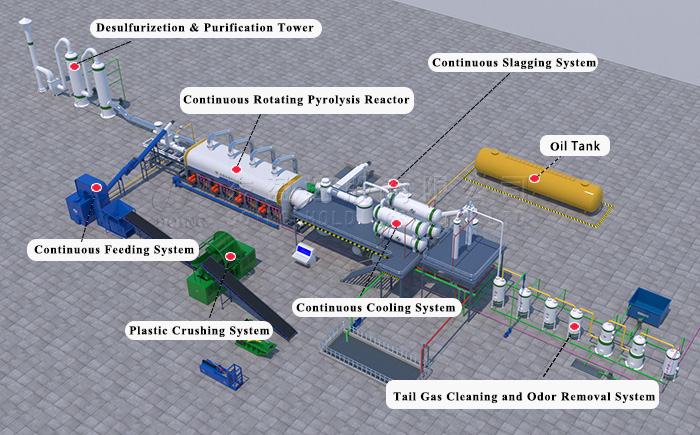

Continuous model waste tyre pyrolysis plant includes waste tyre pretreatment systm, continuous pyrolysis system with continuous feeding and discharge system controled by PLC system. The main part is the continuous pyrolysis system. Continuous model waste tyre pyrolysis plant is for processing waste tires into fuel oil and carbon black for recycle use. Due to continuous feeding and discharge system, the continuous model waste tyre pyrolysis plant can keep working without stop, thus to save energy and time. Also PLC control system makes much less labour cost.

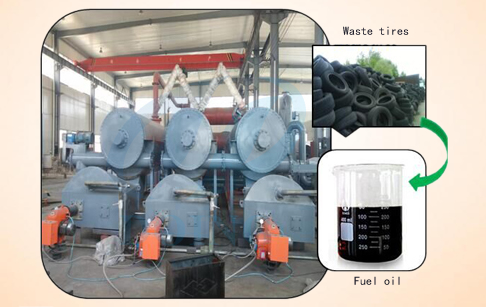

Continuous waste tire pyrolysis plantContinuous waste tire pyrolysis plant
  Continuous model waste tyre pyrolysis plant technical data

No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black


 Continuous model waste tyre pyrolysis plant final product and application

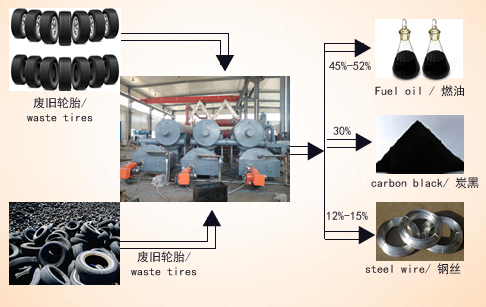

After processed by continuous model waste tyre pyrolysis plant, we can get fuel oil, carbon black,steel wire and uncondensable gas. The following is the application of the final products.

1. Pyrolysis oil is a good heating fuel,which can be used in many industries, for example, cement factory, heavy oil generator, steel factory, etc. Besides, pyrolysis oil can be refined into diesel with waste oil distillation machine to get higher business values.

2. Carbon black has a higher calorific value than coal and can be used as a fuel. Carbon black can also be deep-processed to make high-quality carbon black, which can be used as an additive machine for tires, rubber soles, paints, etc.

3. Steel wire can be recycled as a waste product, or it can be re-casted into a variety of products, such as steel shots, steel balls, etc., to achieve higher economic value.

4. The uncondensable gas can be recycled to heat the pyrolysis reactor to save fuel and can protect the environment.

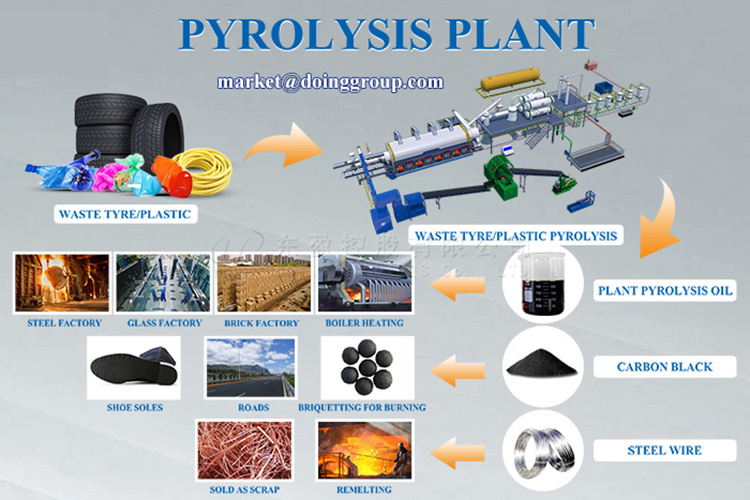

continuous waste tire pyrolysis plantApplication of tire pyrolysis products

Doing Group continuous waste tire pyrolysis plant can not only process waste tires, but also waste plastics. The daily capacity is between 20T and 50T per day. If you want to know more information about waste tire pyrolysis plant, welcome to consult us.
