fully continuous waste tyre pyrolysis plant
Fully continuous waste tyre pyrolysis plant
It is common that it is hard to handle large scale waste tires. It is a big problem we are facing.Waste tyre not only pollution environment ,but also harm for our helth.

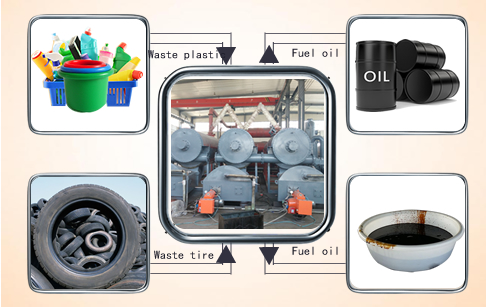

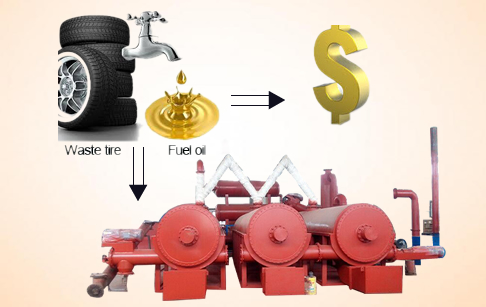

Now you can choose the continuous tyre pyrolysis plant. Our company manufactures the plant and it can convert waste tyre into tyre oil,carbon black and steel wire.

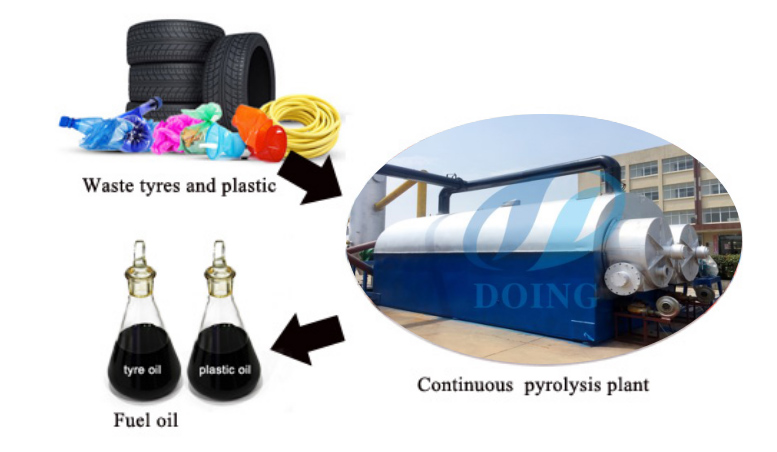

Also, numerous technological breakthroughs happen to be manufactured in the recycling of waste tyres and plastic into various usable products. Probably the most popular and very successful technologies available today for tyre recycling is referred to as pyrolysis. The continuous pyrolysis plant which is used for this process is named continuous waste tyre pyrolysis plant.
pyrolysis plant
Fully continuous waste tyre pyrolysis plant

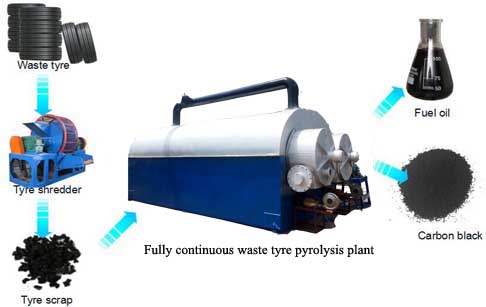

In the pyrolysis process of fully continuous waste tyre pyrolysis plant , the whole or shredded tyre is heated in a reactor vessel under an oxygen-free atmosphere. The tyre melts in the reactor. The tyre polymers break down into smaller molecules which eventually vaporize and exit the reactor. These vapors may then be burned to produce power or condensed into an oil-like liquid which can then be used as a fuel. The larger molecules that cannot be condensed remain as a gas; this gas is used to provide heat for the process.


Fully continuous waste tyre pyrolysis plant technical data

No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black

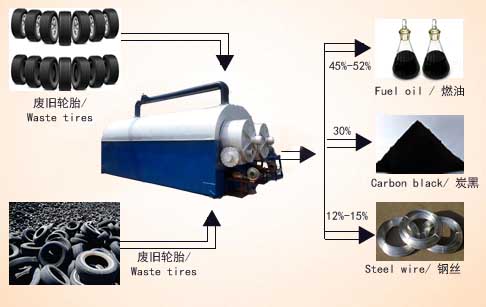

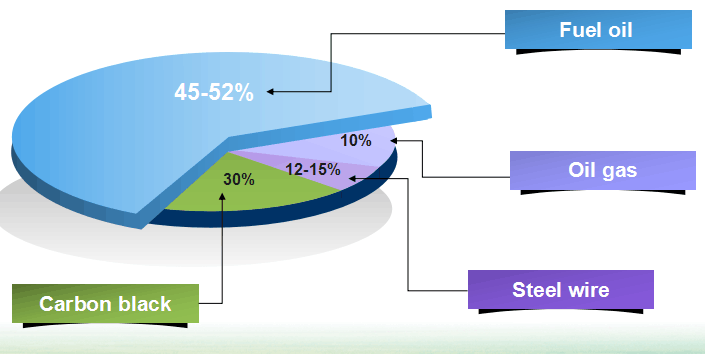

Fully continuous waste tyre pyrolysis plant final product
waste tyre recycling pyrolysis plant


Fuel Oil (45% to 52%)
continuous pyrolysis plant

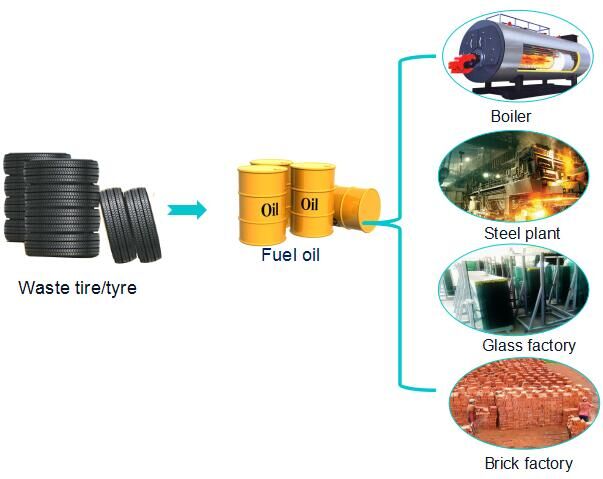

Fuel oil application
The main application of oil products produced by Doing continuous waste tyre pyrolysis plant  is the fuel oil that is wide used for industrial and commercial purposes. 45% to 52% oil of the amount of recycled scrap tyres can be carried with licensed tanker trucks.


Steel Wire (12% to 15%)The third product of Doing  fully continuous waste tyre pyrolysis plant  is steel wire, the quantity of steel wire is about 10% to 15% according to tyre quality. It is very easy to sell steel wire  in local market.

Carbon Black  (30% )
The second product of Doing fully continuous waste tyre pyrolysis plant is carbon black. The quantity of carbon black is about 30% to 35% according to tyre quality. The use of carbon black is as a chemical strengthener in rubber and coloring agent in pigment industries. This carbon black price is very competitive compared to petroleum carbon black, so our pyrolysis carbon black is good option in stead of petroleum carbon black.

Oil gas (About 10%)
We get about 10% oil gas during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.
