Tyre oil pyrolysis plant
Tyre oil pyrolysis plant

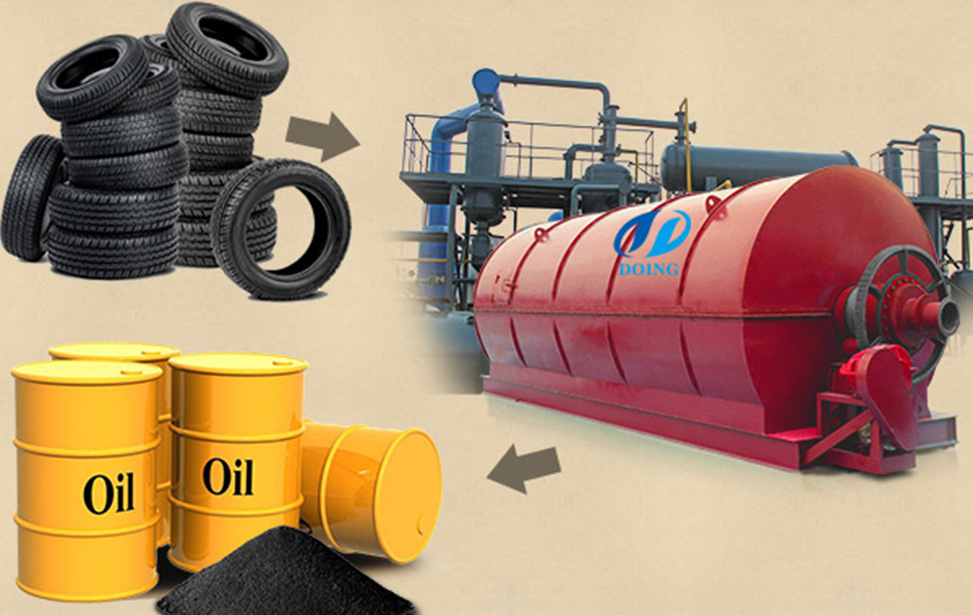

Tyre oil pyrolysis plant of Doing can turn waste tyre to oil through pyrolysis .
Pyrolysis is the decomposition of organic compounds under oxygen free (anaerobic) atmosphere that produces gas, oil, carbon black and steel. Efficient industrial Pyrolysis is a process to treat the rubber and industrial tyre wastage as well.
Tyre oil pyrolysis plant technical data
Technical parameter of tyre oil pyrolysis plant |
No. |
Items |
Contents |
1 |
Equipment type |
DY-1-6 |
DY-1-8 |
DY-1-10 |
2 |
Raw material |
Waste tyre |
Waste tyre |
Waste tyre |
3 |
Structural form |
Horizontal rotation |
Horizontal rotation |
Horizontal rotation |
4 |
24-hour Capacity |
6 ton |
8 ton |
10 ton |
5 |
Oil yield |
2.7-3.3ton |
3.6 -4.4ton |
4.5 -5.5ton |
6 |
Operating pressure |
Normal |
Normal |
Normal |
7 |
Material of pyrolysis Reactor |
Q245R |
Q245R |
Q245R |
8 |
Thickness of pyrolysis Reactor |
16mm |
16mm |
16mm |
9 |
Rotate speed of pyrolysis Reactor |
0.4turn/minute |
0.4turn/minute |
0.4turn/minute |
10 |
Total power |
19KW |
19KW |
19KW |
11 |
Mode of cooling |
Water cooling |
Water cooling |
Water cooling |
12 |
Cooling area of condenser |
100sqm |
100sqm |
100sqm |
13 |
Kind of transmission |
Internal gear drive |
Internal gear drive |
Internal gear drive |
14 |
Noise dB(A) |
≤85 |
≤85 |
≤85 |
15 |
Size of Reactor(D×L) |
2200×6000 |
2200×6600 |
2600×6600 |
16 |
Working form |
Intermittent operation |
Intermittent operation |
Intermittent operation |
17 |
Delivery time |
20days |
20days |
20days |
18 |
Weight |
27T |
30T |
35T |
Prepared by customer about tyre oil pyrolysis plant |
No. |
Item |
Consumption |
1 |
Coal(for choice) |
500kg/day |
2 |
Wood(for choice) |
800kg/day |
3 |
Natural gas(for choice) |
100-150kg/day |
4 |
Oil(for choice) |
300-350kg/day |
5 |
Electricity |
244kwh/day |
6 |
Water(recycled) |
60㎥ /month |
7 |
Total power |
19kw |
8 |
Land area |
35m*15m |
Tyre oil pyrolysis plant fina product and application

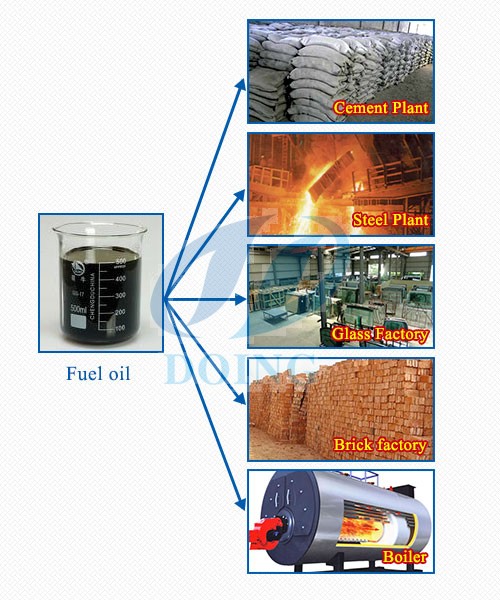

Fuel oil from tyre oil pyrolysis plant
A.power plant factory
B.glass factory
C.cement factory
C.cement factory
E.boiler factory
G.central heating factory
Carbon black from tyre oil pyrolysis plant
A.electric cable jacketing
B.conveyor ban
C.hose and doormat
D.black nylon bag
E.rubber additive
F.automatic spare parts
G.heat isolation
