Used tyre pyrolysis plant features

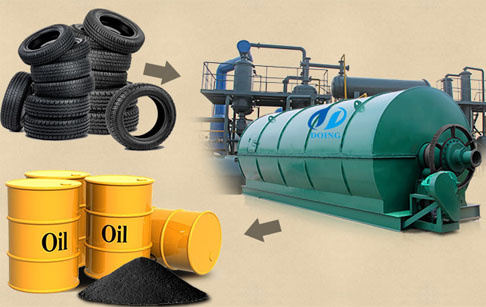

Used tyre pyrolysis plant
1. The complete set of unit produces no smoke and smell with favorable effects of environmental protection.
2. The pressure release device operates through water circulation, which greatly improves the security of the system.
3. The release of pressure during the production dramatically increases the output within certain time and meanwhile improves the quality of oil.
4. The heating system adopts hot air heating technology, which improves the safety performance of production and heating efficiency.
5. High efficiency fuel gas heating system. When the heated gas reaches 150 during refining, a large amount of gas will be generated: through methane to butane
6.Whole tyre feed, no need to break, which reduces cost.
Used tyre pyrolysis plant technical data
waste plastic pyrolysis to fuel oil machine technical data
Technical parameter of used tyre pyrolysis plant |
No. |
Items |
Contents |
1 |
Equipment type |
DY-1-6 |
DY-1-8 |
DY-1-10 |
2 |
Raw material |
Waste tyre |
Waste tyre |
Waste tyre |
3 |
Structural form |
Horizontal rotation |
Horizontal rotation |
Horizontal rotation |
4 |
24-hour Capacity |
6 ton |
8 ton |
10 ton |
5 |
Oil yield |
2.7-3.3ton |
3.6 -4.4ton |
4.5 -5.5ton |
6 |
Operating pressure |
Normal |
Normal |
Normal |
7 |
Material of pyrolysis Reactor |
Q245R |
Q245R |
Q245R |
8 |
Thickness of pyrolysis Reactor |
16mm |
16mm |
16mm |
9 |
Rotate speed of pyrolysis Reactor |
0.4turn/minute |
0.4turn/minute |
0.4turn/minute |
10 |
Total power |
19KW |
19KW |
19KW |
11 |
Mode of cooling |
Water cooling |
Water cooling |
Water cooling |
12 |
Cooling area of condenser |
100sqm |
100sqm |
100sqm |
13 |
Kind of transmission |
Internal gear drive |
Internal gear drive |
Internal gear drive |
14 |
Noise dB(A) |
≤85 |
≤85 |
≤85 |
15 |
Size of Reactor(D×L) |
2200×6000 |
2200×6600 |
2600×6600 |
16 |
Working form |
Intermittent operation |
Intermittent operation |
Intermittent operation |
17 |
Delivery time |
20days |
20days |
20days |
18 |
Weight |
27T |
30T |
35T |
Prepared by customer about used tyre pyrolysis plant |
No. |
Item |
Consumption |
1 |
Coal(for choice) |
500kg/day |
2 |
Wood(for choice) |
800kg/day |
3 |
Natural gas(for choice) |
100-150kg/day |
4 |
Oil(for choice) |
300-350kg/day |
5 |
Electricity |
244kwh/day |
6 |
Water(recycled) |
60㎥ /month |
7 |
Total power |
19kw |
8 |
Land area |
35m*15m |
Used tyre pyrolysis plant final product application
fuel oil from waste tyre are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic fatory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory
1.A. Waste plastics, Used bottles,used tyres, used bags, farming waste , other
B.Medical waste
C.oil sludge , waste oil ,black oil ,oily solid
D.other living waste
