Waste wire stripping machine introduction and feature

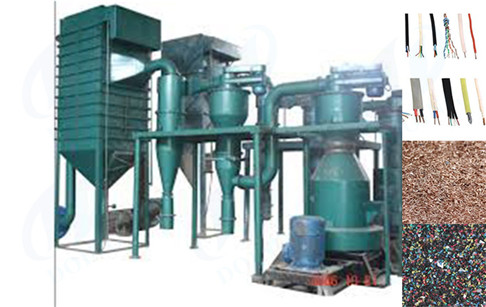

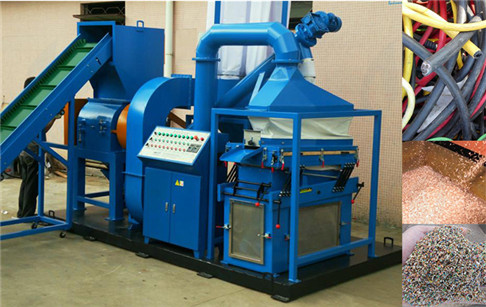

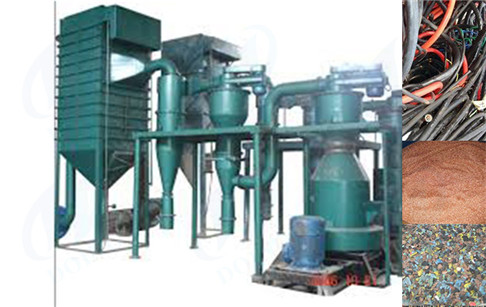

Waste wire stripping machine
Waste wire stripping machine is a kind of environmeng friendly recycling machine ,can be used to separate the copper and plastic material.The machine has unique structure, big processing capacity and lower power consumption. With high separation rate, controlled by PLC system, the separation is conducted by each component coordinately.Waste wire stripping machine has not only improved the purity of metal (copper or aluminium), but also reduced the pollution to environment.
Waste wire stripping machine technical data
Model |
Voltage |
Power |
Capacity |
Dimension |
Weight |
DYTM-400 |
380V |
22.45 kw |
150-200kg/H |
2700*1900*2300(mm) |
1200kg |
DYTM-600 |
380V |
36 kw |
300-400kg/H |
3500*1900*2700(mm) |
3000kg |
DYTM-800 |
380V |
75 kw |
500-600kg/H |
5500*4500*3300(mm) |
8000k |
Waste wire stripping machine application
Waste wire stripping machine main application to all kinds of waste copper line will be separated into tiny copper rice and PVC, automobile electrical route or car bottom line, motorcycle electric line, computer case line and communication cable, etc. After crushing processing , separation copper and PVC will be sorting out.
