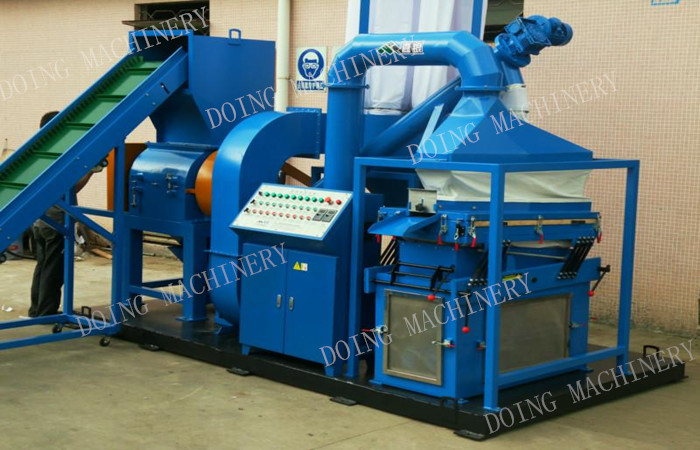

Copper wire recycling machine

1.Compact structure, reasonable layout, stable performance and low noise. 2. Uniform feed full production line adopts PLC control, coordinated operation. 3. three-stage crushing, handling capacity per hour 1200kg. Crushing chamber with circulating water temperature control and noise reduction. 4.full production line using negative pressure feeding effectively reduce dust overflow.Back feeding system so crushed more efficient. 5. Airflow separation equipment sorting rate of 97 to 99%. 6. Pulse dust removal equipment efficiency up to 99.99%.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2
oilmachine@doinggroup.com

Chat Online Leave A Message

1.Features of PCB Recycling Machine

1.Compact structure, reasonable layout, stable performance and low noise.

2. Uniform feed full production line adopts PLC control, coordinated operation.

3. three-stage crushing, handling capacity per hour 1200kg.

Crushing chamber with circulating water temperature control and noise reduction.

4.full production line using negative pressure feeding effectively reduce dust overflow.Back feeding system so crushed more efficient.

5. Airflow separation equipment sorting rate of 97 to 99%.

6. Pulse dust removal equipment efficiency up to 99.99%.

7. high voltage electrostatic sorter sorting the finer more efficient, effective control of non-ferrous metal loss.

8. Complete production line of high disposal bridge and guardrail convenient access real-time monitoring and maintenance of the equipment.

9. waste and scrap the device settings hydraulic system to facilitate the replacement of wearing parts, improve

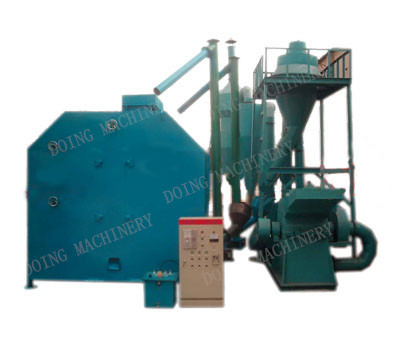

PCB Recycling Machine

2.Technical Data of PCB Recycling Machine

<

Model	Voltage	Power	Capacity	Dimension	Weight
DYTM-400	380V	22.45 kw	150-200kg/H	270019002300(mm)	1200kg
DYTM-600	380V	36 kw	300-400kg/H	350019002700(mm)	3000kg
DYTM-800	380V	75 kw	500-600kg/H	550045003300(mm)	8000k

3.Application of PCB Recycling Machine

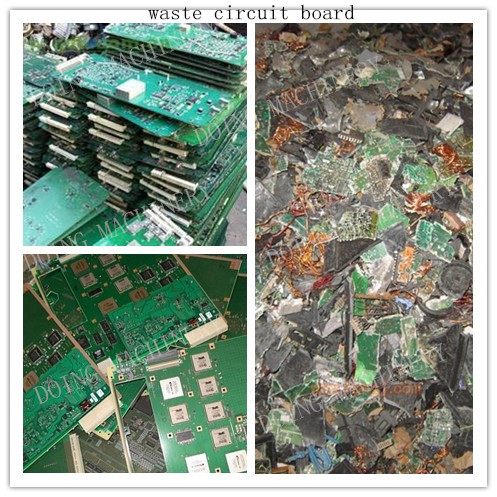

PCB Recycling Machine is applicable to recycle mother boards of PC,waste circuit boards from mouse, telephone and TV, trimming of copper clad laminate (CCL) etc.
