1.Whole tyre feed, no need to break, which reduces cost.
Adopt multilevel cooling circulation to get more fuel oil.
2. Discharge process through pulse dust removal processing, no dust emissions.
3. Easy operation, high efficiency and 2-3 people to operate.
1.Whole tyre feed, no need to break, which reduces cost.
Adopt multilevel cooling circulation to get more fuel oil.
2. Discharge process through pulse dust removal processing, no dust emissions.
3. Easy operation, high efficiency and 2-3 people to operate.
4.Plant adopts fully automatic submerged arc welding process, through x-ray detection, to improve the security of plant.
waste plastic pyrolysis to fuel oil machine technical data
Technical parameter of waste plastic pyrolysis to fuel oil machine
No.
Items
Contents
1
Equipment type
DY-1-6
DY-1-8
DY-1-10
2
Raw material
Waste plastic
Waste plastic
Waste plastic
3
Structural form
Horizontal rotation
Horizontal rotation
Horizontal rotation
4
24-hour Capacity
6 ton
8 ton
10 ton
5
Oil yield
2.7-3.3ton
3.6 -4.4ton
4.5 -5.5ton
6
Operating pressure
Normal
Normal
Normal
7
Material of pyrolysis Reactor
Q245R
Q245R
Q245R
8
Thickness of pyrolysis Reactor
16mm
16mm
16mm
9
Rotate speed of pyrolysis Reactor
0.4turn/minute
0.4turn/minute
0.4turn/minute
10
Total power
19KW
19KW
19KW
11
Mode of cooling
Water cooling
Water cooling
Water cooling
12
Cooling area of condenser
100sqm
100sqm
100sqm
13
Kind of transmission
Internal gear drive
Internal gear drive
Internal gear drive
14
Noise dB(A)
≤85
≤85
≤85
15
Size of Reactor(D×L)
2200×6000
2200×6600
2600×6600
16
Working form
Intermittent operation
Intermittent operation
Intermittent operation
17
Delivery time
20days
20days
20days
18
Weight
27T
30T
35T
Prepared by customer about waste plastic pyrolysis to fuel oil machine
No.
Item
Consumption
1
Coal(for choice)
500kg/day
2
Wood(for choice)
800kg/day
3
Natural gas(for choice)
100-150kg/day
4
Oil(for choice)
300-350kg/day
5
Electricity
244kwh/day
6
Water(recycled)
60㎥ /month
7
Total power
19kw
8
Land area
35m*15m

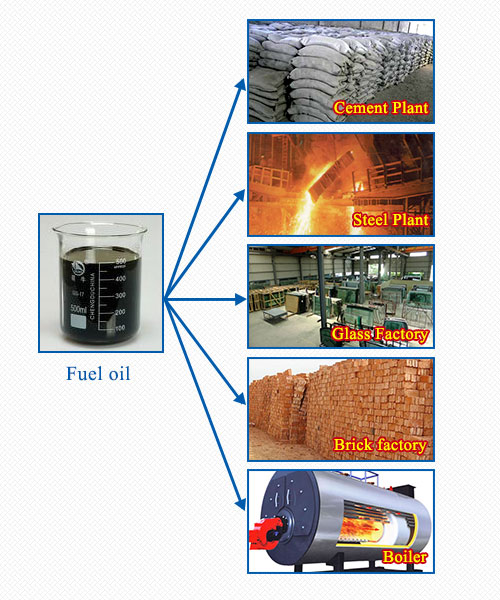

waste plastic pyrolysis to fuel oil machine final application
fuel oil from waste tyre are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic fatory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory
1.A. Waste plastics, Used bottles,used tyres, used bags, farming waste , other
B.Medical waste
C.oil sludge , waste oil ,black oil ,oily solid
D.other living waste
