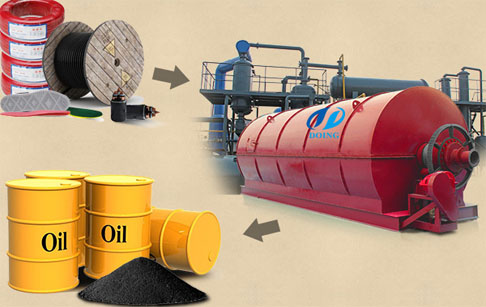

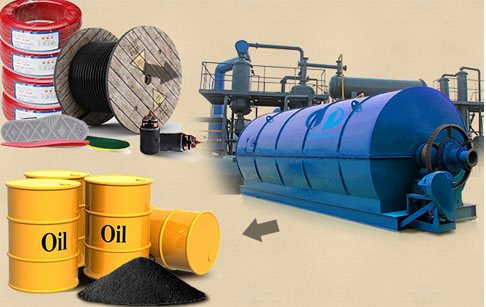

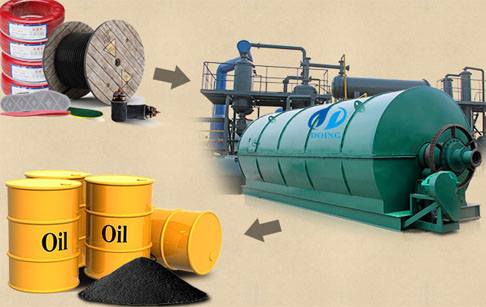

How is rubber recycled, let’s see the pyrolysis process of waste rubber recycling machine

waste rubber recycling machine

First step, make the reactor rotate clockwise 0.4 per minute, put raw materials into reactor automatically, close the feeding door tightly.Second step, burn the fuel materials (like coal, wood, natural gas, oil etc) in the furnace. The reactor will be heated slowly. When the temperature reaches nearly 180℃, the oil gas will come out and then go to the cooling system and liquefying to oil. Some incondensable gas which can’t cool down will flow to furnace through a pipe which can be used to heat the reactor.
In this way, you can save much more energy as you use energy for heating only in the first 2 hours. After the first 2 hours, the main fuel is gas. After pyrolysis, all the oil gas will come out from reactor, the temperature will fall down. Then make the rotate anticlockwise, carbon black discharging begins. Last step, when the temperature falls to 100℃, worker can open the reactor door and take steel out.

Main Feature of waste rubber recycling machine:
1. 100% waste rubber recycling.
2. Environmental friendly: No chemical ingredients are used during processing. No soil, water and air pollution is observed during and after the process.

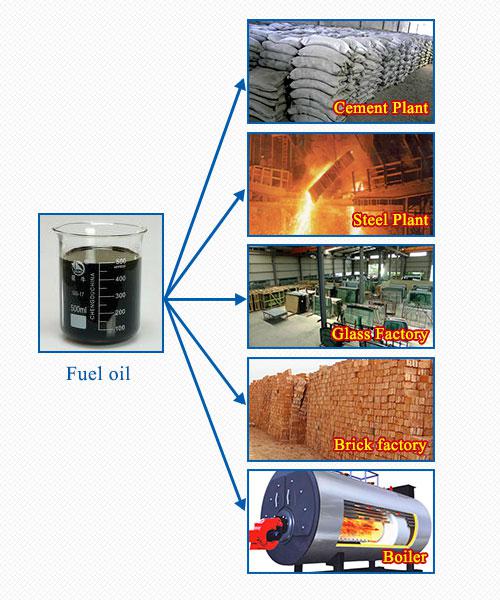

3. Generates lots of valuable products out of waste, all of the outlet products can be used as industrial raw materials with high value.
4. Apply the most advantage waste rubber recycling technology in the world.
5. The system creates an alternative source of energy to replace petroleum products and natural gas.
6. We supply plants with capacities of 5 ton /day to 10 ton/day.

Technical parameter of waste rubber recycling machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste rubber	Waste rubber	Waste rubber
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about waste rubber recycling machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m
