Combination tire cutter
Combination tire cutter
Combination tire cutter
Combination tire cutter

Combination tire cutter

Combination tire cutter is mainly consisting of five parts: tire ring cutter, tire strip cutter, steel wire separator, t...

Get Price
Online Chat

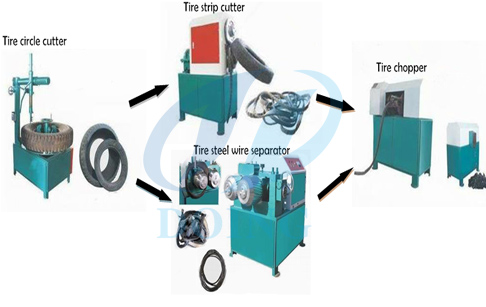

Combination tire cutter is mainly consisting of five parts: tire ring cutter, tire strip cutter, steel wire separator, tire block cutter and rubber powder production equipment. The final purpose is to cut big whole tires into 3-5cm size small pieces.


Combination tire cutter
Combination tire cutter
(1)    Tire ring cutter is used for cutting the tire steel wire circle (two tire sidewalls) from tire body for further processing;

Technical Parameters of Tire ring cutter
Motor Power 3kw
Capacity(kg/h) 300-500kg/h
Rotation speed 15r/min
Dimension 1200*1400*1300
Weight 600kg
Tire processing size 650-1200mm

(2) Tire strip cutter is used for cutting the tire body to tire strips for tire block cutter;

Technical Parameters of Tire ring cutter
Motor Power 3kw
Capacity(kg/h) 300-500kg/h
Rotation speed 15r/min
Dimension 1200*1400*1300
Weight 600kg
Tire processing size 650-1200mm

 (3) Tire steel wire separator is used for separating the steel wire from the tire sidewalls;

Technical Parameters of Tire steel wire separator
Capacity 65 tires/hour
Motor power 15kw
Rotation speed 1440r/min
Machine weight 1300kg
Dimension 1500*900*1300mm(L*W*H)

(4) Tire block cutter is used for cutting the tire strips to tire blocks (3 - 5cm sizes);

Technical Parameters of Tire block cutter
Motor Power 7.5kw
Capacity 1000kg/h
Rotation speed 1440r/min
Dimension 750×750×1200mm
Weight 800kg
