Carbon black grinding machine is for process crude carbon black produced from tire/plastic pyrolysis process to fine powder used for carbon black required products. This grinding machine is mainly used to pulverize various nonflammable and unexplosive materials less than 9.3-scale Moh’s hardness and 6% humidity, in the industries of glass, rubber, pesticide, ceramic, paint, phosphate fertilizer and paper-making etc. These materials include pencil stone, barite calcite, limestone, marble, manganese ore, iron ore, clay, feldspar, bolus alba, bentonite and so on. It has high yield, wide application, small power consumption, easy operation and steady performance, which make it become the ideal equipment of pulverizing industry.

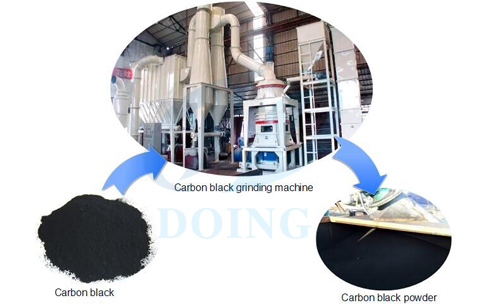

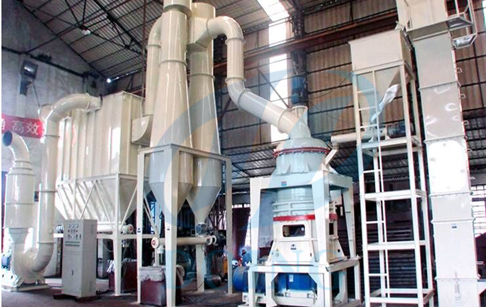

Carbon black grinding machine
Powder grinding mill: Host motor through a speed reducer drives the spindle and the turntable, turntable driven by the column pin dozens of ring roll in the ring rolling and rotating raceway. Bulk material by hammer crusher broken into small particles by the hoist into a storage bin, electromagnetic vibrating feeder will even materials to middle upper turntable, material under the centrifugal force scattered to the circumference, and fall into the mill race was ring roller stamping, rolling, polishing and grinding ring,
The first layer of crushed material in the second layer and the third layer, suction high-pressure centrifugal fan external air suction machine, and after the meal third layers of crushed into powder selecting machine.
The turbine rotating powder machine in the coarse particles fall heavy grinding, fine powder with airflow into the cyclone powder collector and the lower part of the discharge valve discharge is finished, the air flow with a small amount of fine dust through the pulse dust collector after purification by the blower and exhaust muffler
|Motor power (kw)||5.5||7.5||11-15||18.5-22||20-30||45||75||130|
|Roller width (mm)||220||250||280||300||336||400||500||650|
|Roller diameter (mm)||290||360||400||500||650||750||850||1250|
