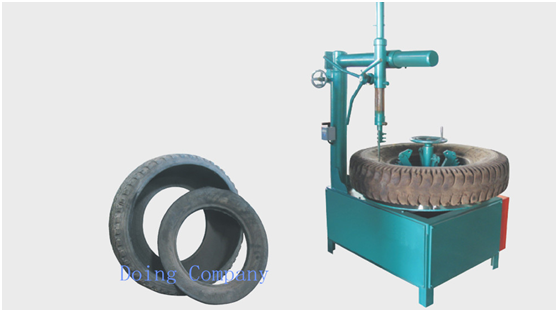

Circle rubber cutter
Application of circle rubber cutter
Circle cutting machine is used to separate the tire side from the whole tire. Now the steel wire from tire sides of vacuum tires is thick and hard to curve, so before feeding the waste tires into reactor, it is better to cut the tire sides down. Besides, this part of tire has good value, circle cutting machine helps collecting these thick steel wires.
Technical parameters of circle rubber cutter
Model |
Production |
Power |
Size of Tires |
Dimension |
QKF850 |
2.01ton/h |
2.2KW |
φ82~1200mm |
1200*850*1405mm |
Working principle of circle rubber cutter
Place the waste tire on the round terrace; rotate the hand wheel so that thinner side of the tire can be locked by the four claws frame. Then turn on the power, the terrace will begin to rotate with the tire, and then make the cuttingknife cut into the tire according to the need until cut down the whole sidewall.

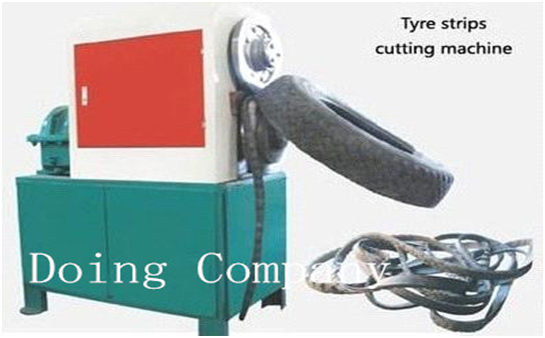

Rubber strip cutting machine
Application of rubber strip cutting machine
Rubber strip cutting is used with circle cutting machine and could cut the tires without tire sides into strips.
Technical parameters of rubber strip cutting machine
model |
capacity |
Power |
Size of Tire |
Dimension |
QT380 |
1ton/h |
4KW |
≤φ1200mm |
1330×700×1580mm |

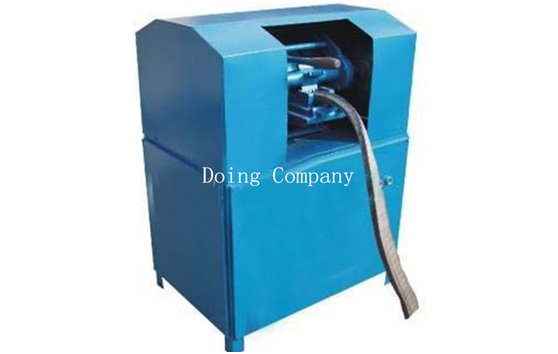

Block rubber cutter
Application of block rubber cutter
Waste tire block cutting machine is utilized to process the rubber stripes into rubber blocks with a certain size, which is good for latter production and improving work efficiency. It is generally used along with bar cutter, and it is essential equipment for waste tires processing.
Technical parameters of block rubber cutter
Model |
Power |
Weight |
Size of Tire |
Dimension |
QK200 |
7.5KW |
450KG |
≤φ1200mm |
800*810*1070mm |

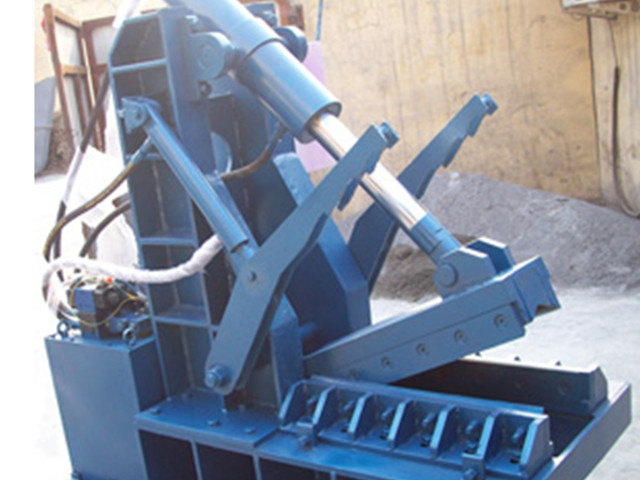

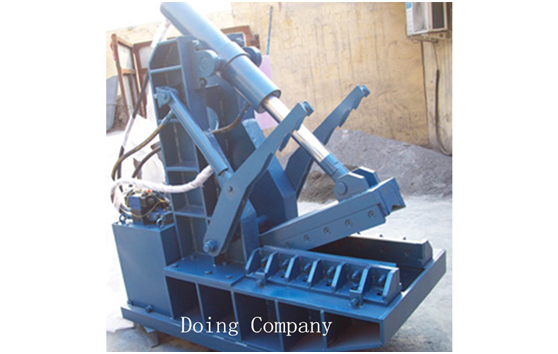

Hydraulic cutting machine
Application of hydraulic cutting machine
Hydraulic cutting machine is used to process the waste tires and cut the tires into pieces and meets the demands of clients who have big size tires.
Technical Parameters of hydraulic cutting machine
Model |
Power |
Weigh |
Size of Tire |
Dimension |
QDY 700 |
5.5KW |
1300 |
φ800~1200mm |
1720*750*1880mm |
