For our plastics continuous pyrolysis plant, it needs to shred plastics into less than 50mm granules. To help our client...

Get Price
Online Chat
For our plastics continuous pyrolysis plant, it needs to shred plastics into less than 50mm granules. To help our clients to continuously use our pyrolysis plant, we also offer plastics shredder. Plastics shredder can help our customer to crush all kinds of plastics into granules, for example, thin film/diaphragm film/membrane/bottles//electrical appliances insulation,galvanic isolation materials//reticule/water pipes/oil tank,oil drum/drink bottle/calcium feeding-bottle/ milk bottle/staple etc

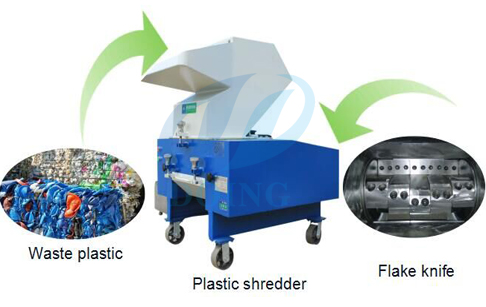

plastic shredder
Plastic shreder of continuous waste plastic pyrolysis plant
Working process of plastic shredder of continuous waste plastic pyrolysis plant
plastic shredder of continuous waste plastic pyrolysis plant

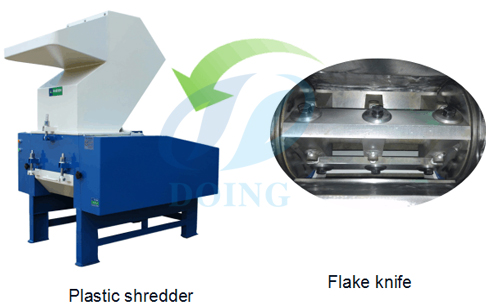

Flake knife type high speed shredder for continuous  waste plastic pyrolysis plant
continuous waste plastic pyrolysis plant
Claw knife type high speed shredder for continuous waste plastic pyrolysis plant
1: Flake knife type high speed shredder for continuosu waste plastic pyrolysis plant

No. Model number Motor/power Crushing ability(kg/h) Crushing chamber(MM) Cutter frame Cutter number
1 DY-3F 3HP/2.2KW 70-100 180×160 3PCS fixed：2PCS   rotary：3PCS
2 DY-5F 5HP/4KW 100-150 290×220 4PCS fixed：2PCS   rotary：6PCS
3 DY-7.5F 7.5HP/5.5KW 120-200 400×250 6PCS fixed：2PCS   rotary：6PCS
4 DY-10F 10HP/7.5KW 150-250 400×250 6PCS fixed：2PCS   rotary：6PCS
5 DY-15F 15HP/11KW 250-350 460×300 6PCS fixed：2PCS   rotary：6PCS
6 DY-20F 20HP/15KW 350-450 515×330 6PCS fixed：2PCS   rotary：6PCS
7 DY-30F 30HP/22KW 450-600 550×400 6PCS fixed：2PCS   rotary：6PCS
8 DY-50F 50HP/37KW 600-800 720×500 9PCS fixed：2PCS   rotary：9PCS
9 DY-75F 75HP/55KW 800-950 940×630 9PCS fixed：4PCS   rotary：9PCS
10 DY-100F 100HP/75KW 950-1100 1100×630 9PCS fixed：4PCS   rotary：9PCS
2:Claw knife type high speed shredder for fully continuous pyrolysis plant

No. Model number Motor/power Crushing ability(kg/h) Crushing chamber(mm) Cutter frame Cutter quantity
1 DY-3C 3HP/2.2KW 70-100 180×160 3PCS fixed：2PCS   rotary：9PCS
2 DY-5C 5HP/4KW 100-150 290×220 5PCS fixed：2PCS     rotary：15PCS
3 DY-7.5C 7.5HP/5.5KW 120-200 400×250 7PCS fixed：2PCS   rotary：21PCS
4 DY-10C 10HP/7.5KW 150-250 400×250 7PCS fixed：2PCS   rotary：21PCS
5 DY-15C 15HP/11KW 250-350 460×300 8PCS fixed：2PCS   rotary：24PCS
6 DY-20C 20HP/15KW 350-450 515×330 9PCS fixed：2PCS   rotary：27PCS
7 DY-30C 30HP/22KW 450-600 550×400 10PCS fixed：2PCS   rotary：30PCS
8 DY-50C 50HP/37KW 600-800 720×500 9PCS fixed：2PCS   rotary：27PCS
9 DY-75C 75HP/55KW 800-950 940×630 12PCS fixed：4PCS   rotary：36PCS
10 DY-100C 100HP/75KW 950-1100 1100×630 14PCS fixed：4PCS   rotary：42PCS
