Automatic and continuous waste tire pyrolysis plant

Continuous Waste Tyre Pyrolysis Plant

Automatic and continuous waste tire pyrolysis plant is very popular in recent days, it can create wealth and solve environmental pollution. In most countries people handle waste tires and plastic with landfill or burning. But it causes serious pollution to environment and could probably lead to fire disaster or disease spread. By contrast, automatic and continuous waste tire pyrolysis plantpyrolysis plant is a green way for waste management.

Chat Online Leave A Message
continuous tire pyrolysis plant

Automatic and continuous waste tire pyrolysis plant is very popular in recent days, it can create wealth and solve environmental pollution. In most countries people handle waste tires and plastic with landfill or burning. But it causes serious pollution to environment and could probably lead to fire disaster or disease spread. By contrast, automatic and continuous waste tire pyrolysis plantpyrolysis plant is a green way for waste management.
automatic pyrolysis plant

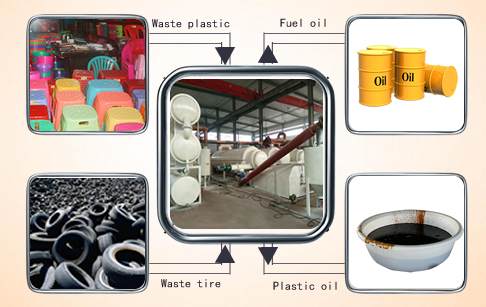

Raw material of automatic and continuous waste tire pyrolysis plant
The raw materials can be used tires, waste plastic, scrap rubber which can be easily found from rubbish collecting station. The cost of raw materials is low, even you can get subsidy by solving pollution caused by garbage in many countries. Meanwhile the fuel oil finds a good market in many industry fields.

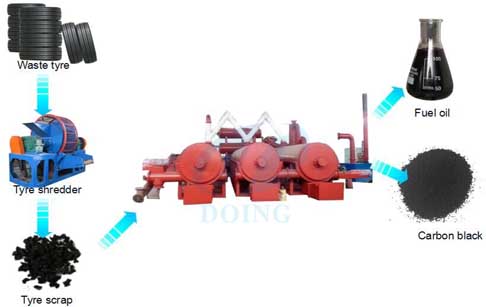

Automatic and continuous waste tire pyrolysis plant working process
Before pyrolysis ,whole tire need to be shredded  into small piece. We put waste tire piece can be fed directly into automatic and continuous waste tire pyrolysis plant  through the feeding door. Our feeding door has screw inside, so it can help you easily convey the waste tire granules into our reactor No 1, then all the waste tire can be fully decomposed under the high temperature through reactor No 1 to reactor No 2,then to reactor No 3...Until all the tire fully pyrolysed, then all the carbon black powder will be discharged automatically to the carbon black tank.

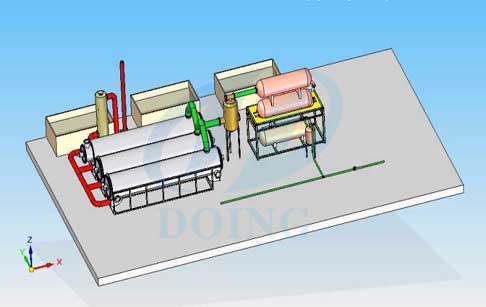

continuous pyrolysis plant

Automatic and continuous waste tire pyrolysis plant working process




Automatic and continuous waste tire pyrolysis plant technical data

No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black

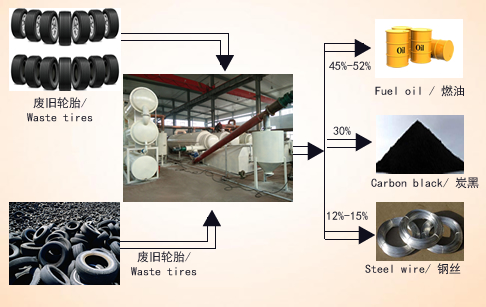

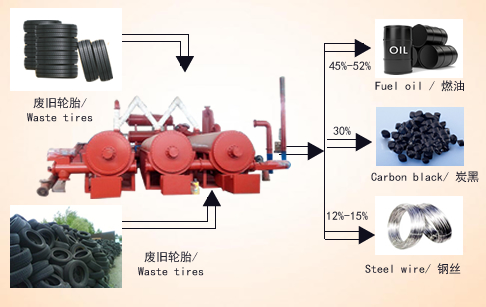

Automatic and continuous waste tire pyrolysis plant final product application

Fuel oil (45% to 52%) of automatic and continuous waste tire pyrolysis plant
The main oil product produced by our recycling application is the fuel oil that is wide used for industrial and commercial purposes.Such as power plant factory,glass factory,cement factory,ceramic fatory.
Automatic and continuous waste tire pyrolysis plant
Fuel oil  application


Carbon black (30% to 35%) of automatic and continuous waste tire pyrolysis plant
Carbon Black is the main product recycled by Pyrolysis technology. The amount of recycled carbon black is 30% to 35% of the total amount of scrap plastics recycled in the system






Leave A Message About Automatic and continuous waste tire pyrolysis plant

Continuous Pyrolysis Plant Products

Refined tyre oil can be directly used in tractor

tyre to oil

Continuous Waste Tyre Pyrolysis Plant Solutions

Pyrolysis process flow chart

pyrolysis plant

Continuous Pyrolysis Plant
