Tyre pyrolysis oil to diesel distillation plant
Tyre pyrolysis oil to diesel distillation plant
Tyre pyrolysis oil to diesel distillation plant
Tyre pyrolysis oil to diesel distillation plant

Tyre pyrolysis oil to diesel distillation plant

The oil output of tyre pyrolysis oil to diesel distillation plant is about 85%, the rest includes 10% bitumen and 5% exc...

Get Price
Online Chat

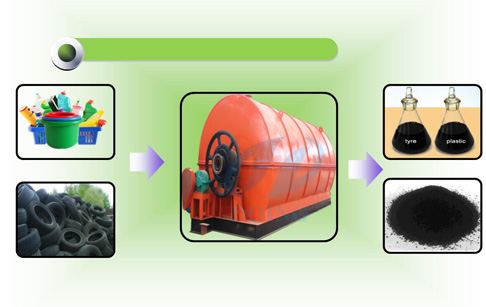

tyre pyrolysis plant
Tyre pyrolysis plant

The tyre pyrolysis plant adopts the new green pyrolysis technology. Through the use of the tyre pyrolysis oil plant, waste tyres can be effectively converted to fuel oil, carbon black and steel wire. The oil from tyres pyrolysis plant can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries etc. And it can be used for generators to get electricity.
tyre pyrolysis oil

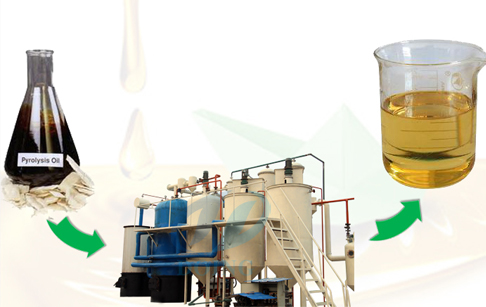

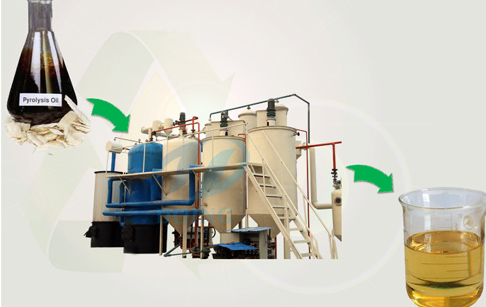

Tyre pyrolysis oil to diesel distllation plant

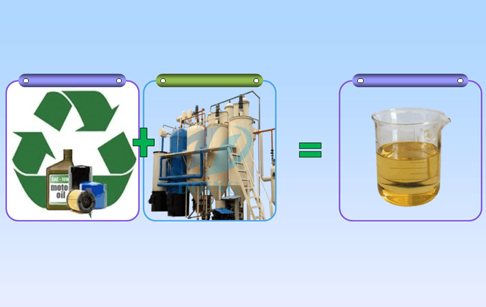

Doing tyre pyrolysis oil to diesel distillation plant can treat a variety of waste engine oil, waste tyre pyrolysis oil and waste plastic pyrolysis oil and get high quality diesel oil. The diesel oil got from this plant in high quality and can be used for tractors, trucks, generators, boilers, agricultural vehicles etc.

waste oil to diesel plant

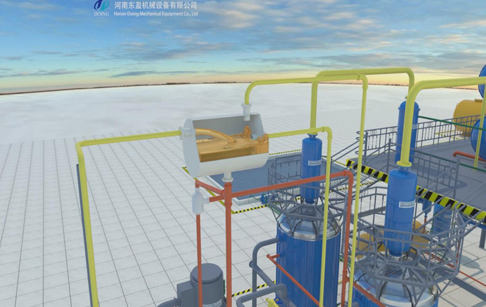

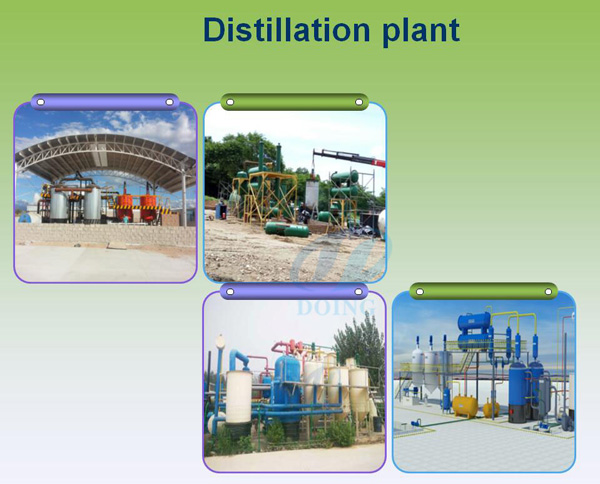

Waste tyre pyrolysis oil to diesel distillation plant project case

The oil output of tyre pyrolysis oil to diesel distillation plant is about 85%, the rest includes 10% bitumen and 5% excess gas. The excess gas will recycle to furnace as the auxiliary heating fuel.

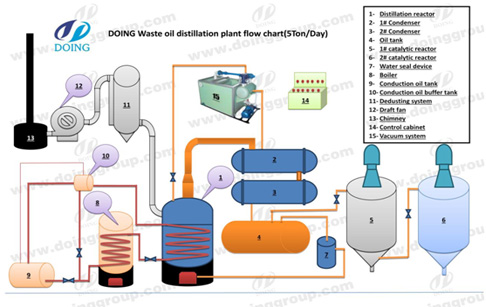

The tyre pyrolysis oil to diesel distillation plant with a high yield project is easy to operate:

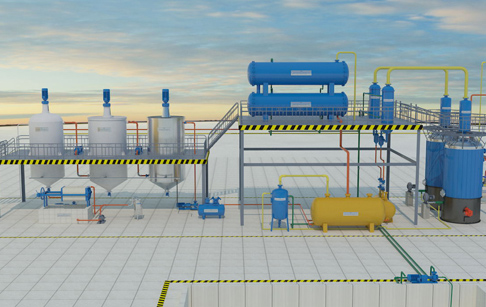

pyrolysis oil distillation plant
Tyre pyrolysis oil to diesel distillation plant
1. Feeding waste oil into reactor, and start heating;
2. Control temperature to ensure get good quality diesel, and cooling oil gas to get diesel;
3. Pump diesel to odor removal and color removal systems automatically;
4. Get good quality diesel.

Doing tyre pyrolysis oil to diesel distillation plant is the latest technology in China pyrolysis industry, we refreshed the design to save heating time and increase oil yield.


Technical data of Tyre pyrolysis oil to diesel distillation plant

Technical parameter of  Tyre pyrolysis oil to diesel distillation plant
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material rubber oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡



Tyre pyrolysis oil to diesel distillation plant final product

The final diesel oil of tyre pyrolysis oil to diesel distillation plant  can used for tractors, trucks, ships and generator etc:
tyre pyrolysis oil to diesel
Diesel fuel application
