Contiunuous production waste tire pyrolysis plant
Contiunuous production waste tire pyrolysis plant is DoingGroup's latest research and development of pyrolysis equipment...
-
Cell/WhatsApp: +86-135-2669-2320
-
Phone: +86-371-56771821
-
E-mail: market@doingmachinery.com
- Features:
- Technical Data:
- Application:
Contiunuous production waste tire pyrolysis plant

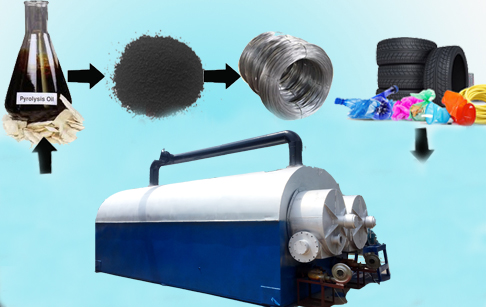

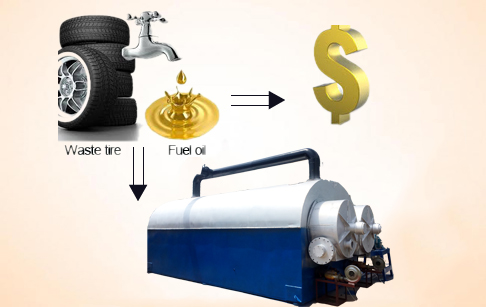

The advantages of contiunuous production waste tire pyrolysis plant are as follows:
Advantage of contiunuous production waste tire pyrolysis plant
2.24 hours of uninterrupted operation, continuous feeding, continuous discharge.
3. Low labor costs, only two workers can be finished.
4 large capacity, you can customize the capacity.

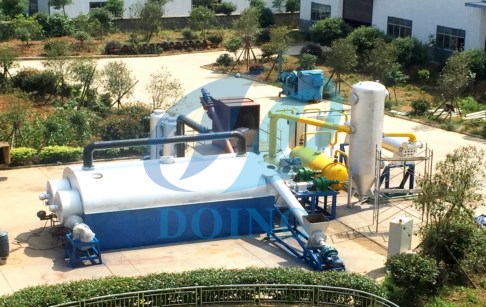

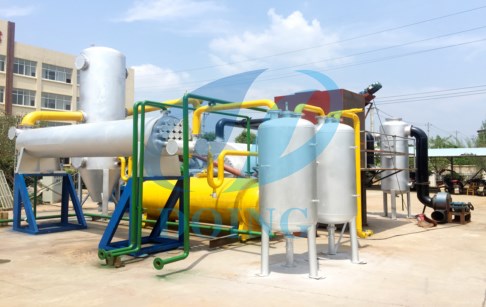

Contiunuous production waste tire pyrolysis plant operation is as follows:
Contiunuous production waste tire pyrolysis plant
Before pyrolysis, the whole tires need to be shredded into small pieces. First, pull out the steel wire in tire sidewall; Then cut the tires into bulks. If the tires diameter less than 1200mm, don’t need this step. And can directly use next comprehensive shredder to cut into small pieces. Crush the tire bulks or diameter less than 1200mm whole tires into 2-5cm small pieces.
2. Feed raw materials
Feeding tire pieces into reactor by feeding system.
3. Heat the reactor
Fire the fuel in the burning room, the fuel could be diesel, natural gas, LPG. The hot air will flow into the reactor for heating. When the inner temperature of the reactor reaches to 100 degree, the oil gas will be generated. Then goes into the buffer tank firstly. In the buffer tank, the heavy particles will be liquefied into heavy oil and drop in the heavy oil tank. The light oil gas rise up. The buffer tank will reduce the oil gas moving speed and then goes into condensers uniformly.
4. Condensation
In the horizontal cooling system, the oil gas will be liquefied into fuel oil. A large scale of oil gas will be liquefied into fuel oil and enter oil tank. In the hydroseal, the combustible gas will be desulfurated and cleansed. Then recycled to the reactor to provide heat, saving a lot of fuel. Hot smoke gets out from the reactor through smoke cleaning system. system.The clean smoke can meet the EU environmental protection and emission standards.
5. Discharge
The cabon black with steel wire will be discharged by the auto screw discharger. Through the magnetic separator, the steel wire and carbon black will be separated, and transported into the storage tank.
- Features:
- Technical Data:
- Application:
Technical data of contiunuous production waste tire pyrolysis plant
| No. | Item | Specifications | ||||||
| 1 | Model | DY-C-10 | DY-C-20 | DY-C-30 | DY-C-50 | DY-C-60 | DY-C-80 | DY-C-100 |
| 2 | Cpacity | 10T/D | 20T/D | 30T/D | 50T/D | 60T/D | 80T/D | 100T/D |
| 3 | Power | 35Kw | 50Kw | 65Kw | 80Kw | 90Kw | 105Kw | 120Kw |
| 4 | Working type | Continuous | ||||||
| 5 | Reactor deisgn | Mutiple reactors (The quantity and size depends on the raw material condition) | ||||||
| 6 | Rotating | Internal rotating | ||||||
| 7 | Cooling system | Recycled waster cooling | ||||||
| 8 | Reactor material | Q245R/Q345R boiler plate | ||||||
| 9 | Heating method | Indireact hot air heating | ||||||
| 10 | Heating fuel | Fuel oil/gas | ||||||
| 11 | Feedstock | Waste tire/plastic/rubber | ||||||
| 12 | Output | Fuel oil, carbon black | ||||||
- Features:
- Technical Data:
- Application:
The structure of contiunuous production waste tire pyrolysis plant determines that it is suitable for large and medium-sized refineries and production plants, with relatively high investment costs and large returns. These gains come mainly from the cracked fuel and carbon black, as well as the wire drawn from the wire drawing machine. They can be used in all aspects of life:

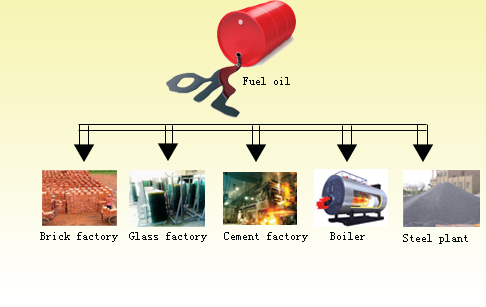

Fuel oil usage
1. Fuel oil: Mainly used in steel plants, boiler heating, heavy oil generators, cement plants.

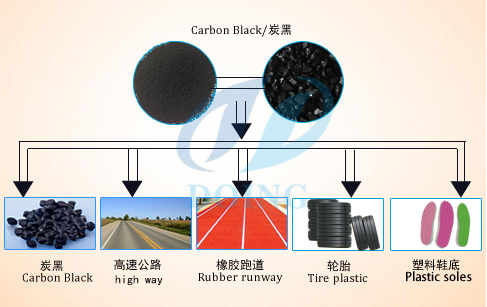

Carbon black usage
2. Carbon black: Mainly used for pressure ball burning and refined milling. Which refined flour and can be used for new tires, rubber soles, pigment production materials.
3. Steel wire: Mainly used for scrap recycling and re-casting.
Fuel oil usage
Carbon black usage
3. Steel wire: Mainly used for scrap recycling and re-casting.
