Continuous Waste Tyre Pyrolysis Plant

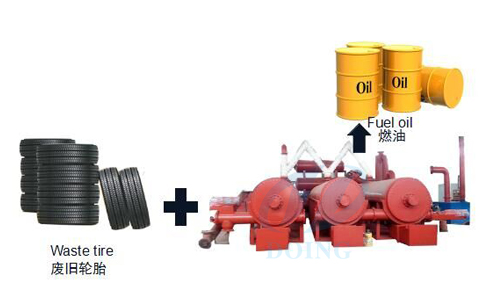

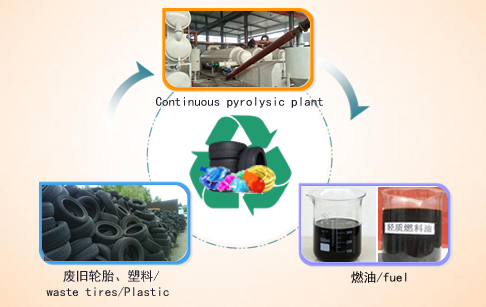

For continuous scale tire pyrolysis unit main raw material is waste tire/tyre.which can be easily available in and part of the world.The raw material is cheaper and can use waste tire ,we get out put from waste as fuel oil,carbon black ,steel wire. Continuous scale tire pyrolysis platn is feasible in technology with small amount of invement,high availability of materials, short recovery period and with bright future, is the ideal choice of ininvesting.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2
oilmachine@doinggroup.com

Chat Online Leave A Message

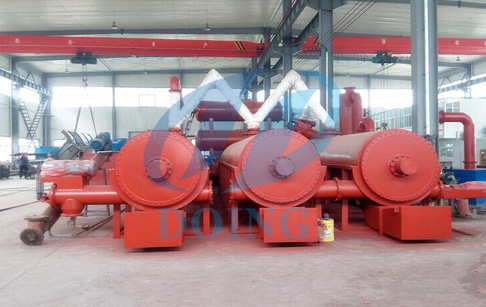

Continuous scale tire pyrolysis unit

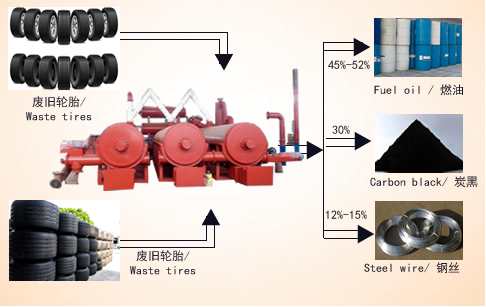

For continuous scale tire pyrolysis unit main raw material is waste tire/tyre.which can be easily available in and part of the world.The raw material is cheaper and can use waste tire ,we get out put from waste as fuel oil,carbon black ,steel wire.
Continuous scale tire pyrolysis platn is feasible in technology with small amount of invement,high availability of materials, short recovery period and with bright future, is the ideal choice of ininvesting.

Continuous scale tire pyrolysis unit advantage

Continuous scale tire pyrolysis unit

1.The continuous reactor: The raw material of the reactor is the special corrosion resistant alloy steel, which can stand the highest temperature of the materials, and the inside of the reactor is equipped with the material forced guiding device and turning device. When the raw material turns around with the reactor, the material in the up side and downside can have the uniform heat.

2. The heating method is also special, because it avoids the open fire. This method can both protect the operator and the reactor itself.

3. The best controll system, which includes temperature control loop, frequency converter, electromechanical equipment and so on.

4. The feeding equipment is automatic, and it is equipped with anti return gas leakage device.

5. The slag discharging device has the combination type discharging machine for liquid and propeller, and there is also the device that can ensure the operator and technicians can check the reactor, in addition, the discharging process is continuous.

6. The flue gas recovery device can recycle the flue gas produced in the working process, and the recycled gas can be used as fuel to heat the reactor, which is energy saving.
7. The sealing device can prevent the waste smoke leaking, and in this way, it can protect the environment.

Continuous scale tire pyrolysis unit technical data

No.	Item	Specifications
1	Model	DY-C-10	DY-C-20	DY-C-30	DY-C-50	DY-C-60	DY-C-80	DY-C-100
2	Cpacity	10T/D	20T/D	30T/D	50T/D	60T/D	80T/D	100T/D
3	Power	35Kw	50Kw	65Kw	80Kw	90Kw	105Kw	120Kw
4	Working type	Continuous
5	Reactor deisgn	Mutiple reactors (The quantity and size depends on the raw material condition)
6	Rotating	Internal rotating
7	Cooling system	Recycled waster cooling
8	Reactor material	Q245R/Q345R boiler plate
9	Heating method	Indireact hot air heating
10	Heating fuel	Fuel oil/gas

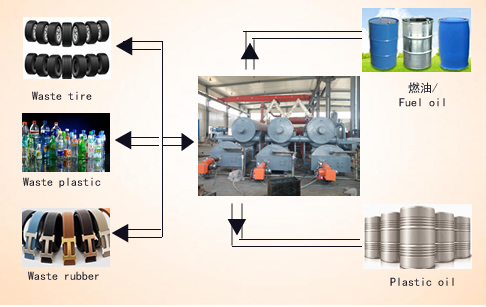

11	Feedstock	Waste tire/plastic/rubber
12	Output	Fuel oil, carbon black

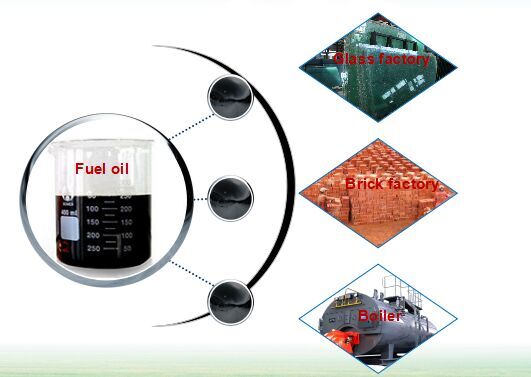

Continuous scale tire pyrolysis unit final product application

The final products produced in the continuous scale tire pyrolysis unit have high economic values. The pyrolysis oil can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries or hotels, restaurants etc, or as well as used for generators to get electricity. The carbon black can be used for making construction bricks and the steel wire(for waste tires) can be recycled into smelting plant.
