Automatic continuous waste tyre pyrolysis plant
This automatic continuous waste tyre pyrolysis plant uses the most advanced pyrolysis technology combining with our own ...
-
Cell/WhatsApp: +86-135-2669-2320
-
Phone: +86-371-56771821
-
E-mail: market@doingmachinery.com
- Features:
- Technical Data:
- Application:

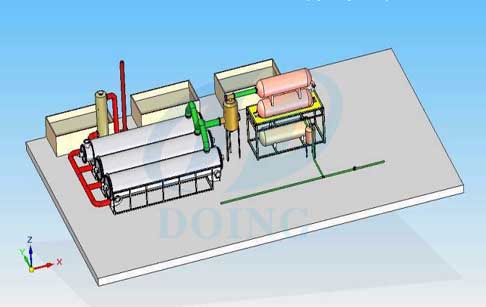

3D picture of automatic continuous waste tyre pyrolysis plant
With the improvement of living standards, consumption of cars is also growing. It will lead to the oil resources become less and less, but the scrap tyres become more and more. Due to the rubber waste is difficult to decompose within a short time, tyre waste has become a big problem in our surroundings.Continuous overseas service center after-sales service for waste plastic oil pyrolysi machine converting waste tires into oil. Our plants includes fully automatic waste tyre pyrolysis plant ,half automatic waste tyre pyrolysis plant and refinery pyrolysis machine. Here we will introduce the Automatic continuous waste tyre pyrolysis plant. It is also called as the continuous tyre pyrolysis plant.

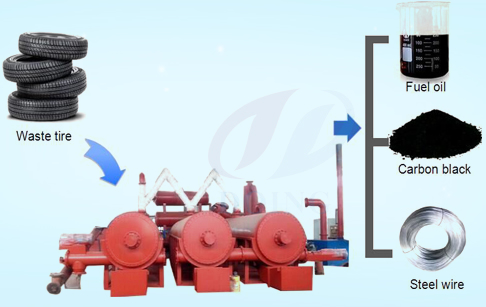

This automatic continuous waste tyre pyrolysis plant uses the most advanced pyrolysis technology combining with our own experience. Raw materials are waste tires/plastic and rubber. End products are crude oil, steel wire, carbon black and syngas. Our Automatic continuous waste tyre pyrolysis plant have differnt types like DY-C-10, DY-C-20 and DY-C-30; there daily capacity is 10T/D,20T/D and 30T/D.If you want to prolong tire oil pyrolysis furnace’s working life and get larger capacity, you can buy other tyre pretreatment machines to treat the tyre waste into rubber block.
- Features:
- Technical Data:
- Application:
| No. | Item | Specifications | ||||||
| 1 | Model | DY-C-10 | DY-C-20 | DY-C-30 | DY-C-50 | DY-C-60 | DY-C-80 | DY-C-100 |
| 2 | Cpacity | 10T/D | 20T/D | 30T/D | 50T/D | 60T/D | 80T/D | 100T/D |
| 3 | Power | 35Kw | 50Kw | 65Kw | 80Kw | 90Kw | 105Kw | 120Kw |
| 4 | Working type | Continuous | ||||||
| 5 | Reactor deisgn | Mutiple reactors (The quantity and size depends on the raw material condition) | ||||||
| 6 | Rotating | Internal rotating | ||||||
| 7 | Cooling system | Recycled waster cooling | ||||||
| 8 | Reactor material | Q245R/Q345R boiler plate | ||||||
| 9 | Heating method | Indireact hot air heating | ||||||
| 10 | Heating fuel | Fuel oil/gas | ||||||
| 11 | Feedstock | Waste tire/plastic/rubber | ||||||
| 12 | Output | Fuel oil, carbon black | ||||||
- Features:
- Technical Data:
- Application:

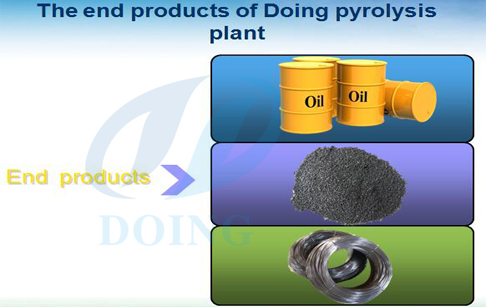

| Name | usage |
| plastic oil |
*can be sell directly *can be make diesel and gasoline by using oil distillation machine *can be as fuel |
| carbon black |
*can be sell directly *can be made fine carbon by using carbon refining machine. *can be made carbon pellet by using pellet machine. |
| oil gas |
can be as fuel heating machine by using gas burner instead of fuel. *can be storage as fuel for other heating. |
