 Continuous waste tire rubber plastics pyrolysis plant
 Continuous waste tire rubber plastics pyrolysis plant
 Continuous waste tire rubber plastics pyrolysis plant
 Continuous waste tire rubber plastics pyrolysis plant

Continuous waste tire rubber plastics pyrolysis plant

The best method is using the pyrolysis technology to change the waste tire/plastic into the useful resources. Thus we Do...

pyrolysis plant
Waste tire/rubber/plastic

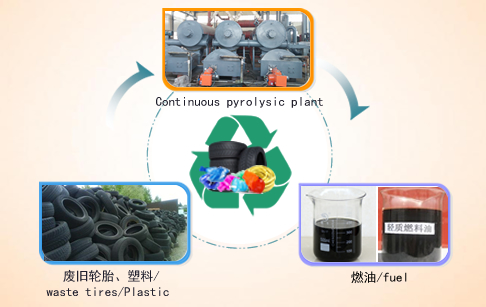

Nowadays, recyling and processing of the “black pollution” namely waste tire pollution, and “white pollution” namely white plastic pollution is a worldwide problem. People become focus on this big problem, traditional oil refine can keep pace with the development of our society, many efforts have been made to change this situation, to some degree, it is all in vain. The best method is using the pyrolysis technology to change the waste tire/plastic into the useful resources. Thus we Dong group designs and produces the continuous waste tire rubber plastics pyrolysis plant.

waste tire rubber plastics pyrolysis plant
 Continuous waste tire rubber plastics pyrolysis plant


Waste tire/rubber/platics pyrolysis is a thermo decomposition of tyre polymer, since waste tyres are long chain polymers containing more than 50,000 carbon atoms attached to each other in a cross linked or straight chain.

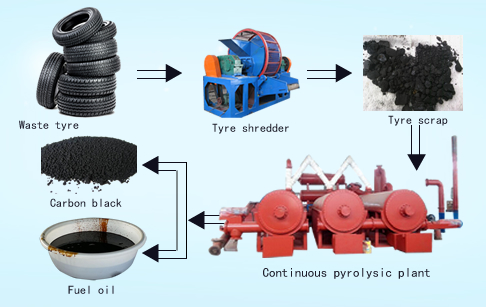

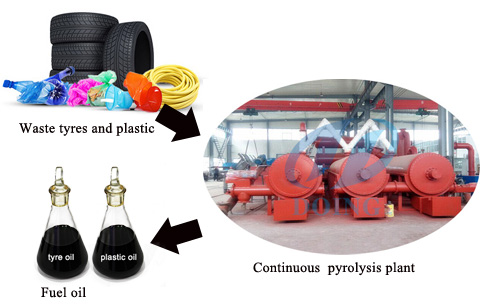

For continuous waste tire rubber plastics pyrolysis plant, its raw material can be waste tires, plastic and other rubber. If your raw material is waste tire, you can get fuel oil, carbon black and steel wire after pyrolysis processing.
 Continuous waste tire rubber plastics pyrolysis plant feature
continuous pyrolysis plant

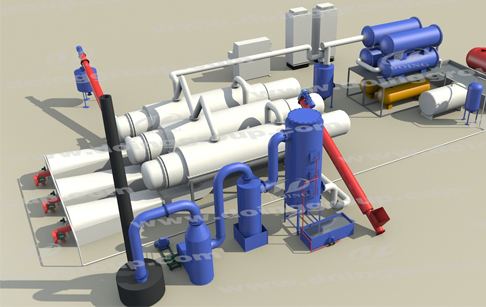

3D picture of continuous waste tire rubber plastics pyrolysis plant
1.Fully automatic with low labour cost
Our  continuous waste tire rubber plastics pyrolysis plant is controled by PLC system with automatic feeding and discharge system, which only need 1-2 worker for operating the PLC or computer is ok.
2.Fully pyrolysis for high oil output
Our continuous waste tyre pyrolysis plant adopts mutiple reactor design which can make fully pyrolysis of waste tires, thus to get high oil output.
3.Big capacity
Also due to continuous feeding and discharge system, and unique mutiple reactor design, our fully automatic continuous waste tyre pyrolysis plant can process at least 10 tons waste tires per day, up to 100T/D.
4.Internal rotating for conitnuous operation
For external rotating system, you have to change the sealing material every three days, thus cannot achieve the real sense of continuous process. But our continuous waste tyre pyrolysis reactor adopts internal rotating method, which no need to worry about the sealing of the external rotating system.
5.Continuous working save time and energy
6.Long working life
During the continuous pyrolysis process, reactor heating is by indirect hot air heating, which will not damage reactor so much, thus to keep long usage life of the reactors. And since the hard steel wire already removed from waste tires before pyrolysis processs, thus no damage for the reactor.



 Continuous waste tire rubber plastics pyrolysis plant technical data
No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black


Continuous waste tire rubber plastics pyrolysis plant application


continuous automatic waste tyre to oil plant
The percent of continuous waste tire rubber plastics pyrolysis plant



Fuel Oil (45% to 52%)
waste tyre pyrolysis oil plant

Application of fuel oil
The main application of oil products produced by our continuous waste tire rubber plastics pyrolysis plant is the fuel oil that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.
tire pyrolysis plant

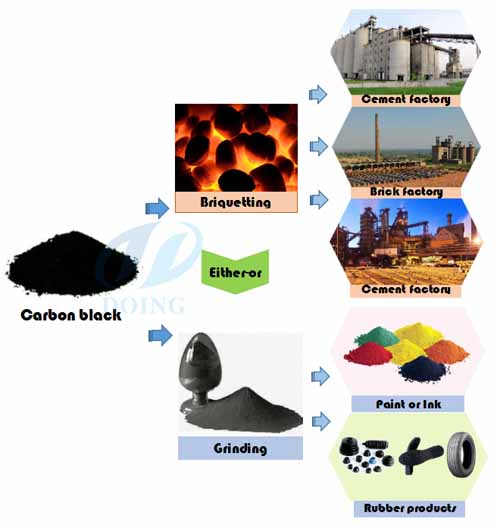

Carbon black application
Carbon black (30% )of  continuous waste tire rubber plastic pyrolysis plant carbon Black is the main product recycled by Pyrolysis technology. The amount of recycled carbon black is 30% to 35% of the total amount of scrap plastics recycled in the system.Carbon black can application to electric cable jacketing,black nylon bag,rubber additive



Oil gas (About 10%)
We get about 10% pyrolytic gases during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.


Steel Wire (12% to 15%)
The third product of continuous waste tire rubber plastics pyrolysis plant  is steel wire, the quantity of steel wire is about 10% to 15% according to tyre quality. It is very easy to sell steel wire scrape in local market.
