Waste tyre continuous pyrolysis production line

Continuous Waste Tyre Pyrolysis Plant

This waste tyre continuous s pyrolysis production line uses the most advanced pyrolysis technology combining with our own experience. Raw materials are waste tires, plastic and rubber. End products are crude oil, steel wire, carbon black and syngas. Our waste tyre continuious pyrolysis production line have differnt types like DY-C-10, DY-C-20 and DY-C-30; there daily capacity is 10T/D,20T/D and 30T/D.If you want to prolong tire oil pyrolysis furnace’s working life and get larger capacity, you can buy other tyre pretreatment machines to treat the tires waste into rubber block

Chat Online Leave A Message
pyrolysis plant

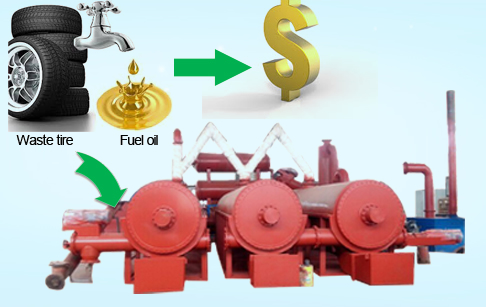

3D picture of waste tyre continuious pyrolysis production line
With the trend of developing green economy, the continuous pyrolysis plant becomes more and more popular, here are some details about the parts of the pyrolysis plant.

waste tyre pyrolysis machine

This waste tyre continuious pyrolysis production line  uses the most advanced pyrolysis technology combining with our own experience. Raw materials are waste tires, plastic and rubber. End products are crude oil, steel wire, carbon black and syngas. Our waste tyre continuious pyrolysis production line  have differnt types like DY-C-10, DY-C-20 and DY-C-30; there daily capacity is 10T/D,20T/D and 30T/D.If you want to prolong tire oil pyrolysis furnace’s working life and get larger capacity, you can buy other tyre pretreatment machines to treat the tires waste into rubber block.

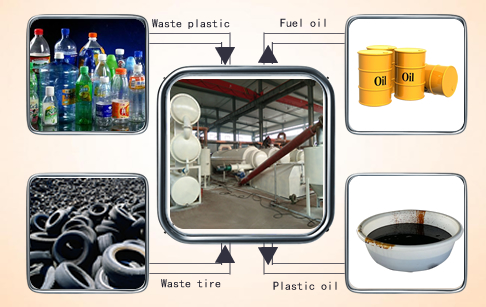

Waste tyre continuious pyrolysis production line raw material


continuous pyrolysis production line
Waste tyre continuious pyrolysis production line raw material
1.Waste tire/tyre
2.Waste plastic
3.Waste rubber

Waste tyre continuious pyrolysis production line working process


automatic fully  pyrolysis plant
Waste tyre continuous pyrolysis production line working process


Use a specialized tire shredder to process big whole tires into 3-5cm small pieces for easy feeding. The tire shredder is a single and fully automatic shredding system, which can be directly connected to the feeding system of the continuous pyrolysis plant, which no need any transfer process
We put waste tyre can be fed directly into waste tyre continuious pyrolysis production line through the feeding door. Our feeding door has screw inside, so it can help you easily convey the waste tyre granules into our reactor No 1, then all the waste tyre can be fully decomposed under the high temperature through reactor No 1 to reactor No 2,then to reactor No 3...Until all the tyre fully pyrolysed, then all the carbon black powder will be discharged automatically to the carbon black tank.


Waste tyre continuous pyrolysis production line advantage

1.The continuous reactor: The raw material of the reactor is the special corrosion resistant alloy steel, which can stand the highest temperature of the materials, and the inside of the reactor is equipped with the material forced guiding device and turning device. When the raw material turns around with the reactor, the material in the up side and downside can have the uniform heat.

2. The heating method is also special, because it avoids the open fire. This method can both protect the operator and the reactor itself.

3. The best control system, which includes temperature control loop, frequency converter, electromechanical equipment and so on.

4. The feeding equipment is automatic, and it is equipped with anti return gas leakage device.

5. The slag discharging device has the combination type discharging machine for liquid and propeller, and there is also the device that can ensure the operator and technicians can check the reactor, in addition, the discharging process is continuous.

6. The flue gas recovery device can recycle the flue gas produced in the working process, and the recycled gas can be used as fuel to heat the reactor, which is energy saving.

7. The sealing device can prevent the waste smoke leaking, and in this way, it can protect the environment.




Technical Data of  waste tyre continuous pyrolysis productin line

No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black

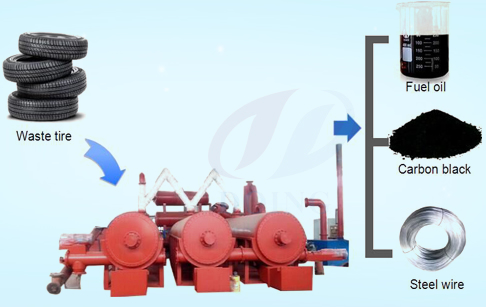

 Application of waste tyre continuous pyrolysis production line final product

waste tyre pyrolysis plant
Application of waste tyre continuious pyrolysis production line


Fuel oil from waste tyre continuous pyrolysis production line are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic factory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory
waste tyre pyrolysis plant
Carbon black application
The usage of final production-----Carbon black
Carbon black from waste tyre continuous pyrolysis production line
are used in below industries
A.electric cable jacketing
B.conveyor ban
C.hose and doormat
D.black nylon bag
E.rubber additive
F.automatic spare parts
G.heat isolation
H.black colorant in rubber materials
