Waste crude oil to diesel machine
Waste crude oil to diesel machine
Waste crude oil to diesel machine
Waste crude oil to diesel machine

Waste crude oil to diesel machine

Waste crude oil to diesel machine can convert crude oil into diesel. The diesel is a very good diesel which is very cl...

Waste crude oil to diesel machine can convert crude oil into  diesel. The  diesel is a very good diesel which is very close to common diesel.Make diesel form crude oil  is efficient way to save both money and the environment.The final diesel oil can be used in diesel generator, tractors, trucks, agricultural vehicles etc.

High oil recovery rate waste oil distillation plant
Waste crude oil to diesel machine




The following are the details of  Henan Doing waste oil distillation machine:
1. Increase oil yield 5% compared to the similar plant, oil yield rate reaches to 95%;
2. Unique condensers and vacuum device makes our waste  oil to diesel distillation machinehighly efficient;
3. Advanced device and design to make sure the distillation process is proceeding in a total environmental and safe surrounding;
4. Multiple methods to eliminate color and odor of the distilled oil which ensures the final diesel oil with a high quality;
5. The complete set of unit produce no smoke and no smell;

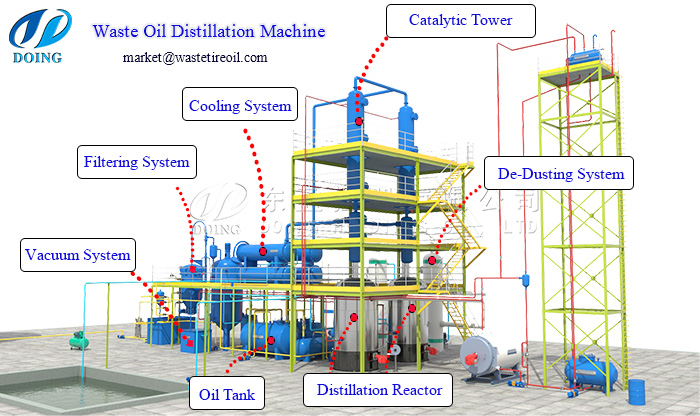

waste oil distillaton machineWaste crude oil to diesel machine



Technical parameters of waste crude oil to diesel machine

Technical parameter of waste crude oil to diesel machine
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material motor oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡

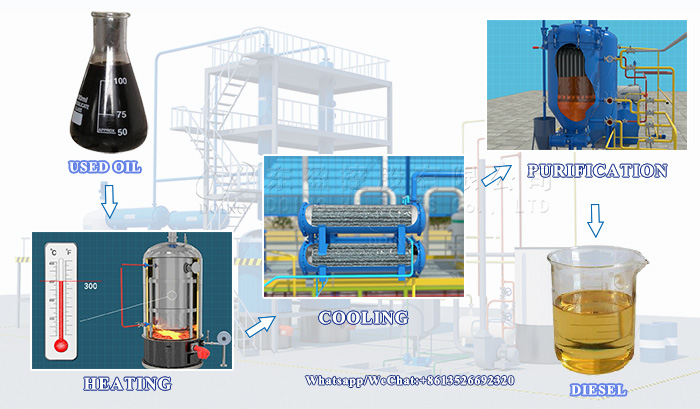

The workflow of Henan Doing waste oil distillation machine.

First, pump the waste crude oil into the distillation reactor;

Second, use double heating system to heat the waste oil, that is, circulating heat transfer oil and direct fuel heating, until oil gas are generated;

Third, the oil gas are cooled into primary diesel through the cooling system and stored in the oil tank;

Fourth, the primary diesel is sent to the deep purification system through the pipeline, and is equipped with an acid-base cleaning device and a pressure filter system. Then, we can get qualified diesel.

waste oil distillation machineWorkflow of waste oil distillation machine

In addition to waste crude oil, Henan Doing waste oil distillation machine can refine tire pyrolysis oil, plastic pyrolysis oil, waste engine oil, black and heavy oil,etc. If you want to know more information about waste oil distillation machine, welcome to consult us.
