Waste tire is often called "blacke pollution", burn and landfill the waste tires is wrong ,it not only causes fire,but also pollutes the environment .However ,it is a kind of valuable renewable resources for human beings.Tire recycling plant of Doing can convert waste tire to avaliable energy ,such as fuel oil ,carbon black ,steel wire.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2

Chat Online Leave A Message

Tire recycling plant

Tire recycling plant

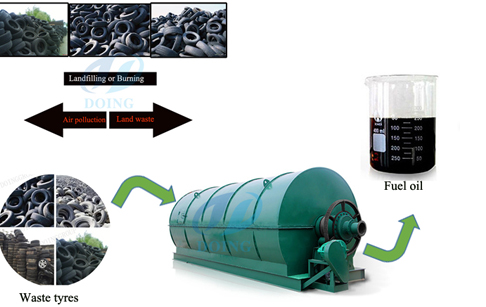

Waste tire is often called "blacke pollution", burn and landfill the waste tires is wrong ,it not only causes fire,but also pollutes the environment .However ,it is a kind of valuable renewable resources for human beings.Tire recycling plant of Doing can convert waste tire to avaliable energy ,such as fuel oil ,carbon black ,steel wire.

Tire recycling plant feature

Tire recycling plant feature
1.We can get tire oil,carbon black,and steel from waste rubber tires and plastics.
2. High oil output rate 45%-55%, the rubber up to 60%.
3. Rapid condenser, we have 5 condensers, the cooling area up to 53 square meters, the area larger, the more oil u can get.
4. Large capacity: 6tons / 8tons / 10tons / 12tons / 20tons.
5. Safety device, we have automatic alarm bells with pressure gauge, If pressure gauge more than the pressure, bells will ring.
6. Environmental protection, no pollution, no smell.
7. 6—8 years life, 3 years warranty

Technical Data

Tire recycling plant technical data

Technical parameter of waste tire recycling plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tire	Waste tire	Waste tire
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about tire recycling plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Application

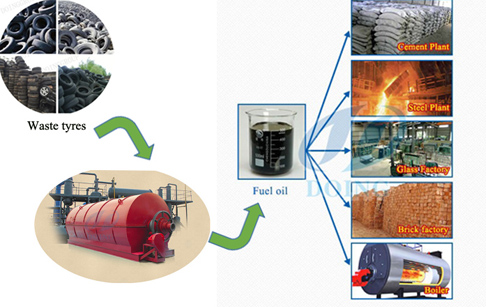

Tire recycling plant final product application

Tire recycling plant of Doing can get Fuel oil (45% to 52%) ,Carbon black (30% to 35%) ,steel wire (12%-15%),this product can use widely in inductries.
