Convert plastic waste to fuel oil machine

Full continuous tyre pyrolysis plant

Along with the world economy progressing development, the oil resource scarce tendency has grown up day by day, enters into the 90s, the energy has become the primary factor that restricts various countries economy development. While, at the same time, energy waste can be seen everywhere. Seeking the new energy has become the various countries matter of concern. Henan Doing Group company is the leading domestic professional manufacturer in Convert plastic waste to fuel oil machine , waste tyre recycling eqipment, waste engine oil distillation machine. Our final principle is to clean the world and renew waste to energy, welcome all strategic friends join us!

Chat Online Leave A Message
Convert plastic waste to fuel oil machine:
Along with the world economy progressing development, the oil resource scarce tendency has grown up day by day, enters into the 90's, the energy has become the primary factor that restricts various countries economy development. While, at the same time, energy waste can be seen everywhere. Seeking the new energy has become the various countries’ matter of concern. Henan Doing Group company is the leading domestic professional manufacturer in Convert plastic waste to fuel oil machine, waste tyre recycling eqipment, waste engine oil distillation machine. Our final principle is to clean the world and renew waste to energy, welcome all strategic friends join us!

plastic to oil
convert plastic waste to fuel oil

DY-D2800mm*L6600mm
1. With the help of the auto-feeder, the reactor of waste to fuel oil machine can to contain 12 tons crushed tire or 10 tons whole tyre.
2. I f the raw materil is waste plastic, it can contain even 12 tons if you use the right feeding way.
3. The diameter of the reactor feeding door is 1200mm.
4. After 2 hours' feeding time, it's time to heat the reactor by coal/wood/natural gas or fuel oil. Generally speaking, when the temperature reaches to 155 Celsius degrees around, the oil gas will generated.
Technical parameter of  convert plastic waste to fuel oil machine
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic waste plastic waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of Reactor Q245R Q245R Q245R
8 Thickness of Reactor 16mm 16mm 16mm
9 Rotate speed 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area  100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T
waste tire recycling to oil plant ,tyre to oil plant
                              Fuel oil application range

Now, more and more people know this project, and DOING GROUP Convert plastic waste to fuel oil machine used by waste tyre and plastic recycling companies with owned a good reputation around the world.
Project Case:
Albania, Italy, Poland, Romania, Pakistan, Mexico, Haiti, Iran, Malaysia, Ecuador, India, etc.


Pyrolysis Plant Products

Refined tyre oil can be directly used in tractor

tyre to oil

Full continuous tyre pyrolysis plant Solutions

Pyrolysis process flow chart

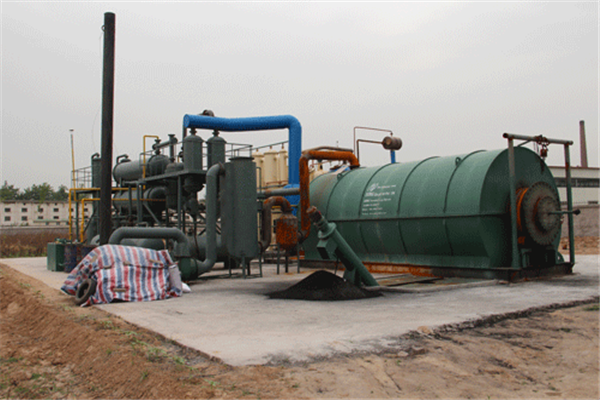

pyrolysis plant

Pyrolysis Plant Hot Sale

Pyrolysis Plant
