Our Continuous fully automatic waste tyrepyrolysis plant can convert waste tyre into high grade diesel fuel. Waste tyre are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During tyre recycling pyrolysis plant , this long chain is broken down into smaller chain.

  • Ms. Bonnie Zhao
  • +86-371-5677 1821
  • +86 158 9380 0169
  • Skype:bonniezhao2
Chat Online Leave A Message
Continuous fully automatic waste tyrep yrolysis plant feature

Our Continuous fully automatic waste tyrepyrolysis plant  can convert waste tyre into high grade diesel fuel. Waste tyre are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During tyre recycling  pyrolysis plant , this long chain is broken down into smaller chain. The waste tyre recycling  pyrolysis plant turns waste materials into gases and liquids. The end products can be used in any standard diesel engine or generator with little or no modifications.
continuous fully automatic waste tyre pyrolysis plant
Continuous fully automatic waste tyre pyrolysis plant
1.Generates quality fuel with lower emission
2.Controls plastic land pollution
3.Recover energy from waste
4.Helps recycle carbon

Continuous fully automatic waste tyre pyrolysis plant technical data


Technical parameter of contnuous fully automatic waste tyre pyrolysis plant
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tyre Waste tyre Waste tyre
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about continuous fully automatic waste tyre pyrolysis plant
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m

Continuous fully automatic waste tyre pyrolysis plant application
waste tyre pyrolysis plant

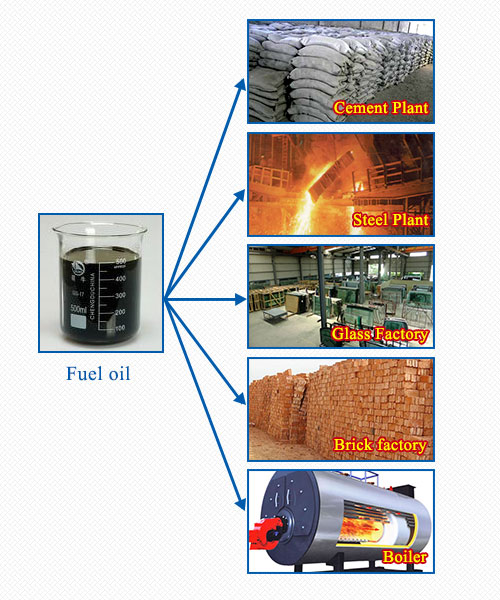

1.the usage of final production-----Fueloil
Fuel oil from waste tyre are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic factory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory

The usage of final production-----Carbon black
Carbon black from waste tyre are used in below industries
A.electric cable jacketing
B.conveyor ban
C.hose and doormat
D.black nylon bag
E.rubber additive
F.automatic spare parts
G.heat isolation
H.black colorant in rubber materials
