Small capacity used tyre pyrolysis equipment

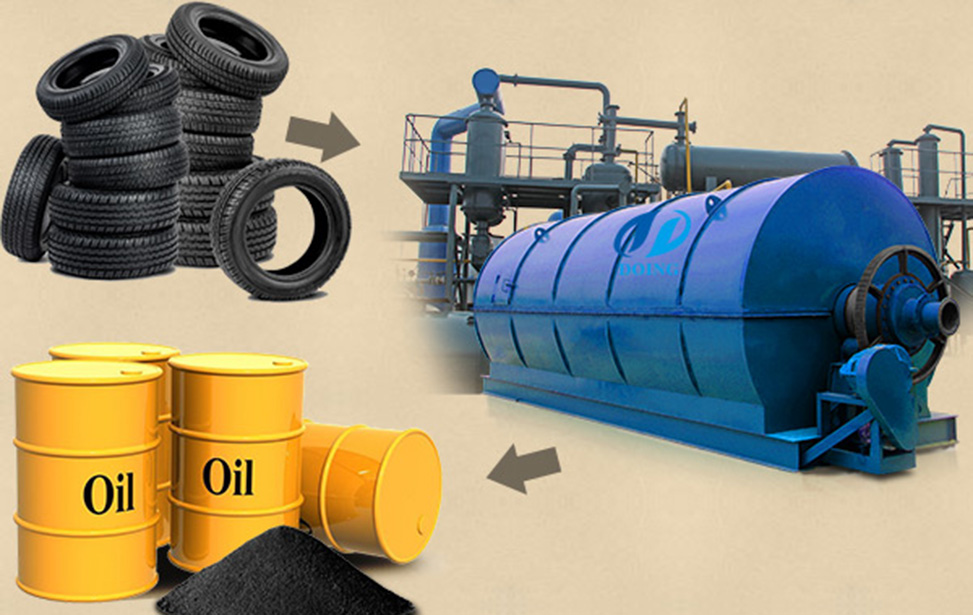

The small capacity used tyre pyrolysis equipment method is a technique which heats tyres in a sealed reactor. In the reactor the tyre is softened after which the tyre continuously into oil by cooling system.

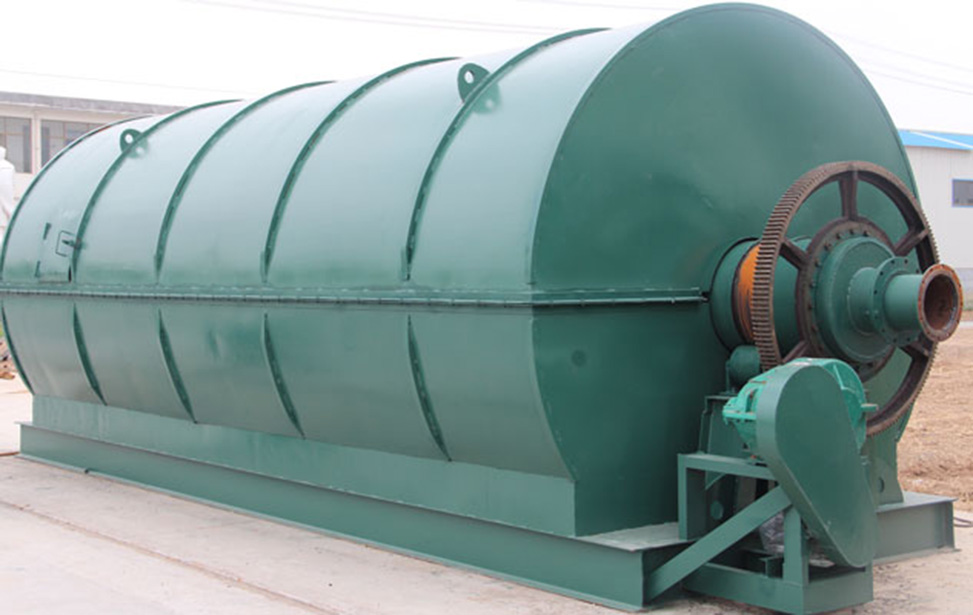

The most important is machine reactor, DOING  small capacity used tyre pyrolysis equipment reactor has some advantages as below:
  1. The raw material of reactor is Q245R. Q245R is mainly used for pressure vessel because it can be continuously heated for long time. To keep a long service life.
  2. Auto-welding with carbon arc air gouging technique.
  3. The reactor is fully covered by thermal insulation. Heat preservation effect is good.

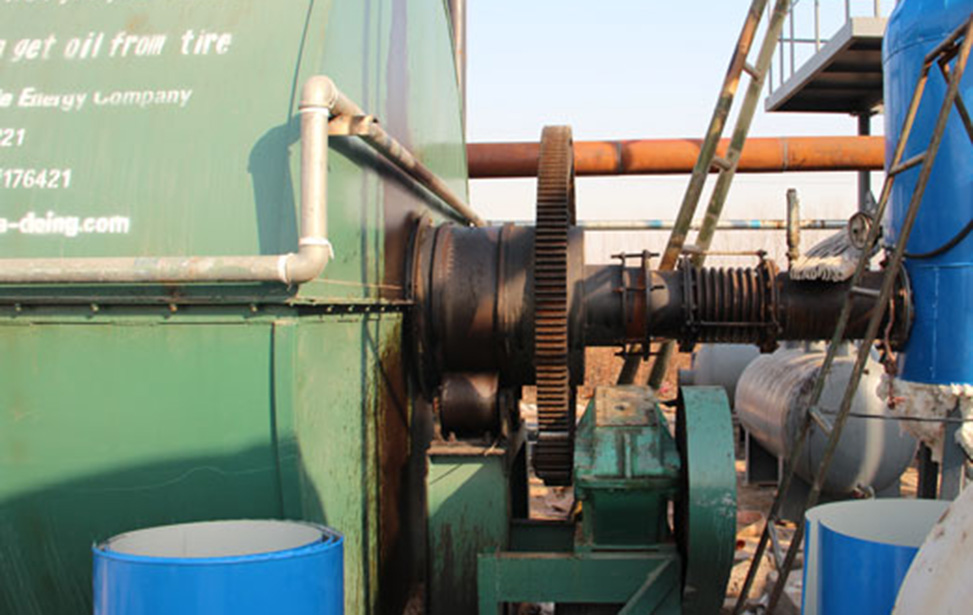

  4. The gear is separated from the reactor. It avoids deformation after being heated for long time. Even it is broken you only need to change the gear. The maintenance cost is low.
  5. There is a safety net inside the reactor. It prevents the raw materials going to accessories and avoiding blocking.
  6. There are spiral plates inside of the reactor cab help to auto-feed and slag.

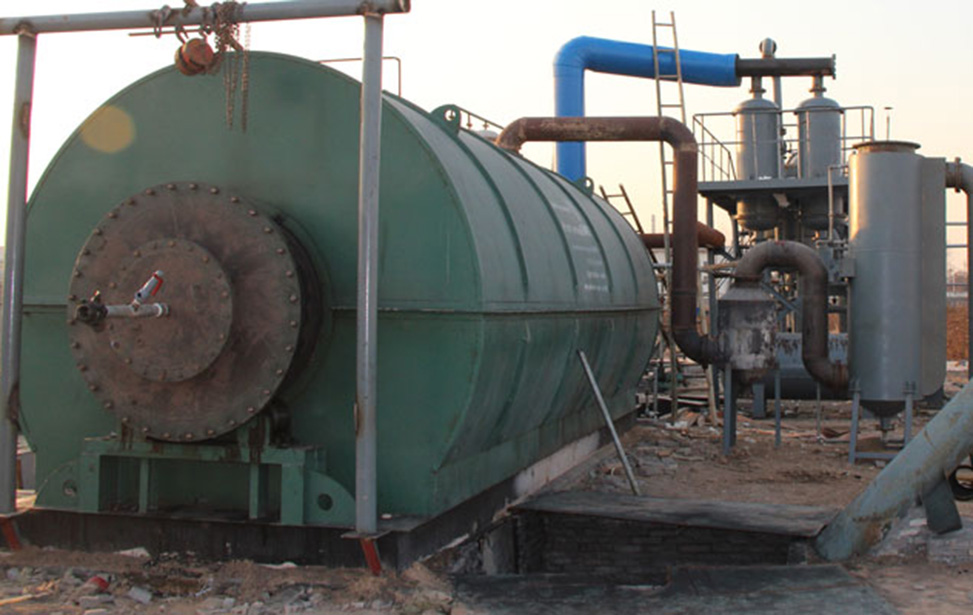

  7. Feed port is round shape. It can work with auto-feeder. It helps you feed more raw materials and improve working efficiency.

Technical parameter of small capacity used tyre pyrolysis equipment
  No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tyre Waste tyre Waste tyre
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about small capacity used tyre pyrolysis equipment
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m
used tyre  oil appliaction

 Small capacity used tyre pyrolysis equipment is a good project for recycling centers, collection organizations etc. DOING used tyre pyrolysis equipment adhere to constantly updated product, guarantee high-quality product and offer full-service for our clients. DOING is your trustworthy partner, welcome to contact us.
