Waste plastic pyrolysis oil plant

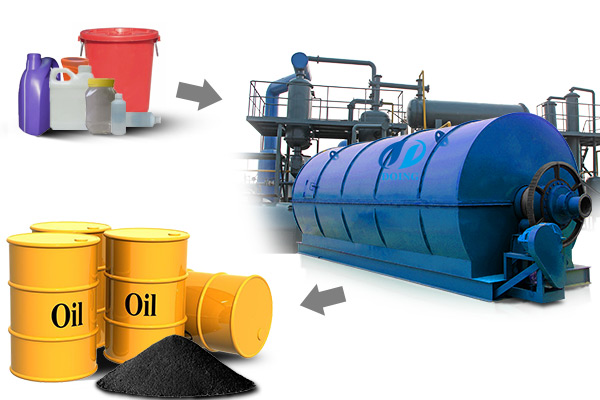

Waste plastic pyrolysis to oil plant working process:

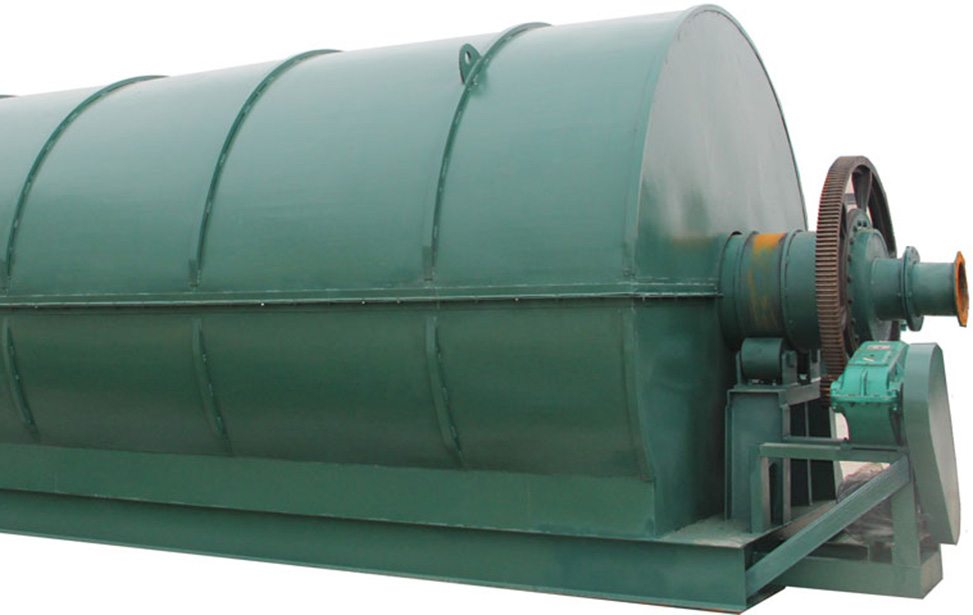

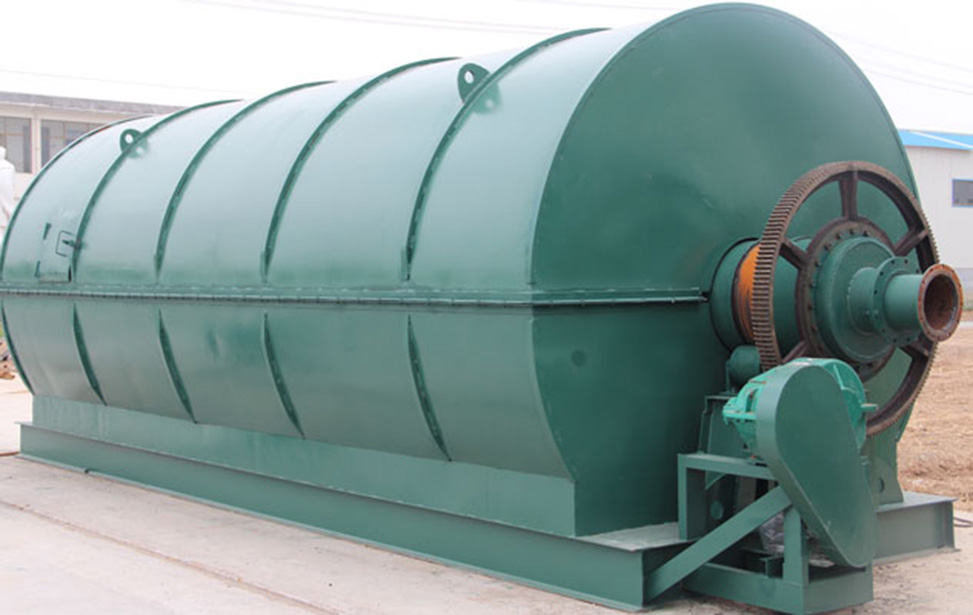

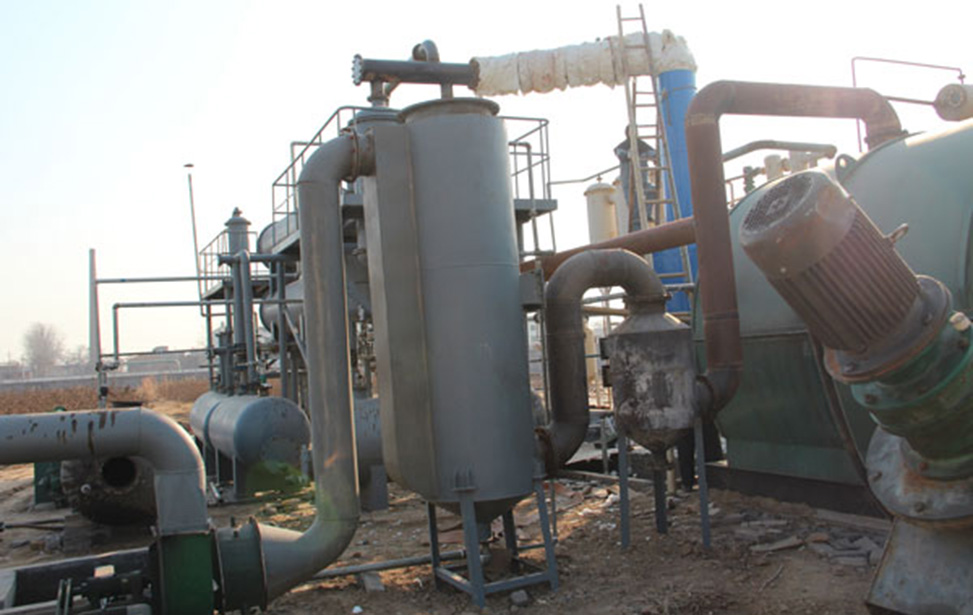

Feed waste plastic into the reactor with auto-feeder, seal the reactor gate and begin to heat the reactor by burning fuel materials in the combustion system, the fuel material can be coal, wood, natural gas and fuel oil. There is a thermocouple installed at the oil gas outlet valve to test the temperature of the oil gas, when thermocouple shows a certain temperature, the oil gas will come out and flow into the cooling system and be converted into liquid oil. At the same time, the oil gas conations CH4, C2H6, C3H8, C4H10 and H2 which cannot be cooled under normal pressure will be recycled back to combustion system to burn as fuel material. The dust and sulfur gas will be removed by the dust removing system. After the gas oil run out, there are slags (carbon black) inside of the reactor,.
As a plastic pyrolysis machine manufacturer-DOING will provide customer a good quality machine with adopt fully automatic vacuum carbon black discharging system that extend the service time.
Choosing the suitable raw material is important for customers, it concerns the real profit you can get from your material. Not all kinds of waste plastic can get oil, if you want to get crude fuel oil with high oil yield from waste plastic, please refer to the following form: Here I need to stress that the oil rate only for your reference, as different plastic different result, such as some plastic has very dirty slag, and the plastic is very wet. Let’s see it:
Oil rate from different kinds of plastic:
PVC material |
with very little oil, not good |
PE |
95% |
PP |
90% |
PS |
90% |
ABS |
40% |
Pure white plastic cloth |
70% |
Plastic package |
40% |
Plastic logo |
20% |
Paper coating |
dry material 60%, wet 15%-20% |
Household garbage |
30% - 50% |
Pure plastic cable covers |
80% |
Clean plastic bag |
more than 50% |
Technical parameter of high oil rate waste plastic pyrolysis oil plant |
No. |
Items |
Contents |
1 |
Equipment type |
DY-1-6 |
DY-1-8 |
DY-1-10 |
2 |
Raw material |
Waste plastic |
Waste plastic |
Waste plastic |
3 |
Structural form |
Horizontal rotation |
Horizontal rotation |
Horizontal rotation |
4 |
24-hour Capacity |
6 ton |
8 ton |
10 ton |
5 |
Oil yield |
2.7-3.3ton |
3.6 -4.4ton |
4.5 -5.5ton |
6 |
Operating pressure |
Normal |
Normal |
Normal |
7 |
Material of pyrolysis Reactor |
Q245R |
Q245R |
Q245R |
8 |
Thickness of pyrolysis Reactor |
16mm |
16mm |
16mm |
9 |
Rotate speed of pyrolysis Reactor |
0.4turn/minute |
0.4turn/minute |
0.4turn/minute |
10 |
Total power |
19KW |
19KW |
19KW |
11 |
Mode of cooling |
Water cooling |
Water cooling |
Water cooling |
12 |
Cooling area of condenser |
100sqm |
100sqm |
100sqm |
13 |
Kind of transmission |
Internal gear drive |
Internal gear drive |
Internal gear drive |
14 |
Noise dB(A) |
≤85 |
≤85 |
≤85 |
15 |
Size of Reactor(D×L) |
2200×6000 |
2200×6600 |
2600×6600 |
16 |
Working form |
Intermittent operation |
Intermittent operation |
Intermittent operation |
17 |
Delivery time |
20days |
20days |
20days |
18 |
Weight |
27T |
30T |
35T |
Prepared by customer about High oil rate waste plastic pyrolysis oil plant |
No. |
Item |
Consumption |
1 |
Coal(for choice) |
500kg/day |
2 |
Wood(for choice) |
800kg/day |
3 |
Natural gas(for choice) |
100-150kg/day |
4 |
Oil(for choice) |
300-350kg/day |
5 |
Electricity |
244kwh/day |
6 |
Water(recycled) |
60㎥ /month |
7 |
Total power |
19kw |
8 |
Land area |
35m*15m |
This project widely used by all over the world, such as recycling center, waste plastic recycling organization, collecting company etc. Waste plastic pyrolysis oil plant has the advantage of small investment and quick recovery costs, is a very good project in the next 5-10 years. If you want to know more information about details, please contact with us.
