Used oil to diesel distillation plant

Waste oil refining to diesel fuel machine can convert tire oil, plastic oil, and waste engine oil to diesel. In some country, waste oil refining to diesel fuel machine also named waste oil distillation machine, distillation equipment, it just name different, but have a same functions.

We have 5t-50t per day  used oil to diesel distillation plant, can meet different customer’s requirements.

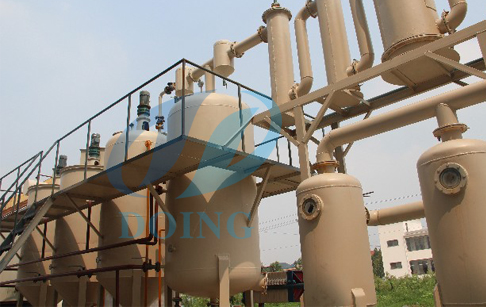

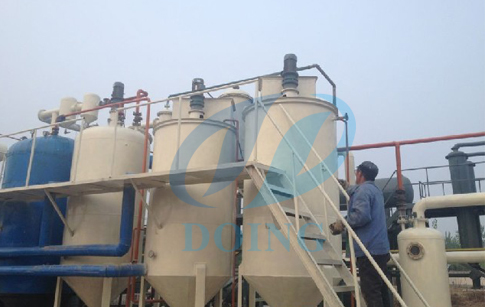

DOING 5T/Dused oil to diesel distillation plant is mainly composed of 4 reactors, cooling system, vacuum system, filtering system and de-dusting system. Our used oil to diesel distillation plant can refine waste tire oil into diesel very efficiently, and at the moment it is the most energy-saving refinery equipment in the market.

Used oil to diesel distillation plant features:

1. After 2 years’ research and development, our refining technology is already mature.
2. Can refine 3 kinds of oil--waste tire oil, plastic oil and waste motor oil.
3. The final oil can be directly used for diesel oil generator, trucks and vans, etc.
4. Indirect heating by boiler heating system can greatly increase the service life of our used oil to diesel distillation plant.
5. Three steps purifying process ensure final diesel pure and high quality

• Technical Data

Technical parameter of used oil to diesel distillation plant:


Items	Contents
Model	DY-5t, DY-10t, DY-20t, DY-50t…
Raw material	Waste engine oil, waste tire crude oil, plastic crude oil
Structure form	Vertical (easy cleaning and maintenance)
Heating method	Indirect heating to prolong the machine service life
Operating pressure	Constant pressure
Heating material	Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate	85%
Material of reactor	4 reactor with different material
Thickness of reactor	18mm
Mode of cooling	Recycled water cooling
Power in total	9kw
Service life	average 7 years
Land area	180㎡



• Application

Application of final product - Diesel：
Diesel from used oil to diesel distillation plant can be used for tractors, trucks, ships and diesel oil generators etc. below is the different waste oil with its oil rate.

Oil yield of different material
No.	Name	Oil recovery rate
1	Waste tire oil	85%-90%
2	Waste plastic oil	95%
3	Waste engine oil	85%-90%
