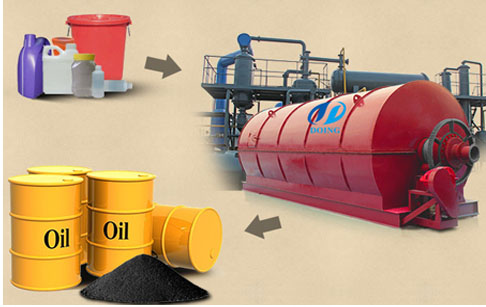

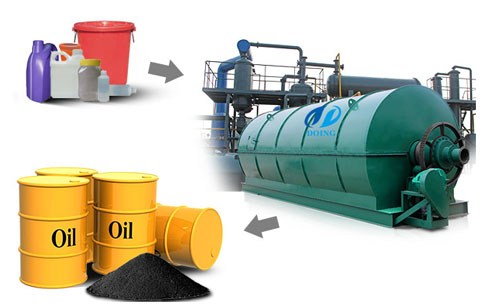

Our waste pyrolysis plastic machine can convert waste plastic into high grade diesel fuel. Waste plastic are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During waste plastic pyrolysis, this long chain is broken down into smaller chain. The waste plastic pyrolysis machine turns waste materials into gases and liquids. The end products can be used in any standard diesel engine or generator with little or no modifications.
| Technical datar of waste pyrolysis plastic machine | ||||
| No. | Items | Contents | ||
| 1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
| 2 | Raw material | Waste plastic | Waste plastic | Waste plastic |
| 3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
| 4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
| 5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
| 6 | Operating pressure | Normal | Normal | Normal |
| 7 | Material of pyrolysis Reactor | Q245R | Q245R | Q245R |
| 8 | Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm |
| 9 | Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
| 10 | Total power | 19KW | 19KW | 19KW |
| 11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
| 12 | Cooling area of condenser | 100sqm | 100sqm | 100sqm |
| 13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
| 14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
| 15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
| 16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
| 17 | Delivery time | 20days | 20days | 20days |
| 18 | Weight | 27T | 30T | 35T |
| Prepared by customer about High oil rate waste pyrolysis plastic machine | ||
| No. | Item | Consumption |
| 1 | Coal(for choice) | 500kg/day |
| 2 | Wood(for choice) | 800kg/day |
| 3 | Natural gas(for choice) | 100-150kg/day |
| 4 | Oil(for choice) | 300-350kg/day |
| 5 | Electricity | 244kwh/day |
| 6 | Water(recycled) | 60㎥ /month |
| 7 | Total power | 19kw |
| 8 | Land area | 35m*15m |
