Continuous Plastic Pyrolysis plant

The 5th generation waste tire/plastic recycling machine can fast pyrolysis waste tyres and waste plastic, this recycling machine includes below parts: reactor, catalytic chamber, horizontal condenser, oil-water separator, heavy & light oil tank, horizontal condensers, vacuum system, anti-back fire device, dust removing device, auto-slagging device, carbon black conveyor & elevator.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2
oilmachine@doinggroup.com

Chat Online Leave A Message

waste tyre recycling pyrolysis machine,tire recycling machine

Waste tire/plastic recycling machine

DOING is a professional manufacturer who producing waste tire/plastic recycling machine. As an outstanding supplier, DOING supply you waste tire/plastic recycling machine with high quality, competitive price and best after-sale service, which will makes you satisfied.

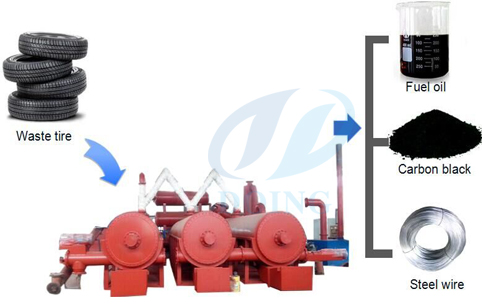

The final products and usage from waste tire/plastic recycling machine:
1. Fuel oil 45%-52%

Fuel oil from tires/plastic can be used in below industries:

A. power plant factory B. glass factor C. cement factory D. ceramic factory E. aluminum factory F. boiler factory G. central heating factory H. painting factory

2. Carbon black 30%-35%

A. electric cable jacketing B. conveyor ban C. hose and doormat D. black nylon bag E. rubber additive F. automatic spare parts G. heat isolation H. black colorant in rubber materials I. plastic pipes J. industries rubber products K. fire fighting steel wire from waste tyre can be re-sale to steel factory

Technical Data

Technical parameter of 5th generation waste tire/plastic recycling machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tire/plastic	Waste tire/plastic	Waste tire/plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about 5th generation waste tire/plastic recycling machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Application

Usage of fuel oil(tire oil,plastic oil,rubber oil)

DOING group company also provide new design waste tire/plastic recycling machine and now already exported to European countries and running well. We have demo machine and running machine in our factory, DOING warmly welcome you visit our factory at any time!
