Fully Automatic Continuous Waste Plastic Pyrolysis

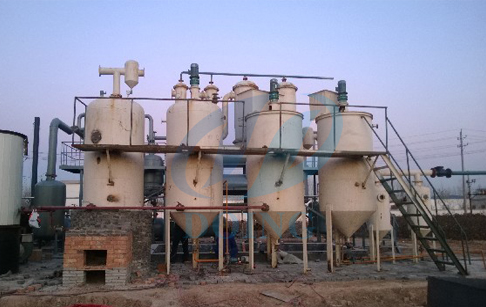

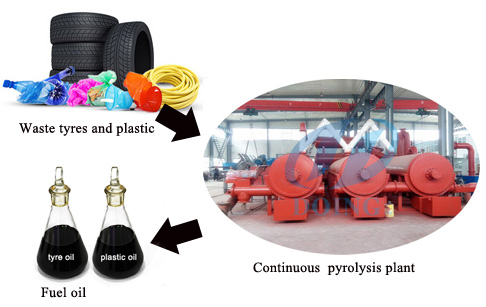

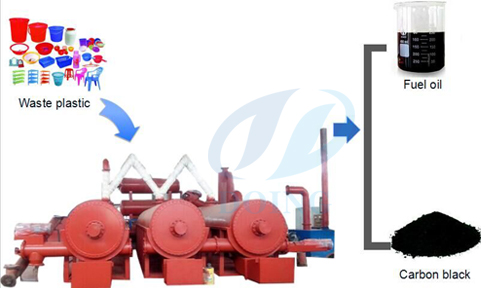

DOING group is specialized producing waste plastic pyrolysis to oil plant; this plastic to oil machine is specially recycling waste plastic with a high oil rate. Turn waste plastic to high quality fuel oil through a series of processing. The main final product by waste plastic pyrolysis oil machine is fuel oil and carbon black. Let’s see more information of this pyrolysis plant below:

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2
oilmachine@doinggroup.com

Chat Online Leave A Message

Continuous plastic to oil machine

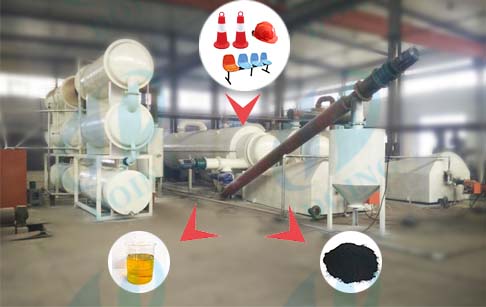

The objective of continuous plastic to oil machine is continuous pyrolysis process. It can produce not less 45%-52%waste oil, 30%-35% carbon black and 12%-15% steel wire. The work process of continuous plastic to oil machine is similar as batch waste tire pyrolysis machine. However, the whole working process of continuous plastic to oil machine is much more efficient, and the cost of working continuous plastic to oil machine is much lower.

PVC material	with very little oil, not good
PE	95%
PP	90%
PS	90%
ABS	40%
Pure white plastic cloth	70%
Plastic package	40%
Plastic logo	20%
Paper coating	dry material 60%, wet 15%-20%
Household garbage	30% - 50%
Pure plastic cable covers	80%
Clean plastic bag	more than 50%

Technical Data

Technical parameter of
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste plastic	Waste plastic	Waste plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about High oil rate waste plastic pyrolysis oil plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Application

High oil rate waste plastic pyrolysis oil plant,plastic to oil

This project widely used by all over the world, such as recycling center, waste plastic recycling organization, collecting company etc. Waste plastic pyrolysis oil plant has the advantage of small investment and quick recovery costs, is a very good project in the next 5-10 years. If you want to know more information about details, please contact with us.
