Tyre recycling use of tyre pyrolysis oil plant
Tyre recycling use of tyre pyrolysis oil plant
Tyre recycling use of tyre pyrolysis oil plant
Tyre recycling use of tyre pyrolysis oil plant

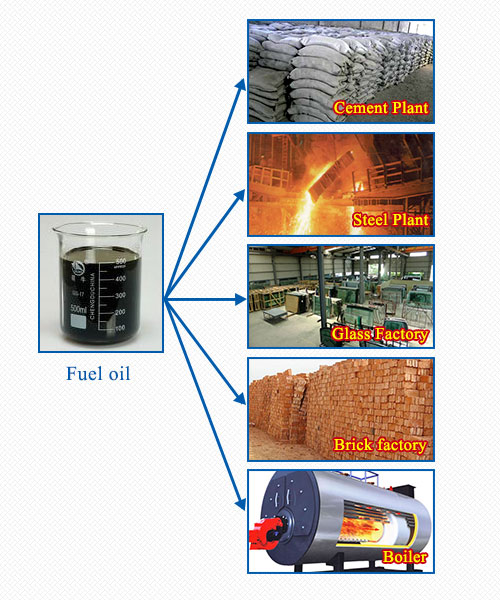

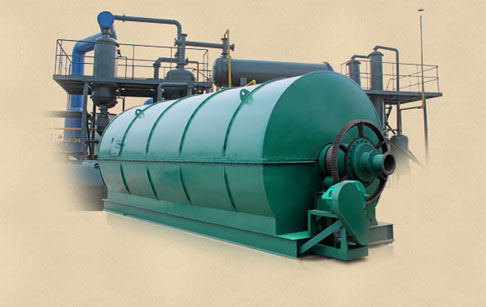

Our use of tyre pyrolysis oil plant can convert waste tyre into high grade diesel fuel. Waste tyre are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During use of tyre pyrolysis oil , this long chain is broken down into smaller chain. The use of tyre pyrolysis oil plant turns waste materials into gases and liquids. The end products can be used in any standard diesel engine or generator with little or no modifications.
| Technical parameter of tyre pyrolysis oil plant | ||||
| No. | Items | Contents | ||
| 1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
| 2 | Raw material | Waste tires | waste tires | waste tires |
| 3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
| 4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
| 5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
| 6 | Operating pressure | Normal | Normal | Normal |
| 7 | Material of pyrolysis Reactor | Q245R | Q245R | Q245R |
| 8 | Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm |
| 9 | Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
| 10 | Total power | 19KW | 19KW | 19KW |
| 11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
| 12 | Cooling area of condenser | 100sqm | 100sqm | 100sqm |
| 13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
| 14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
| 15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
| 16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
| 17 | Delivery time | 20days | 20days | 20days |
| 18 | Weight | 27T | 30T | 35T |
| Prepared by customer about tyre pyrolysis plant | ||
| No. | Item | Consumption |
| 1 | Coal(for choice) | 500kg/day |
| 2 | Wood(for choice) | 800kg/day |
| 3 | Natural gas(for choice) | 100-150kg/day |
| 4 | Oil(for choice) | 300-350kg/day |
| 5 | Electricity | 244kwh/day |
| 6 | Water(recycled) | 60㎥ /month |
| 7 | Total power | 19kw |
| 8 | Land area | 35m*15m |
