Continuous Tyre Pyrolysis plant

Waste tyre recycling plant

Continuous Tyre Pyrolysis plant

1. the waste tyre recycling plant is adopt indirect heating to leng then the life span of reactor,save energy, keep Eco-environmental, Gurantee high oil quality. 2. the Waste tyre recycling plant is running with vacuum system,improve efficiency,promote the oil quality and oil rate.

Chat Online Leave A Message
Waste tyre recycling plant feature
waste tyre recycling plant
waste tyre recycling plant

1. the waste tyre recycling plant is adopt indirect heating to leng then the life span of reactor,save energy, keep Eco-environmental,   Gurantee high oil quality.
2. the Waste tyre recycling plant is running with vacuum system,improve efficiency,promote the oil quality and oil rate.
3. there are 3 steps to purify the tire oil to diesel. the Diesel is suitble to diesel generator, tractor and truck.
4. oil rate:about 95%.




Technical parameter of waste tyre recycling machine
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about automatic convert waste tyre to oil machine
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m

Waste tyre recycling plant  final product  application

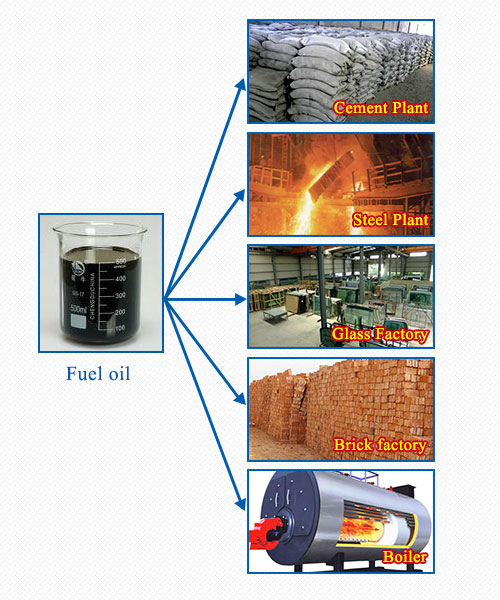

he usage of final production-----Fueloil

Fuel oil from waste tyre are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic factory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory

The usage of final production-----Carbon black
Carbon black from waste tyre are used in below industries
A.electric cable jacketing
B.conveyor ban
C.hose and doormat
D.black nylon bag
E.rubber additive
F.automatic spare parts
G.heat isolation
H.black colorant in rubber materials
