Continuous Plastic Pyrolysis plant

Plant on pyrolysis of plastics adopts the latest pyrolysis technology can be convert waste tyre to oil ,carbon black and steel wire .The main advatage of plant on pyrolysis of plastics is zero emission ,high efficiency .Plant on pyrolysis of plastics not only can solve the problem of waste tyre pollution ,but also can bring substantial benefits for you.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2
oilmachine@doinggroup.com

Chat Online Leave A Message

Plant on pyrolysis of plastics

Plant on pyrolysis of plastics adopts the latest pyrolysis technology can be convert waste tyre to oil ,carbon black and steel wire .The main advatage of plant on pyrolysis of plastics is zero emission ,high efficiency .Plant on pyrolysis of plasticsnot only can solve the problem of waste tyre pollution ,but also can bring substantial benefits for you.

Technical Data

Plant on pyrolysis of plastics technical data

Technical parameter of plant on pyrolysis of plastic
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste plastic	Waste plastic	Waste plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about plant on pyrolysis of plastics
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Application

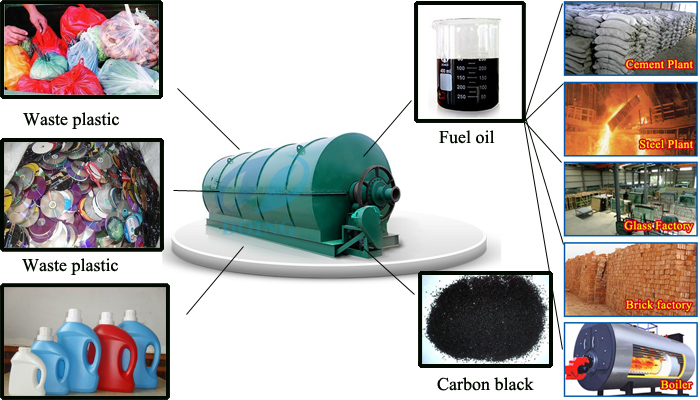

Plant on pyrolysis of plastics final product and application

Fuel Oil (40% to 45%)
The main application of oil products produced by our waste tyre oil extraction machine is the fuel oil that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.

Carbon Black Powder (30% to 35%)
The second product ofwaste tyre oil extraction machine is carbon black. The quantity of carbon black is about 30% to 35% according to tyre quality. Carbon black can application to electric cable jacketing,black nylon bag,rubber additive.
