Waste plastic recycling plant

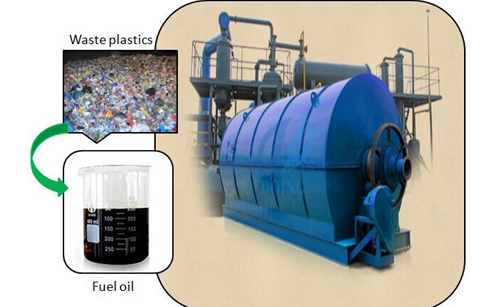

Waste plastic is a big problem for all countries, which not only cause pollution but also easily proliferate diseases thus endanger people’s life. Our waste plastic recycling plant is a green technology for waste plastic recycling.
Waste plastic can dispose waste plastics environmental friendly and bring considerable profit.
After processed by our waste plastic recycling plant, you can get fuel oil. Fuel oil is a very good heating fuel. It has wide market in different countries.
Till now, our waste plastic recycling plant has been exported to more than 30 countries, such as Italy, Romania, Turkey, Bangladesh, Nigeria, Malaysia, Mexico, Columbia, etc.
If there are many waste plastic thrown in your country, it will be a good chance for you to start the project of waste plastic recycling plant.
Welcome to contact us and get more useful information.

Technical Data

Waste plastic recycling plant technical data

Technical parameter of waste plastic recycling plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste plastic	Waste plastic	Waste plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about waste tyre recycling machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Application

Waste plastic recycling plant application

waste plastic recycling machine

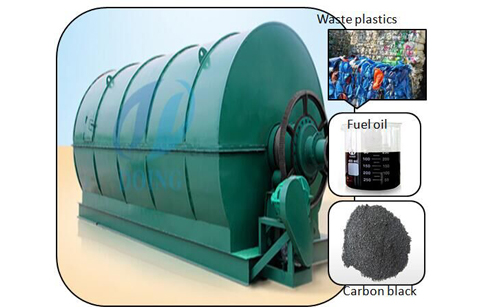

Final product of waste plastic recyclding plant

Plastic fuel oil: Oil from our waste plastic recycling machine can be used as industrial fuel materials for burning.
Carbon black: Carbon black from this waste palstic recycling machine is crude, so you can sell it to the brick factory as internal combustion or to the factory which need it as raw materials, such as shoe, tire, cable and sealant companies. You can take carbon black for deep processing.
