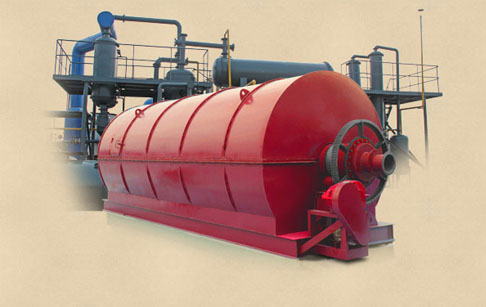

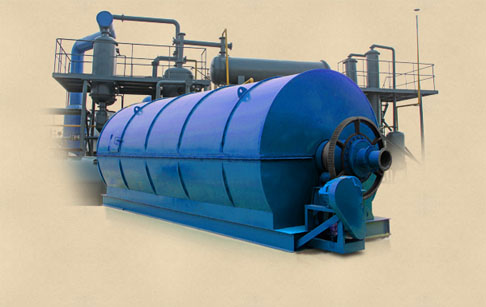

Continuous Tyre Pyrolysis plant

Waste rubber to oil machine

Continuous Tyre Pyrolysis plant

Our waste rubber to oil machine can convert waste rubber into high grade diesel fuel. Waste rubber are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During waste rubber pyrolysis, this long chain is broken down into smaller chain. The waste rubber to oil machine turns waste materials into gases and liquids. The end products can be used in any standard diesel engine or generator with little or no modifications.

Chat Online Leave A Message
1.Waste rubber to oil  machine features
rubber to oil pyrolysis plant
Our waste rubber to oil  machine can convert waste rubber into high grade diesel fuel. Waste rubber are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During waste rubber pyrolysis, this long chain is broken down into smaller chain. The waste rubber to oil  machine turns waste materials into gases and liquids. The end products can be used in any standard diesel engine or generator with little or no modifications.

In waste rubber to oil  machine, the polymer waste is not burned, instead it is broken down into usable finished products like Pyrolysis Oil, Hydrocarbon Gas and Charcoal.
2.Waste rubber to oil  machine  technical data

Technical parameter of waste rubber to oil  machine
　 Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste rubber Waste rubber Waste rubber
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85

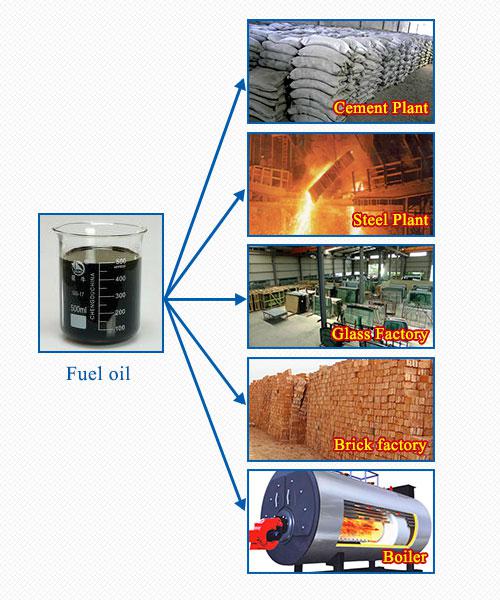

3.Waste rubber to oil  machine final product application

rubber to oil pyrolysis plant
